AM5716AABCD

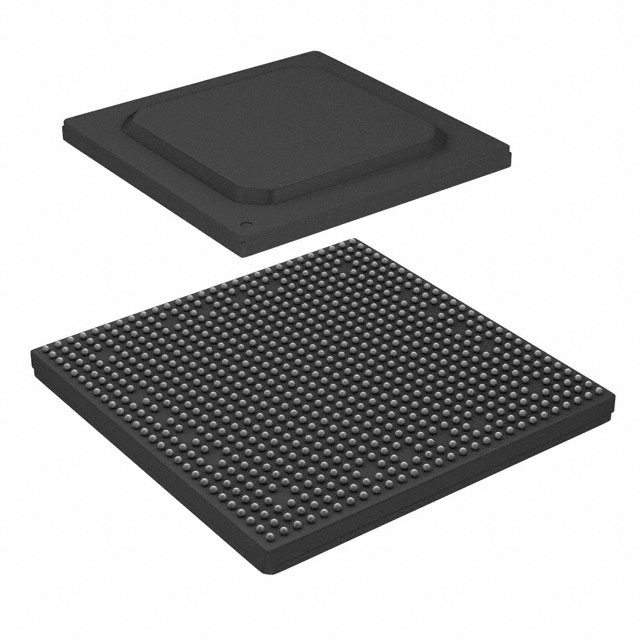

The AM5716AABCD is a Sitara™ microprocessor IC featuring a single ARM® Cortex®-A15 32-bit core running at 500 MHz in a 760-ball FCBGA (23×23) package. It targets embedded designs requiring a compact, single-core MPU with integrated I/O and multimedia co-processing.

Built with on-chip controllers for DDR3 and SRAM and a range of high-speed interfaces, the device addresses embedded, industrial and communications applications where integration and standard interfaces are required. The device is RoHS compliant and carries AEC‑Q100 qualification.

Key Features

• Core – ARM® Cortex®-A15 single 32-bit core at 500 MHz for deterministic embedded processing.
• Memory Controllers – Integrated DDR3 and SRAM controllers to support external system memory configurations.
• Co-processors & Multimedia – Includes multimedia co-processors listed as GPU, IPU and VFP to assist media and signal tasks.
• High-speed Interfaces – On-chip USB 2.0 and USB 3.0 ports plus a SATA 3 Gbps interface for peripheral and storage connectivity.
• Networking – Integrated 10/100/1000 Mbps Ethernet MAC to support gigabit networking in embedded systems.
• Automotive Qualification – Device lists AEC‑Q100 qualification.
• Package & Mounting – 760-ball FCBGA (23×23) surface-mount package (also noted as 760-BFBGA/FCBGA).
• Operating Range & Grade – Commercial grade with an operating temperature range of 0 °C to 90 °C.
• Additional Interfaces – CAN interface available for vehicle and industrial communications.
• Environmental – RoHS compliant.
• Graphics Acceleration – Graphics Acceleration reported as No.

Typical Applications

• Networking and Communications – Use the integrated 10/100/1000 Mbps Ethernet MAC for wired network endpoints and gateways.
• Embedded Storage and Media – Leverage the SATA 3 Gbps interface and multimedia co-processors for compact storage and media playback designs.
• Industrial Control and Automation – Combine the Cortex‑A15 core, CAN and standard I/O to implement control nodes and HMI controllers in embedded systems.
• Peripheral-rich Embedded Devices – USB 2.0/3.0, DDR3/SRAM support and a broad I/O set make the device suitable for device controllers and appliance intelligence.

Unique Advantages

• Single-core deterministic performance: A 500 MHz ARM® Cortex®-A15 core provides a straightforward, deterministic processing element for embedded workloads.
• Broad standard I/O: Integrated GigE, SATA and USB 3.0/2.0 reduce the need for external bridge components and simplify board-level design.
• Multimedia offload: On-chip multimedia co-processors (GPU, IPU, VFP) help offload specific media and signal tasks from the CPU core.
• Automotive-level qualification: AEC‑Q100 qualification is listed for applications requiring that level of part qualification.
• Compact BGA footprint: 760-ball FCBGA (23×23) package enables high-density board designs while supporting surface-mount assembly.
• RoHS compliant: Meets RoHS environmental requirements for lead-free assembly.

Why Choose AM5716AABCD?

The AM5716AABCD positions itself as an integrated, single-core Sitara MPU for embedded designs that require a balance of processor capability and a comprehensive I/O set. With a 500 MHz ARM® Cortex®-A15 core, DDR3/SRAM controllers, Gigabit Ethernet, SATA and USB 3.0, it supports networked and media-capable embedded systems in a compact FCBGA package.

This device is suitable for teams building embedded controllers, communications endpoints and storage-enabled appliances that value on-chip interfaces, multimedia co-processing and qualification traceability. Its RoHS compliance and AEC‑Q100 listing provide supply-chain and qualification advantages where those attributes are required.

Request a quote or submit an inquiry to learn availability, lead times and volume pricing for AM5716AABCD. Our team can provide detailed ordering information and support for your design evaluation needs.
