AM5716AABCDEA

The AM5716AABCDEA is a Sitara™ microprocessor IC featuring a single ARM® Cortex®-A15 core running at 500 MHz. Designed for embedded and industrial applications, it integrates multimedia co-processors and a broad set of peripheral interfaces to support networked and multimedia-capable designs.

With DDR3 and SRAM memory controllers, a 760-FCBGA (23x23) package, industrial temperature range and AEC-Q100 qualification, this device targets systems requiring robust thermal performance, comprehensive I/O and long-term supply chain support.

Key Features

• CPU Core Single ARM® Cortex®-A15 core at 500 MHz; 32-bit architecture for deterministic embedded processing.
• Multimedia Co-processors Includes multimedia-oriented co-processors listed as GPU, IPU and VFP to support media and signal-processing workloads.
• Memory Controllers On-chip controllers for DDR3 and SRAM to support system memory and high-bandwidth data buffering.
• High-Speed Networking Integrated 10/100/1000 Mbps Ethernet (1) for gigabit networking in connected systems.
• Storage Single SATA interface (3 Gbps) for attached storage and mass-data applications.
• USB Connectivity USB 2.0 (1) and USB 3.0 (1) ports for peripheral connectivity and high-throughput I/O.
• Automotive-Grade Qualification AEC-Q100 qualification and industrial grade designation; suitable for designs that require this supplier qualification.

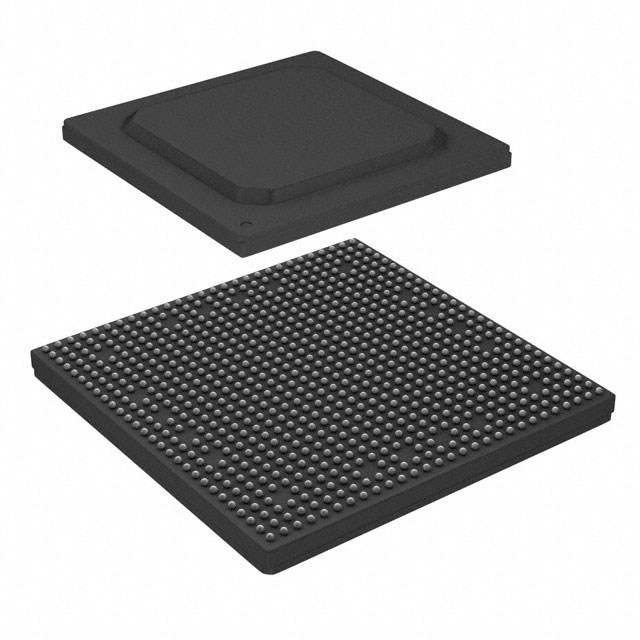

• Package & Mounting 760-FCBGA (23x23) surface-mount package for compact board-level integration.
• Additional Interfaces CAN interface support for vehicle or industrial fieldbus communication.
• Operating Range Rated for an operating temperature range of -40°C to 105°C for industrial environments.
• RoHS Compliance RoHS status: Compliant.
• Graphics Acceleration Graphics acceleration: No — no dedicated graphics acceleration is specified in the product data.

Typical Applications

• Industrial Automation Control and communication nodes that benefit from industrial-grade temperature range, CAN and gigabit Ethernet connectivity.
• Networked Embedded Systems Gateways, routers or edge devices that require Ethernet, USB 3.0 and SATA connectivity for data transport and local storage.
• Multimedia Processing Embedded multimedia appliances making use of the IPU, VFP and listed GPU co-processors for media capture and processing.
• Robust Embedded Platforms Systems requiring AEC-Q100 supplier qualification and surface-mount BGA packaging for compact, reliable deployments.

Unique Advantages

• Integrated Connectivity Built-in Ethernet, SATA, USB 2.0/3.0 and CAN reduce the need for external controllers and simplify BOM.
• Industrial and Supplier Qualification Industrial grade and AEC-Q100 qualification help address reliability and supplier qualification requirements.
• Compact BGA Package 760-FCBGA (23x23) package enables high-density board designs and surface-mount assembly.
• Media-focused Co-processors Included GPU, IPU and VFP co-processors support multimedia and signal-processing tasks alongside the Cortex-A15 core.
• Wide Operating Temperature -40°C to 105°C rating supports deployment in demanding thermal environments.
• Standards Compliance RoHS compliance supports environmental and regulatory requirements for product manufacturing.

Why Choose AM5716AABCDEA?

The AM5716AABCDEA positions a 500 MHz ARM® Cortex®-A15 processing core with multimedia co-processors and extensive I/O in a single, industrially rated package. It is suited to embedded and industrial designs that require gigabit networking, storage interfaces and qualified supply chain credentials.

For engineering teams targeting compact, robust systems with media-processing and networked I/O, this Sitara series device offers a balanced mix of integration, qualification and temperature range to support long-term deployment and scalable system designs.

Request a quote or submit an inquiry today to evaluate AM5716AABCDEA for your next embedded system design.
