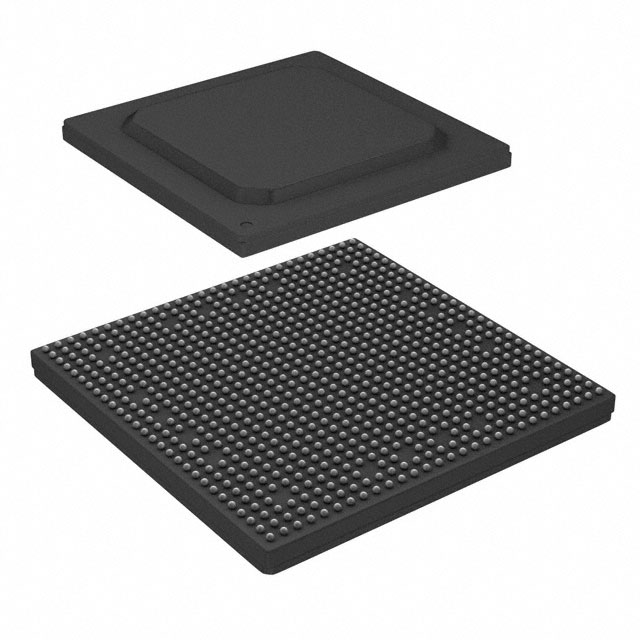

AM5716AABCXEA

The AM5716AABCXEA is a Sitara™ ARM® Cortex®-A15 microprocessor IC operating at 1.5 GHz with a single 32-bit core. Designed for embedded applications, this industrial-grade device combines processing performance with a broad set of integrated interfaces for connectivity, storage, and multimedia co-processing.

Targeted at industrial and embedded system designs, the device delivers a compact 760‑FCBGA (23×23) package, AEC‑Q100 qualification, and an extended operating temperature range suitable for demanding environments.

Key Features

• Core and Performance — ARM® Cortex®‑A15 single 32‑bit core running at 1.5 GHz, offering deterministic processing for embedded workloads.
• Multimedia and Co‑processors — Includes multimedia co‑processors listed as Multimedia, GPU, IPU and VFP to support specialized processing tasks.
• Memory Interfaces — Integrated controllers for DDR3 and SRAM memory types to support system memory and buffering requirements.
• High‑speed Connectivity — On‑chip support for Gigabit Ethernet (10/100/1000 Mbps), one SATA 3 Gbps port, USB 3.0 and USB 2.0 interfaces, and CAN for robust system communications.
• System Grade and Qualification — Industrial grade device with AEC‑Q100 qualification and RoHS compliance for regulated production environments.
• Package and Mounting — 760‑FCBGA (23×23) surface‑mount package (760‑BFBGA/FCBGA listed), enabling compact, high‑density board designs.
• Operating Range — Rated for operation from −40°C to 105°C to meet extended temperature requirements.
• Graphics Acceleration — Graphics Acceleration listed as No in the product specification.

Typical Applications

• Industrial Control & Automation — Use in embedded controllers and operator panels where industrial grade operation and extended temperature range are required.
• Networked Embedded Systems — Suitable for devices requiring Gigabit Ethernet and USB 3.0 connectivity for high‑throughput communications.
• Storage and Peripheral Controllers — Integration of SATA and multiple USB ports makes the device applicable for storage interfaces and peripheral bridging.
• Vehicle and Transportation Electronics — AEC‑Q100 qualification and CAN support enable use in transportation and other applications that require component qualification and robust communications.

Unique Advantages

• Single‑chip integration of key interfaces: Gigabit Ethernet, SATA, USB 3.0/2.0 and CAN reduce external component count and simplify board design.
• Industrial qualification and extended temperature: AEC‑Q100 qualification and −40°C to 105°C rating support deployment in harsh and regulated environments.
• Compact, high‑density package: 760‑FCBGA (23×23) enables space‑constrained layouts while accommodating a full set of system interfaces.
• Dedicated memory controllers: On‑chip DDR3 and SRAM controllers provide the necessary memory interfaces for embedded applications.
• Multimedia co‑processing: Built‑in multimedia, GPU, IPU and VFP co‑processors allow offloading specialized tasks from the main core.
• Regulatory and environmental compliance: RoHS compliance supports regulatory requirements for production and assembly.

Why Choose AM5716AABCXEA?

The AM5716AABCXEA combines a 1.5 GHz ARM® Cortex®‑A15 core with integrated memory controllers and a broad set of connectivity options in a compact 760‑FCBGA package. Its industrial grade classification, AEC‑Q100 qualification, and extended temperature range make it suitable for embedded designs that demand reliability and interface density.

This part is well suited to engineers developing industrial, transportation, and networked embedded systems that require a single‑chip MPU solution with on‑board support for Ethernet, SATA, USB and CAN, alongside multimedia co‑processing capabilities.

Request a quote or submit a purchase inquiry to get pricing, availability, and volume options for the AM5716AABCXEA.
