AM5716AABCXA

The AM5716AABCXA is a Sitara™ microprocessor IC based on an ARM® Cortex®-A15 core, operating at 1.5 GHz in a 760-FCBGA (23×23) package. It is designed for embedded and industrial applications that require a high-performance single 32-bit core with integrated peripheral support.

With on-chip memory controllers, a range of connectivity options and industrial-grade qualifications, this device targets applications that need robust operation across a wide temperature range and integrated I/O for multimedia and networking subsystems.

Key Features

• Core ARM® Cortex®-A15 single 32-bit core running at 1.5 GHz for high single-thread processing performance.
• Memory Integrated controllers for DDR3 and SRAM to support system and application memory requirements.
• Co-processors and Signal Engines Listed co-processors include multimedia, GPU, IPU and VFP to support media and signal processing tasks.
• Connectivity Single Gigabit Ethernet (10/100/1000 Mbps) and CAN interface provide wired networking options for embedded systems.
• Storage and USB On-chip SATA 3 Gbps interface and both USB 2.0 and USB 3.0 ports enable storage and high-speed peripheral connectivity.
• Graphics Acceleration Graphics acceleration is listed as No in the device specifications.

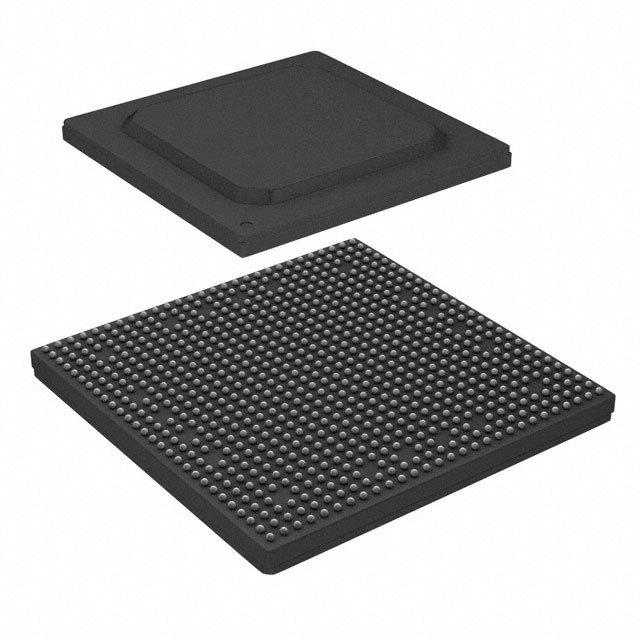

• Package and Mounting 760-FCBGA (23×23) supplier device package; surface-mount BGA implementation for compact board integration.
• Industrial Grade and Qualification Grade: Industrial; Qualification: AEC-Q100, supporting use in qualified industrial and applicable automotive contexts.
• Operating Range Specified operating temperature range from −40 °C to 105 °C for extended-temperature deployments.

Typical Applications

• Industrial Automation Embedded controllers and automation nodes that require industrial temperature operation and CAN or Ethernet connectivity.
• Networked Embedded Systems Gateways and protocol translators leveraging Gigabit Ethernet and USB 3.0 connectivity for data transfer and interfacing.
• Media-enabled Embedded Devices Systems that use on-chip multimedia co-processors, IPU and VFP for media handling and signal processing.
• Storage-enabled Appliances Embedded products requiring SATA 3 Gbps and USB interfaces for local storage, logging, or content distribution.

Unique Advantages

• High single-core clock rate: 1.5 GHz ARM Cortex-A15 core provides strong single-thread execution for control and application code.
• Comprehensive I/O mix: Integrated Gigabit Ethernet, SATA, USB 2.0/3.0 and CAN reduce external component count and simplify board design.
• Industrial qualification: Industrial grade with AEC-Q100 qualification and −40 °C to 105 °C operating range supports reliable deployment in demanding environments.
• Memory flexibility: DDR3 and SRAM controller support allows designers to select memory architectures that match system requirements.
• Compact surface-mount package: 760-FCBGA (23×23) package enables dense PCB designs while providing required I/O pinout.
• Multimedia and signal processing support: On-chip multimedia, GPU, IPU and VFP co-processor listings provide dedicated resources for media and compute offload.

Why Choose AM5716AABCXA?

The AM5716AABCXA positions itself as a single-core Sitara solution that balances processor performance, integrated connectivity and industrial robustness. Its combination of a 1.5 GHz ARM® Cortex®-A15 core, broad peripheral set and industrial/AEC-Q100 qualification makes it suitable for embedded designs that demand reliable operation across extended temperatures and streamlined system integration.

Designers targeting industrial automation, networked embedded systems, media-enabled devices or storage-capable appliances will find the AM5716AABCXA provides a compact, well-connected building block with on-chip memory interfaces and a full complement of wired I/O.

Request a quote or submit an inquiry to get pricing and availability for the AM5716AABCXA.
