AM5716AABCXEQ1

The AM5716AABCXEQ1 is an ARM® Cortex®-A15 Sitara™ microprocessor from Texas Instruments' Sitara AM57xx series. It is a single-core, 32-bit MPU running at 1.5 GHz and integrates multimedia coprocessors and graphics acceleration for embedded systems.

Targeted for designs that require robust connectivity and automotive-grade reliability, this device offers on-chip controllers for DDR3 and SRAM, high-speed interfaces including Gigabit Ethernet, USB 3.0, and SATA, and is qualified to AEC‑Q100 with an operating range of −40°C to 125°C.

Key Features

• Core  ARM® Cortex®-A15 single-core, 32-bit processor running at 1.5 GHz for deterministic application processing.
• Multimedia and Coprocessors  Includes multimedia coprocessors and support for GPU, IPU and VFP to offload graphics and media tasks from the CPU.
• Memory Controllers  On-chip controllers for DDR3 and SRAM provide direct support for common embedded memory architectures.
• High-Speed Interfaces  Integrated USB 2.0 and USB 3.0, plus SATA 3 Gbps, enable fast peripheral and storage connectivity.
• Networking  Single Gigabit Ethernet (10/100/1000 Mbps) interface for high-throughput network connectivity.
• Vehicle and Industrial Connectivity  Includes CAN interface for vehicle and industrial network integration.

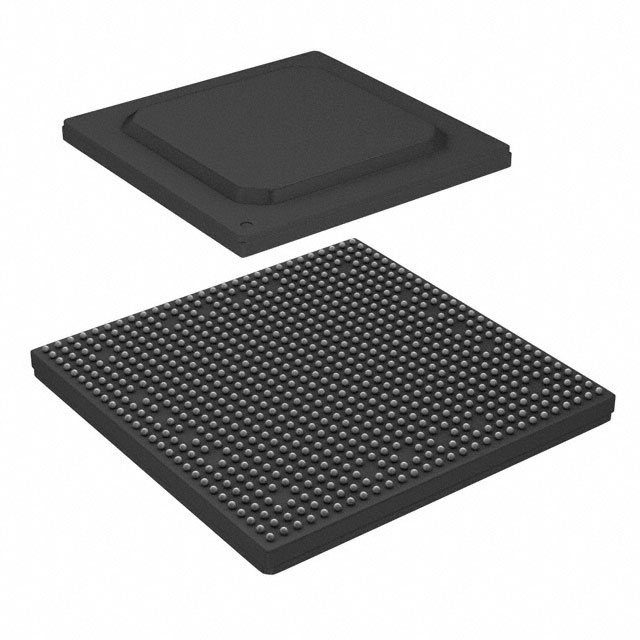

• Package and Mounting  760-FCBGA (23×23) surface-mount package (760-BFBGA, FCBGA documented) for compact board-level integration.
• Automotive Qualification and Temperature Range  AEC‑Q100 qualification with an operating temperature range of −40°C to 125°C for automotive and harsh-environment applications.
• RoHS Compliance  RoHS compliant to meet environmental and regulatory requirements.

Typical Applications

• Automotive Infotainment  Leverages AEC‑Q100 qualification, graphics acceleration and high-speed I/O (USB 3.0, SATA, Gigabit Ethernet) to support multimedia and connectivity in vehicle infotainment systems.
• Telematics and Gateway  CAN and Gigabit Ethernet interfaces enable in-vehicle networking and telematics gateway functions requiring reliable communication links.
• Industrial HMI  Graphics acceleration and wide operating temperature range make the device suitable for human-machine interfaces that require visual displays in harsh environments.
• Embedded Storage and Peripheral Controllers  Integrated SATA and USB 3.0 combine with on-chip memory controllers to support embedded systems that need local storage and fast peripheral access.

Unique Advantages

• AEC‑Q100 Automotive Qualification: Provides an automotive-grade qualification baseline for designs that require recognized part qualification.
• Balanced Compute and Multimedia: Single 1.5 GHz Cortex‑A15 core plus multimedia coprocessors and GPU/IPU/VFP support offloads media tasks while preserving CPU resources.
• Rich Connectivity: Integrated Gigabit Ethernet, USB 3.0/2.0, SATA 3 Gbps and CAN interfaces reduce external component count and simplify board design.
• Memory Flexibility: DDR3 and SRAM controllers on chip enable straightforward memory subsystem implementation for performance-sensitive applications.
• Wide Temperature Range: Rated for −40°C to 125°C operation, suitable for automotive and industrial environments.
• Compact BGA Footprint: 760-FCBGA (23×23) package supports high-density board designs while providing necessary I/O pinout.

Why Choose AM5716AABCXEQ1?

The AM5716AABCXEQ1 combines a 1.5 GHz ARM® Cortex®-A15 core with dedicated multimedia coprocessors, extensive high-speed interfaces, and automotive-grade qualification, making it suitable for embedded designs that require both compute and media capabilities under demanding environmental conditions. As a member of Texas Instruments' Sitara AM57xx series, it integrates key system functions—memory controllers, networking, storage and vehicle interfaces—into a single package to streamline BOM and board design.

This part is ideal for engineers developing automotive infotainment, telematics, industrial HMIs, and embedded storage controller applications that need predictable performance, broad I/O, and a qualified device that meets temperature and reliability requirements.

Request a quote or submit a request for pricing and availability to evaluate the AM5716AABCXEQ1 for your next embedded or automotive design.
