AM5716AABCXQ1

The AM5716AABCXQ1 is a Sitara™ microprocessor from Texas Instruments featuring a single ARM® Cortex®‑A15 core running at 1.5 GHz. It is a 32‑bit embedded MPU designed for integrated multimedia and connectivity roles within the Sitara AM57xx family.

Targeted at embedded and automotive applications, this device combines a high‑speed application core with on‑chip multimedia accelerators and a broad set of I/O and memory controllers to simplify system design and deliver scalable performance in demanding temperature environments.

Key Features

• Processor Core — Single ARM® Cortex®‑A15 32‑bit core operating at 1.5 GHz for application processing.
• Multimedia and Accelerators — Integrated multimedia co‑processors including GPU, IPU and VFP to offload graphics and media tasks.
• Memory Controllers — On‑chip support for DDR3 and SRAM memory controllers to interface with external system memory.
• High‑Speed Networking & Storage — 10/100/1000 Mbps Ethernet (1) and SATA 3 Gbps (1) for wired networking and storage connectivity.
• USB and Peripheral Interfaces — USB 2.0 (1), USB 3.0 (1) and CAN interface for broad peripheral and vehicle network support.

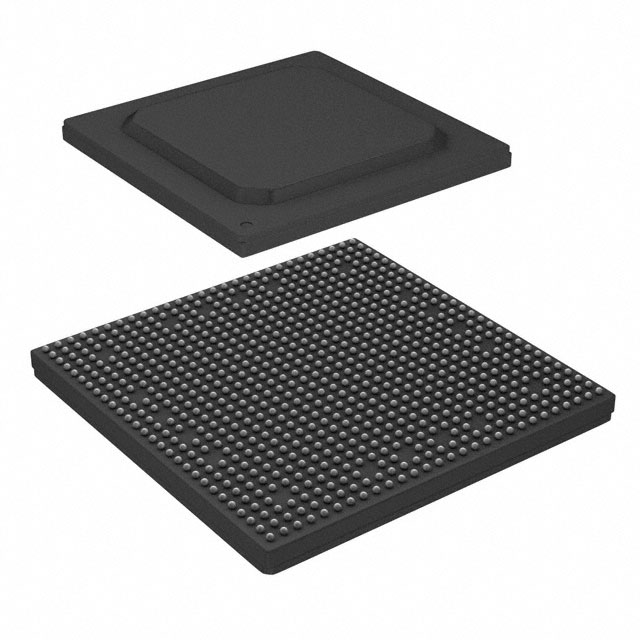

• Package and Mounting — 760‑ball FCBGA package (760‑FCBGA, 23×23) optimized for surface‑mount assembly.
• Automotive Qualification & Temperature Range — AEC‑Q100 qualification with operating range of −40°C to 125°C for automotive and harsh industrial environments.
• Compliance — RoHS compliant for environmental regulatory alignment.

Typical Applications

• Automotive Systems — Engineered for automotive and vehicle domains where AEC‑Q100 qualification and wide temperature range are required.
• Embedded Control & Industrial Automation — Single‑core processing with real‑time I/O and network interfaces for control, monitoring and gateway functions.
• Multimedia & Human‑Machine Interfaces — On‑chip GPU and IPU accelerate graphics and video tasks for displays and infotainment subsystems.
• Networking & Storage Appliances — Integrated Gigabit Ethernet and SATA support for embedded networked storage and communication nodes.

Unique Advantages

• High‑performance Cortex‑A15 core: 1.5 GHz single‑core processing provides responsive application performance for compute‑intensive embedded tasks.
• Integrated multimedia accelerators: GPU, IPU and VFP reduce host CPU load for graphics and media processing, simplifying system partitioning.
• Comprehensive connectivity: Gigabit Ethernet, SATA, USB 3.0/2.0 and CAN deliver versatile I/O options for networked, storage and vehicle systems.
• Automotive‑grade reliability: AEC‑Q100 qualification and −40°C to 125°C operating range support deployment in automotive and harsh environments.
• Compact, manufacturable package: 760‑FCBGA (23×23) surface‑mount package supports high‑density PCB designs and production assembly.
• Regulatory readiness: RoHS compliance for streamlined environmental conformity in product builds.

Why Choose AM5716AABCXQ1?

The AM5716AABCXQ1 positions itself as an integrated, automotive‑qualified Sitara MPU that balances single‑core application performance with dedicated multimedia accelerators and a wide set of connectivity options. Its combination of a 1.5 GHz Cortex‑A15 core, memory controller support, and high‑speed interfaces enables compact system designs for embedded, automotive and industrial applications.

Backed by the Sitara AM57xx series pedigree and Texas Instruments manufacturing, this device is suited for engineers building rugged, connected systems that require predictable thermal performance, proven qualification, and reduced integration overhead.

If you would like pricing, availability or to request a quote for AM5716AABCXQ1, submit an inquiry or request a quote through your preferred procurement channel.
