AM5746ABZXA

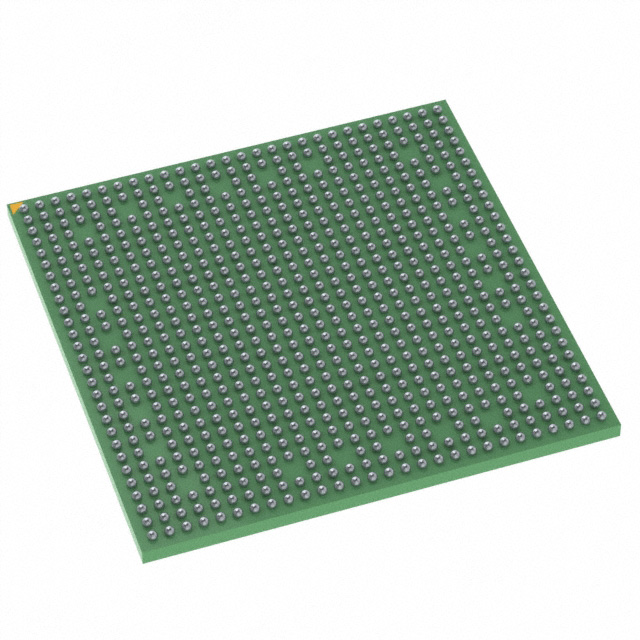

The AM5746ABZXA is a Sitara™ microprocessor IC featuring an ARM® Cortex®-A15 core running at 1.5 GHz in a 760-FCBGA (23×23) package. Designed for embedded and industrial applications, this device integrates compute, multimedia, connectivity and security capabilities in a single, surface-mount package.

With industrial-grade qualification and an extended operating range, the AM5746ABZXA targets systems that require performance, robust interfacing and hardware-based security for sustained operation in demanding environments.

Key Features

• CPU Core  Single ARM® Cortex®-A15 core, 32-bit at 1.5 GHz for application-level processing.
• Co-processors  Integrated secondary processors including ARM® Cortex®-M4 and C66x for offloaded real-time and DSP tasks.
• Memory Interfaces  DDR3 and DDR3L memory controller support for system memory connectivity.
• Display and Multimedia  On-chip display interface controllers for HDMI, LCD and video, plus graphics acceleration.
• High-speed Storage & USB  SATA 3 Gbps (1) and USB 3.0 (2) plus USB 2.0 (2) provide flexible local storage and peripheral connectivity.
• Networking and Fieldbus  Dual Gigabit Ethernet (2) interfaces and CAN support for industrial networking and control.
• Security  ARM TrustZone, boot security, cryptography, Secure JTAG and secure RTC to support hardware-enforced device security.
• Package & Mounting  760-ball FCBGA package (760-FCBGA, 23×23) designed for surface-mount assembly.
• Industrial Qualification & Temperature Range  AEC-Q100 qualification and operation from −40 °C to 105 °C for industrial deployment.
• RoHS Compliance  Device is RoHS compliant.

Typical Applications

• Industrial Automation  Real-time control and networking in industrial systems using CAN, dual GbE and on-chip security.
• Human-Machine Interfaces (HMI)  Graphical user interfaces and display-driven controls leveraging HDMI/LCD interfaces and graphics acceleration.
• Imaging and Video Processing  Video capture and processing applications using the video display controllers and DSP co-processor resources.
• Embedded Gateways and Networking Appliances  Edge devices requiring multiple high-speed I/O options—Ethernet, USB and SATA—for data aggregation and storage.

Unique Advantages

• Balanced Compute and DSP Offload: Combination of a 1.5 GHz Cortex‑A15 core with Cortex‑M4 and C66x co-processors lets designs partition tasks for efficiency and deterministic processing.
• Comprehensive Connectivity: Integrated GbE, USB 3.0/2.0, SATA and CAN reduce external component count and simplify board-level integration.
• Integrated Multimedia Support: HDMI, LCD and video controllers with graphics acceleration support rich UIs and video-centric applications without separate GPU solutions.
• Hardware Security Suite: ARM TrustZone, cryptography, secure boot and Secure JTAG provide layered security mechanisms for protected device operation and trusted boot flows.
• Industrial-ready Qualification: AEC-Q100 qualification combined with −40 °C to 105 °C operation enables deployment in temperature-stressed industrial environments.
• Compact, Surface-Mount Packaging: 760-FCBGA (23×23) package supports high-density system designs while maintaining robust connectivity options.

Why Choose AM5746ABZXA?

The AM5746ABZXA positions itself as a capable embedded processor for industrial and advanced embedded systems that need a mix of application processing, DSP acceleration, rich multimedia I/O and hardware security. Its integration of multiple high-speed interfaces and co-processors helps reduce BOM complexity while delivering a platform suited to HMI, imaging, automation and gateway designs.

For teams targeting long-term, scalable deployments, the device’s industrial qualification, extended temperature range and on-chip security features contribute to system reliability and maintainability across demanding operating conditions.

Request a quote or contact sales to discuss availability, pricing and how AM5746ABZXA can fit into your next embedded design.
