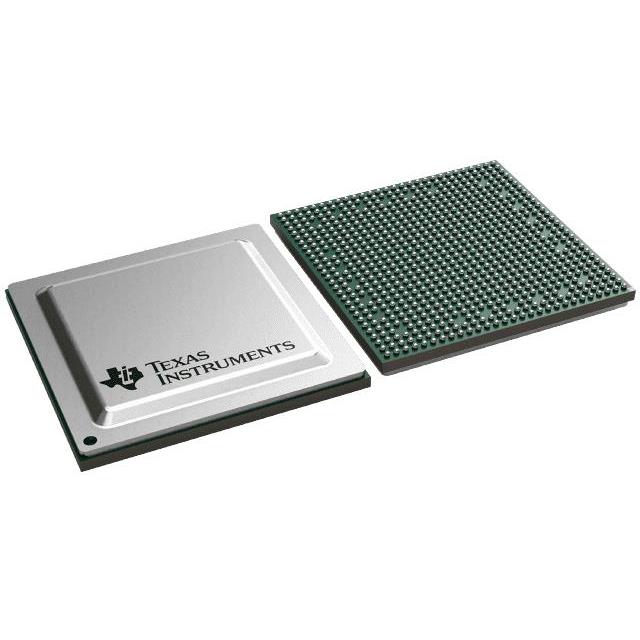

DRA724JGABCRQ1

IC MPU DRA72X CORTEX-A15 760BGA

Part Description	ARM® Cortex®-A15 Microprocessor IC DRA72x 1 Core, 32-Bit 750MHz 760-FCBGA (23x23)
Quantity	1,233 Available (as of October 8, 2026)

Product Category	Microprocessors
Part Series	Jacinto DRA72x
Manufacturer	Texas Instruments
Manufacturing Status	Active
Manufacturer Standard Lead Time	26 Weeks
Datasheet	Download Datasheet

Specifications & Environmental

Co-Processors/DSP	ARM® Cortex®-M4, BB2D, C66x, GPU, IVA	Core Processor	ARM® Cortex®-A15	Device Package	760-FCBGA (23x23)
Display & Interface Controllers	HDMI, LCD	ECCN	N/A	Ethernet	10/100/1000Mbps (1), 1Gbps (2)
Grade	Automotive	Graphics Acceleration	Yes	HTS Code	N/A
Moisture Sensitivity Level	3 (168 Hours)	Mounting Method	Surface Mount	Mounting Type	Surface Mount
Number of Cores/Bus Width	1 Core, 32-Bit	Operating Temperature	-40°C ~ 125°C (TJ)	Package / Case	760-BFBGA, FCBGA
Qualification	AEC-Q100	RAM Controllers	DDR3, DDR3L	REACH Compliance	REACH Unknown
RoHS Compliance	ROHS3 Compliant	SATA	SATA	Security Features	Cryptography, Debug Security, Device Identity, Isolation Firewalls, Secure Boot, Secure Storage, Software IP Protection
Speed	750MHz	Supplier Device Package	760-FCBGA (23×23)	USB	USB 2.0 (2), USB 3.0 (1)
Voltage – I/O	1.35V, 1.5V, 1.8V, 3.3V

Overview of DRA724JGABCRQ1 – IC MPU DRA72X CORTEX-A15 760BGA

The DRA724JGABCRQ1 is an ARM® Cortex®-A15 based microprocessor from Texas Instruments' Jacinto DRA72x series. It provides a single 32-bit Cortex‑A15 core running at 750 MHz and is built for advanced infotainment and automotive embedded applications.

Designed with multimedia, graphics and real-time processing in mind, the device integrates multiple co‑processors and interfaces to support HMI, navigation, rear-seat entertainment and ADAS integration while meeting automotive qualification requirements.

Key Features

Core and Performance The device features an ARM® Cortex®-A15 microprocessor core running at 750 MHz (single 32‑bit core) suitable for application processing in infotainment systems.
Co‑processors and Acceleration Integrated co‑processors include ARM® Cortex®-M4 IPUs, C66x DSP, BB2D 2D graphics accelerator, IVA subsystem, and a PowerVR™ SGX544 3D GPU for video, image and graphics processing.
Memory and Storage Supports DDR3/DDR3L external memory controllers and up to 2 GB across a single chip select as described for the DRA72x family; includes up to 512 KB on‑chip L3 RAM.
Display and Video Display controller with DMA, up to three pipelines, HDMI encoder compliant with HDMI 1.4a/DVI 1.0, Video Processing Engine (VPE) and Video Input Port (VIP) support full‑HD video (1920 × 1080p, 60 fps) and multiple video I/O options.
Connectivity and Peripherals Extensive I/O including SATA, SuperSpeed USB 3.0 (dual‑role), USB 2.0 (dual‑role and OTG), multiple Gigabit Ethernet ports (2‑port switch), PCIe lanes, MIPI CSI‑2, MMC/SD/SDIO, CAN 2.0B and numerous UART/I2C/SPI/QSPI/McASP interfaces.
Security and System Protection Hardware security features include cryptographic accelerators and DMA, secure boot, secure storage, device identity, isolation firewalls, JTAG lock and customer programmable keys (Silicon Revision 2.1).
Package and Temperature Automotive‑grade 760‑pin FCBGA (23 mm × 23 mm, 0.8 mm pitch) package with operating temperature range of −40°C to 125°C and AEC‑Q100 qualification.
Real‑Time and System Services Integrated peripherals for real‑time control including EDMA, timers, watchdog, RTC subsystem, and on‑chip debug with CTools technology.

Typical Applications

Human‑Machine Interface (HMI) Drives responsive infotainment user interfaces with integrated display pipelines, GPU acceleration and multimedia support.
Navigation Systems Provides application processing, graphics and multiple I/O options suitable for in‑vehicle navigation and map rendering subsystems.
Rear‑Seat Entertainment Supports Full‑HD video playback, multiple video inputs/outputs and audio interfaces for passenger multimedia systems.
ADAS and Integration Used for ADAS integration and Jacinto 6 system pairing with image processing units, DSP cores and broad sensor/camera interface support.

Unique Advantages

Highly integrated multimedia platform: Combines CPU, DSPs, GPU, IVA and video engines to consolidate multimedia processing and reduce system complexity.
Automotive‑grade design: AEC‑Q100 qualification and −40°C to 125°C operating range enable deployment in automotive environments.
Broad connectivity: Native support for USB 3.0, USB 2.0, SATA, multi‑port Gigabit Ethernet, PCIe and MIPI CSI‑2 simplifies system-level integration.
Security built in: Hardware crypto, secure boot, secure storage and isolation firewalls provide layered device protection for connected systems.
Compact system footprint: 760‑pin FCBGA (23 mm × 23 mm) package supports high I/O density in space‑constrained automotive PCBs.
Real‑time and developer support: On‑chip debug with CTools technology and dedicated real‑time peripherals accelerate development and bring‑up.

Why Choose DRA724JGABCRQ1?

The DRA724JGABCRQ1 positions itself as a purpose‑built infotainment and automotive application processor combining a Cortex‑A15 core with a comprehensive set of accelerators, co‑processors and high‑speed interfaces. Its integration of multimedia, graphics, DSP and security blocks reduces BOM count and simplifies single‑chip system design.

Designed for engineers developing automotive HMI, navigation, multimedia and ADAS‑adjacent functions, this Jacinto DRA72x series device offers automotive qualification, broad peripheral support and chipset‑level security to help deliver robust, scalable in‑vehicle solutions backed by Texas Instruments' platform lineage.

Request a quote or submit an inquiry to our sales team for pricing and availability of the DRA724JGABCRQ1.
