DRA725AGGABCRQ1

The DRA725AGGABCRQ1 is an ARM® Cortex®-A15 based microprocessor IC in the Jacinto DRA72x family, offering a single 32-bit Cortex-A15 core running at 750 MHz. It is designed for embedded infotainment and automotive-grade applications that require integrated multimedia, graphics and security capabilities.

With hardware accelerators, multiple co‑processors and broad peripheral support, this device targets human‑machine interfaces, navigation, multimedia playback and related automotive infotainment systems where integration and thermal/qualification robustness are important.

Key Features

• Core Single ARM® Cortex®-A15 32-bit core at 750 MHz for control and application processing.
• Co‑processors and Acceleration Includes ARM® Cortex®-M4 IPUs, BB2D 2D graphics, C66x DSP cores, IVA subsystem and a 3D GPU for video, image and graphics processing.
• Memory and On‑Chip RAM DDR3/DDR3L external memory controller support and up to 512 KB of on‑chip L3 RAM as documented for the DRA72x series.
• Video and Display Full‑HD video support (1920 × 1080p, 60 fps), display controller with DMA and multiple pipelines, and HDMI/DVI encoder compliance as provided in the series specification.
• Connectivity and Interfaces Rich peripheral set including HDMI, LCD, USB 3.0 (1), USB 2.0 (2), SATA, PCIe lanes, multiple UARTs, I²C, SPI, MMC/SD/SDIO and HDQ/1‑Wire interface.
• Networking Integrated Ethernet capabilities including 10/100/1000 Mbps and additional 1 Gbps ports as specified for the device.
• Security Hardware cryptography accelerators, secure boot, secure storage, device identity and isolation firewalls for enhanced device and software protection.
• Automotive Qualification & Temperature Range AEC‑Q100 qualification and an operating temperature range of −40 °C to 125 °C for automotive use cases.

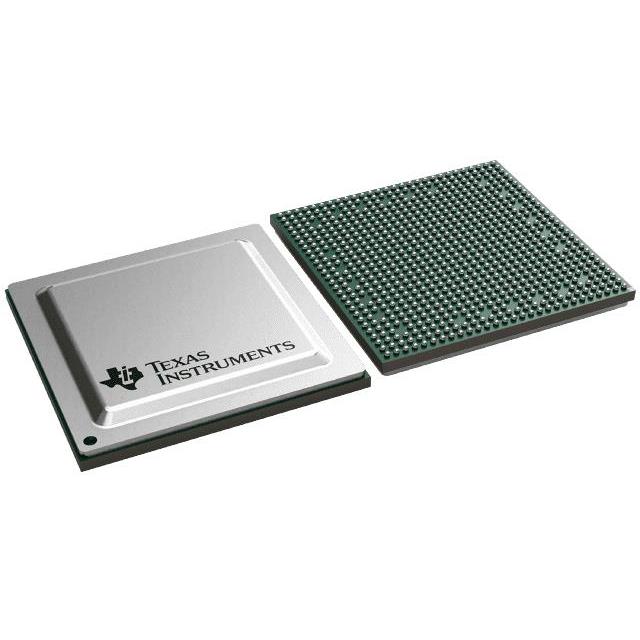

• Package & Mounting 760‑pin FCBGA (23 × 23 mm) surface‑mount package, 0.8 mm pitch as specified for the DRA72x family.
• Standards and Process Implemented in 28‑nm CMOS technology as documented for the series.
• Environmental Compliance RoHS compliant.

Typical Applications

• Human‑Machine Interface (HMI) — Drives vehicle instrument clusters and infotainment touchscreens with integrated graphics and video pipelines.
• Navigation Systems — Supports map rendering and multimedia integration with on‑chip graphics acceleration and external memory interfaces.
• In‑Vehicle Multimedia & Rear‑Seat Entertainment — Handles Full‑HD video playback, multiple video inputs/outputs and audio interfaces for rich multimedia experiences.
• Radio and Audio Systems — Enables digital and analog radio decoding and multichannel audio through integrated audio interfaces.
• ADAS Integration — Provides image processing units and DSP resources to support advanced driver assistance system data streams and Jacinto 6 integration scenarios described in the series documentation.

Unique Advantages

• Highly integrated multimedia platform: On‑chip video engines, 2D/3D graphics and image processing units reduce external IC count and simplify multimedia system design.
• Automotive‑ready qualification: AEC‑Q100 qualification and an extended −40 °C to 125 °C operating range support deployment in automotive environments.
• Comprehensive connectivity: USB 3.0, USB 2.0, SATA, PCIe, multiple Ethernet ports and abundant serial interfaces provide flexible I/O for complex infotainment and telematics systems.
• Security built in: Hardware crypto, secure boot and isolation firewalls help protect device identity, software IP and stored data.
• Scalable processing resources: Combination of Cortex‑A15 application core with Cortex‑M4 IPUs and C66x DSPs enables partitioning of workload across general‑purpose and specialized engines.
• Automotive package density: 760‑pin FCBGA in a 23 × 23 mm footprint delivers high pin count for interfaces while fitting automotive board constraints.

Why Choose DRA725AGGABCRQ1?

The DRA725AGGABCRQ1 positions itself as a purpose‑built, automotive‑grade infotainment processor that combines a Cortex‑A15 application core with a suite of co‑processors and hardware accelerators for graphics, video and signal processing. Its extensive peripheral set and security features make it suitable for integrated HMI, navigation and multimedia systems requiring qualification and extended temperature operation.

This device is appropriate for designs that need high integration of multimedia and connectivity, robust security primitives, and automotive qualification for deployment in production vehicles or similarly demanding embedded environments.

Request a quote or submit an inquiry to receive pricing and availability information for DRA725AGGABCRQ1.
