DRA725AGGABCQ1

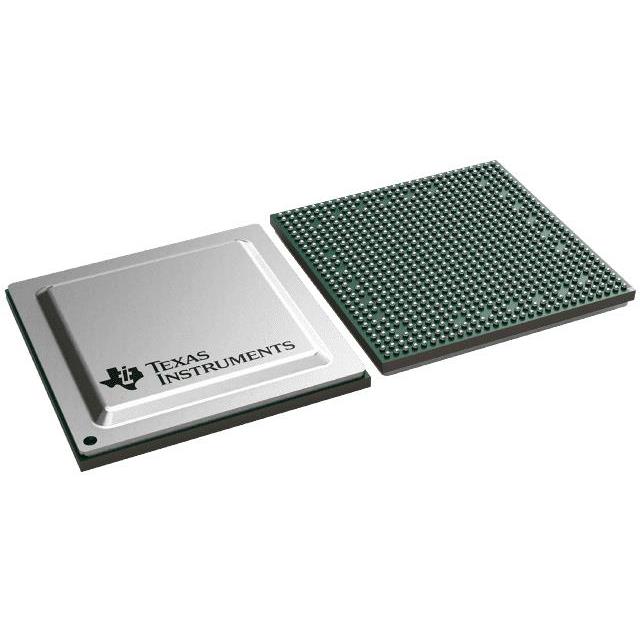

The DRA725AGGABCQ1 is a single-core ARM® Cortex®-A15 microprocessor IC from the Jacinto DRA72x family, running at 750 MHz in a 760‑FCBGA (23 mm × 23 mm) package. It is designed for high‑performance infotainment and multimedia applications, integrating processor, graphics, video, and a broad set of peripheral controllers.

With automotive grade qualification (AEC‑Q100) and an extended operating temperature range of −40°C to 125°C, this device targets embedded systems that require multimedia processing, extensive I/O, and security features in rugged environments.

Key Features

• Core & processing  ARM® Cortex®‑A15 single 32‑bit core at 750 MHz, complemented by coprocessors including ARM® Cortex®‑M4, BB2D, C66x DSP cores, a GPU and IVA subsystems for heterogeneous compute.
• Memory & storage  DDR3/DDR3L memory controller support and on‑chip L3/L4 interconnects; external memory interface supports up to DDR3‑1333 (per device family data).
• Graphics & video  Full‑HD video support, 2D and 3D graphics acceleration (including a PowerVR SGX544 3D GPU and Vivante GC320 2D core in family documentation), display controller with DMA, and HDMI/DVI encoder capability.
• Interfaces & connectivity  Rich I/O including HDMI, LCD, USB 3.0 (SuperSpeed) and USB 2.0, SATA, PCIe lanes, multiple Gigabit Ethernet ports (10/100/1000 Mbps), MIPI CSI‑2, multiple UART/I2C/SPI/QSPI/MMC/SD interfaces and 1‑Wire®/HDQ.
• Audio & multimedia peripherals  IVA‑HD subsystem, Video Processing Engine (VPE), Video Input Port (VIP), and multiple McASP audio serial ports for comprehensive multimedia handling.
• Security & system reliability  Device security features including hardware cryptography accelerators, debug security (JTAG lock), device identity, isolation firewalls, secure boot, secure storage, and customer programmable keys (per silicon revision notes).
• Timers, DMA & system services  Enhanced DMA controllers, multiple 32‑bit general‑purpose timers, MPU watchdog timer, real‑time clock subsystem, and power/reset/clock management blocks.
• Package & temperature  760‑pin FCBGA package (23 mm × 23 mm, 0.8 mm pitch) with surface‑mount mounting and an operating range of −40°C to 125°C suitable for demanding embedded environments.
• Qualification  Automotive grade device with AEC‑Q100 qualification listed in the product specifications.

Typical Applications

• Human‑Machine Interface (HMI)  Drives responsive, graphics‑rich user interfaces using the Cortex‑A15 core combined with 2D/3D graphics and display controller resources.
• In‑vehicle Infotainment & Navigation  Supports multimedia playback, multiple video inputs/outputs and HDMI/DVI connectivity for navigation and entertainment systems.
• Rear Seat Entertainment & Multimedia Playback  Full‑HD video capability, IVA and VPE subsystems, and extensive audio interfaces enable in‑vehicle multimedia features.
• Radio & Digital Audio Processing  Suitable for AM/FM/RDS and digital radio decoding using integrated DSP and audio serial interfaces.
• ADAS Integration  Integration with higher‑level automotive subsystems (Jacinto‑family integration noted) where multimedia, camera input and Ethernet/PCIe connectivity are required.

Unique Advantages

• Highly integrated multimedia platform: Combines Cortex‑A15 processing with DSP, IVA, GPU and dedicated video engines to reduce external component needs for infotainment designs.
• Comprehensive I/O and connectivity: Wide range of high‑speed interfaces (USB 3.0, SATA, PCIe, Gigabit Ethernet, MIPI CSI‑2) to support diverse peripheral and networking requirements.
• Automotive‑grade qualification: AEC‑Q100 qualification and −40°C to 125°C operating range make the device suitable for automotive and other harsh‑environment embedded applications.
• Robust security features: Hardware cryptography, secure boot, secure storage and isolation firewalls help protect device identity and system integrity.
• Scalable family features: Part of the Jacinto DRA72x series with documented family capabilities such as DDR3‑1333 support, multiple DSP cores and extensive peripheral integration for platform scalability.

Why Choose DRA725AGGABCQ1?

The DRA725AGGABCQ1 positions itself as a purpose‑built infotainment and multimedia microprocessor offering a balanced combination of CPU performance, dedicated multimedia accelerators, and broad peripheral integration. Its automotive qualification and extended temperature range support deployment in demanding embedded systems.

Engineers designing HMI, navigation, in‑vehicle entertainment or other multimedia‑centric embedded platforms will find a single, documented device family with on‑chip security, extensive I/O, and processing heterogeneity that simplifies system architecture and reduces BOM complexity.
