DRA746BPGABCQ1

The DRA746BPGABCQ1 is an ARM® Cortex®-A15 based microprocessor from the Jacinto DRA74x series. It integrates two 32-bit Cortex-A15 cores running at up to 1.5 GHz and a set of co-processors to address mixed compute, control and multimedia workloads.

Designed for embedded and automotive systems, this device combines high-performance processing, broad I/O and connectivity options, and security capabilities to support advanced infotainment, networking and control applications in harsh operating environments.

Key Features

• Core and Performance  Dual ARM® Cortex®-A15 cores at 1.5 GHz provide the primary application processing capability for compute-intensive embedded tasks.
• Co-processors and Acceleration  Integrated co-processors include an ARM® Cortex®-M4, BB2D, GPU and IVA to offload real-time control, 2D/3D graphics and multimedia acceleration.
• Memory Support  On-chip memory controller support for DDR2, DDR3 and DDR3L enables flexible system memory configurations.
• Display and Graphics  Display interface controllers for HDMI and LCD plus graphics acceleration support modern display and HMI implementations.
• High-performance Storage and USB  SATA support and multiple USB ports (three USB 2.0 and one USB 3.0) enable high-bandwidth storage and peripheral connectivity.
• Ethernet and CAN Networking  Multiple Ethernet interfaces (10/100/1000Mbps (1), 1Gbps (2)) and DCANbus expand networking and in-vehicle communication options.
• Security Features  Built-in cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection address platform security requirements.
• Automotive Grade and Qualification  Grade is listed as Automotive with AEC-Q100 qualification, and an operating temperature range of −40°C to 125°C supports deployment in automotive environments.

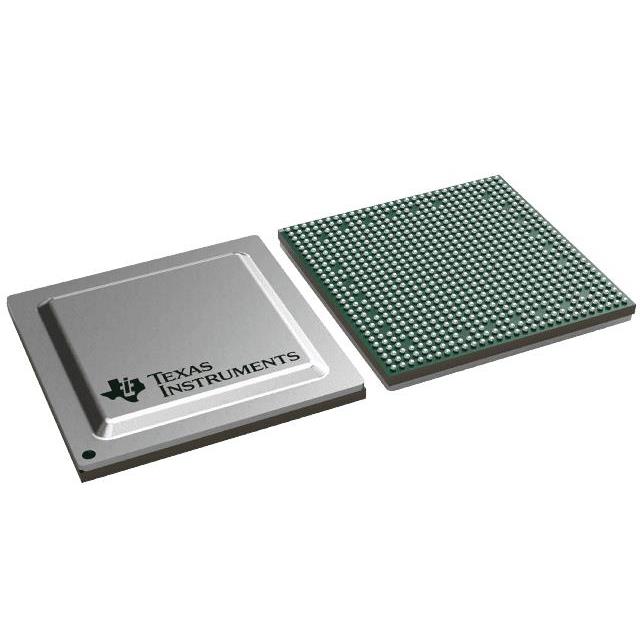

• Package and Mounting  Available in a 760-FCBGA (23×23) supplier device package and designed for surface-mount assembly; package case references include 760-BFBGA/FCBGA.
• Compliance  RoHS compliant.

Typical Applications

• In-vehicle infotainment  HDMI and LCD display controllers, USB 3.0/2.0 and graphics acceleration enable rich multimedia interfaces and content playback.
• Automotive networking and gateway  Multiple Ethernet ports and DCANbus support vehicle network aggregation, data routing and gateway functions in automotive systems.
• Storage-enabled embedded systems  SATA plus high-speed USB enable local storage and media handling for applications requiring onboard data retention.
• Mixed control and multimedia platforms  Combination of Cortex-A15 application cores with Cortex-M4 and dedicated accelerators suits systems that require both real-time control and high-level media processing.

Unique Advantages

• Dual high-speed application cores: Two ARM® Cortex®-A15 cores at 1.5 GHz deliver multi-threaded application performance for complex embedded workloads.
• Dedicated co-processors: On-chip M4, GPU, IVA and BB2D offload control, graphics and multimedia tasks to improve overall system efficiency.
• Comprehensive connectivity: Integrated Ethernet, USB, SATA and DCANbus interfaces reduce external component count and simplify system design.
• Security-ready platform: Extensive security feature set—including secure boot and isolation firewalls—supports protected system architectures.
• Automotive-qualified operation: AEC-Q100 qualification and an extended −40°C to 125°C operating range make the device suitable for automotive deployment.
• Flexible memory support: DDR2/DDR3/DDR3L controller compatibility eases migration across memory choices and system cost points.

Why Choose DRA746BPGABCQ1?

The DRA746BPGABCQ1 positions itself as a high-integration microprocessor for embedded and automotive applications that demand a balance of compute performance, multimedia capability and robust connectivity. Its combination of dual Cortex-A15 cores, dedicated accelerators and extensive I/O provides a compact platform for building infotainment, gateway and storage-enabled systems.

With automotive-grade qualification, a wide operating temperature range and an array of built-in security features, this device is suited for designs that require sustained operation in demanding environments while minimizing external components and system complexity.

Request a quote or submit an RFQ to receive pricing and lead-time information for the DRA746BPGABCQ1 and to discuss how it fits your next embedded or automotive design.
