DRA745BLGABCRQ1

The DRA745BLGABCRQ1 is an ARM® Cortex®-A15 based microprocessor from the Jacinto DRA74x series by Texas Instruments. It integrates two 32-bit Cortex‑A15 cores running at up to 1.176 GHz alongside a range of co-processors and peripheral controllers to address demanding embedded system requirements.

Designed for high-performance embedded and automotive designs, this device delivers integrated connectivity, multimedia and storage interfaces, and hardware security features—enabling compact, robust system implementations across vehicle and embedded platforms.

Key Features

• Core & Performance  Dual ARM® Cortex®-A15 32‑bit cores at up to 1.176 GHz, providing multi-threaded application processing capacity for compute-intensive embedded tasks.
• Co-processors & Acceleration  Includes ARM® Cortex®-M4, GPU and IVA co-processors to offload real-time control, graphics and multimedia processing for responsive HMI and media pipelines.
• Memory Controllers  Integrated controllers for DDR2, DDR3 and DDR3L memory types, enabling flexible memory subsystem choices for performance and power tradeoffs.
• Display & Graphics  Display interface controllers supporting HDMI and LCD outputs together with graphics acceleration for advanced human-machine interfaces and video playback.
• Connectivity  Multiple Ethernet interfaces (10/100/1000 Mbps and additional 1 Gbps ports) and DCANbus support provide high-bandwidth networking and in-vehicle network connectivity.
• Storage & USB  SATA support and multiple USB ports (three USB 2.0 and one USB 3.0) enable local storage, peripheral connectivity and high-speed data transfer.
• Security  On-chip features include cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection to support secure system designs.

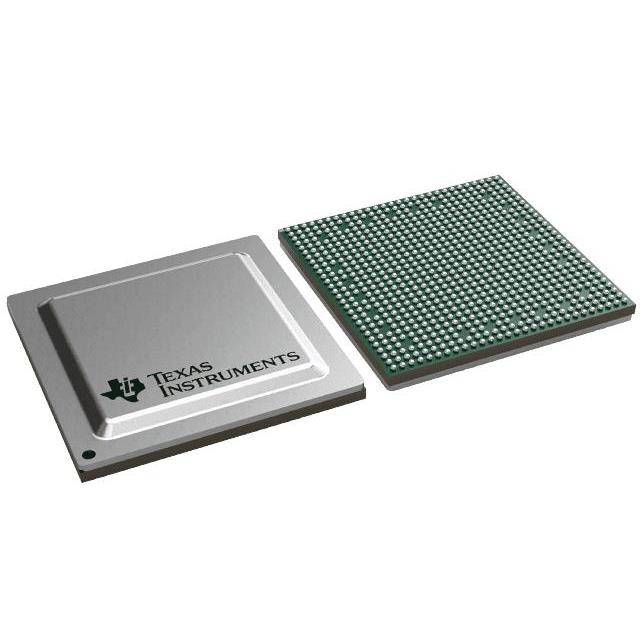

• Package & Mounting  Supplied in a 760‑FCBGA (23×23) package with surface-mount mounting for space-efficient board integration.
• Operating Range & Qualification  Qualified to AEC‑Q100 and rated for operation from −40 °C to 125 °C, meeting rigorous temperature and automotive qualification requirements.
• Compliance  RoHS compliant for environmental and regulatory alignment in modern electronics production.

Typical Applications

• Automotive Infotainment  Integrated graphics, HDMI/LCD display controllers and multimedia co-processors support responsive, feature-rich in-vehicle infotainment systems.
• Telematics and Gateway Systems  Multiple Ethernet interfaces and DCANbus connectivity enable vehicle networking, communications and gateway functions.
• In-vehicle Multimedia Recording and Storage  SATA and USB 3.0 support combined with high-performance application cores provide a platform for on-board recording, media storage and content streaming.
• Advanced HMI Controllers  Graphics acceleration and display interfaces allow high-resolution user interfaces and multimedia displays in automotive and embedded control panels.

Unique Advantages

• Automotive-Grade Qualification: AEC‑Q100 qualification and −40 °C to 125 °C operating range enable designs for harsh vehicle environments.
• High Integration: Combines dual Cortex‑A15 cores, Cortex‑M4 co-processor, GPU and IVA on a single device to reduce system BOM and board area.
• Broad Connectivity Suite: Multiple Gigabit Ethernet ports, DCANbus, SATA and USB 3.0 provide flexible connectivity and high-throughput data paths for complex systems.
• Security-Ready Platform: Built-in cryptography, secure boot, secure storage and isolation firewalls support secure deployment of software and data.
• Memory Flexibility: Support for DDR2/DDR3/DDR3L allows designers to choose the right memory technology for cost, performance and power targets.
• Compact Packaging: 760‑FCBGA (23×23) surface-mount package enables high-density board designs while supporting necessary I/O.

Why Choose DRA745BLGABCRQ1?

The DRA745BLGABCRQ1 positions itself as a performance-focused, highly integrated microprocessor for embedded and automotive applications. With dual Cortex‑A15 cores, dedicated co-processors, rich I/O and on-chip security features, it supports complex multimedia, connectivity and storage use cases within a single device footprint.

Backed by Texas Instruments and qualified to AEC‑Q100 with a −40 °C to 125 °C operating range, this device is suited for designers seeking a robust, compact platform for vehicle and demanding embedded systems where integration, networking and security are key considerations.

Request a quote or contact sales to discuss pricing, availability and suitability of the DRA745BLGABCRQ1 for your design needs.
