DRA745BLGABCQ1

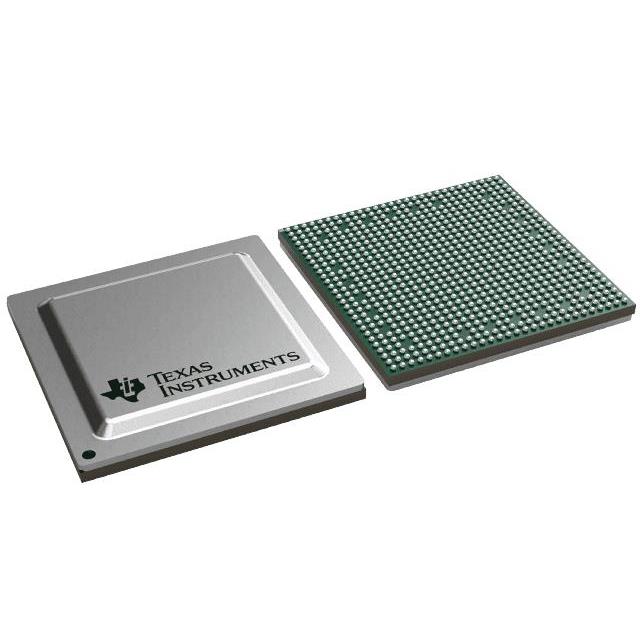

The DRA745BLGABCQ1 is an ARM® Cortex®-A15 microprocessor from Texas Instruments' Jacinto DRA74x series. It features a dual-core, 32-bit Cortex-A15 operating at 1.176 GHz in a 760-FCBGA (23×23) package, designed for embedded and automotive-grade applications.

With integrated multimedia and security capabilities plus a broad set of I/O controllers, this device targets embedded systems that require processing performance, connectivity and system-level integration within an automotive-grade qualification envelope.

Key Features

• CPU: Dual ARM® Cortex®-A15 cores at 1.176 GHz delivering multi-threaded application processing for embedded workloads.
• Co-processors & Acceleration: Integrated ARM® Cortex®-M4, BB2D, GPU and IVA for offloading control, graphics and multimedia tasks.
• Memory Interfaces: Built-in controllers for DDR2, DDR3 and DDR3L memory types to support varied system memory configurations.
• Display & Graphics: HDMI and LCD display interface controllers plus graphics acceleration for user-interface and multimedia applications.
• Connectivity: Multiple Ethernet ports (10/100/1000 Mbps and 1 Gbps), SATA and USB connectivity (three USB 2.0 ports and one USB 3.0 port) for networked and storage applications.
• Automotive Grade & Qualification: Grade listed as Automotive with AEC-Q100 qualification and operating temperature range of −40 °C to 125 °C.
• Security Features: On-chip cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection for system-level security.
• Package & Mounting: Supplier device package 760-FCBGA (23×23) designed for surface-mount assembly.
• Standards Compliance: RoHS compliant.

Typical Applications

• Automotive Systems: Automotive-grade qualification and wide operating temperature make the device suitable for in-vehicle systems that require secure processing and robust environmental performance.
• Infotainment and Display Controllers: HDMI and LCD interfaces with graphics acceleration support multimedia playback and user-interface rendering.
• Networked Embedded Controllers: Multiple Gigabit Ethernet ports, SATA and USB 3.0/2.0 support storage and high-throughput connectivity in embedded networking applications.
• Secure Embedded Platforms: Comprehensive on-chip security features enable secure boot, protected storage and device identity for safety- and IP-sensitive designs.

Unique Advantages

• High computational throughput: Dual Cortex-A15 cores at 1.176 GHz provide headroom for compute- and thread-intensive embedded tasks.
• Integrated multimedia and acceleration: GPU and IVA plus dedicated co-processors reduce system-level BOM and offload heavy multimedia workloads.
• Broad connectivity: Built-in Ethernet, SATA and USB ports simplify integration of networking and storage subsystems.
• Automotive-ready qualification: AEC-Q100 qualification and −40 °C to 125 °C operating range support deployment in demanding automotive environments.
• Comprehensive security suite: Multiple hardware and software security features enable system-level protection for safety-critical and IP-sensitive applications.
• Flexible memory support: DDR2/DDR3/DDR3L controllers accommodate a range of memory architectures and cost/performance trade-offs.

Why Choose DRA745BLGABCQ1?

The DRA745BLGABCQ1 combines a dual-core ARM® Cortex®-A15 CPU with integrated multimedia acceleration, extensive I/O and a comprehensive security feature set, all in a 760-FCBGA package. Its AEC-Q100 qualification and −40 °C to 125 °C operating range position it for embedded and automotive designs that require performance, integration and environmental robustness.

As part of the Jacinto DRA74x series from Texas Instruments, this device is suited to designers building secure, connected embedded platforms with demanding display, networking and storage needs while leveraging a consistent processor family for product scalability.

Request a quote or submit an inquiry to receive pricing, availability and lead-time information for the DRA745BLGABCQ1.
