DRA744BJGABCRQ1

The DRA744BJGABCRQ1 is a Texas Instruments Jacinto DRA74x series microprocessor featuring a dual ARM® Cortex®-A15 32-bit core running at 1 GHz. It combines general-purpose application processing with integrated co-processors and a broad set of I/O to address embedded and automotive use cases.

Designed for systems that require high integration, connectivity and security, the device supports multimedia display interfaces, multiple Ethernet ports, SATA and USB connectivity while meeting AEC-Q100 qualification for automotive-grade deployment.

Key Features

• Core: Dual ARM® Cortex®-A15 32-bit processors at 1 GHz for application-level processing.
• Co-processors and Acceleration: Integrated co-processors including an ARM® Cortex®-M4, BB2D, GPU and IVA to offload real-time, graphics and multimedia tasks.
• Memory Interfaces: On-chip controllers supporting DDR2, DDR3 and DDR3L memory types for flexible system memory configurations.
• Display and Graphics: Display interface controllers for HDMI and LCD plus graphics acceleration for multimedia and infotainment displays.
• Connectivity: Multiple Ethernet interfaces (10/100/1000 Mbps and 1 Gbps), USB 2.0 (×3) and USB 3.0 (×1), SATA and DCANbus for broad I/O and network integration.
• Security: Hardware security features including cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection.

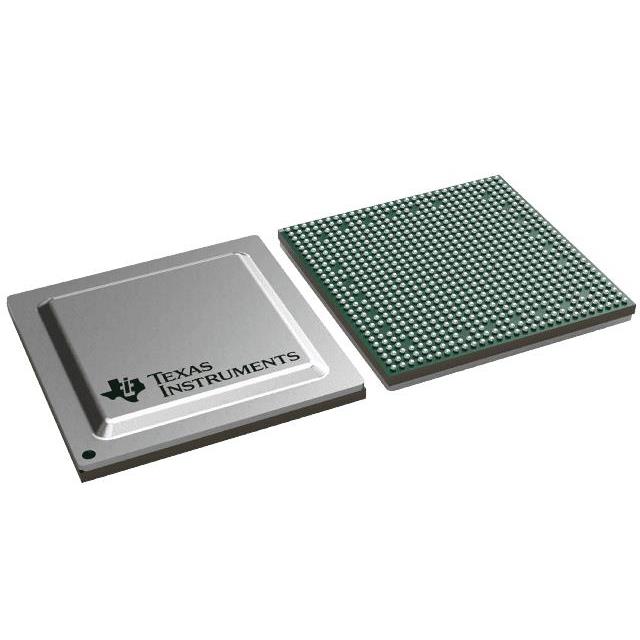

• Package and Mounting: 760-ball FCBGA package (760-FCBGA, 23×23) for surface-mount assembly.
• Automotive Qualification and Temperature Range: Automotive grade with AEC‑Q100 qualification and an operating temperature range of −40 °C to 125 °C.
• Compliance: RoHS compliant.

Typical Applications

• Automotive infotainment: High-level application processing, HDMI/LCD display support and graphics acceleration for vehicle multimedia and display systems.
• In-vehicle networking and connectivity: Multiple Ethernet ports, USB and DCANbus interfaces enable robust networking and peripheral integration in automotive systems.
• Embedded multimedia systems: Co-processors (GPU, IVA) and display controllers support video and graphics workloads in embedded appliances and industrial HMI.
• Storage-enabled controllers: SATA plus multiple USB interfaces facilitate local storage and media playback or recording functions.

Unique Advantages

• Balanced dual-core processing: Two ARM® Cortex®-A15 cores at 1 GHz provide application-level performance while enabling co-processor offload.
• High integration of interfaces: Built-in Ethernet, USB, SATA, DCANbus and display controllers reduce external components and simplify system design.
• Comprehensive hardware security: Multiple security features including secure boot and isolation firewalls help protect device IP and system integrity.
• Automotive-ready qualification: AEC‑Q100 qualification and a −40 °C to 125 °C operating range support deployment in automotive environments.
• Flexible memory support: DDR2/DDR3/DDR3L controllers allow designers to choose memory technology that fits cost and performance targets.
• Multimedia acceleration: Dedicated GPU and IVA co-processors plus HDMI/LCD interfaces enable efficient handling of graphics and video workloads.

Why Choose DRA744BJGABCRQ1?

DRA744BJGABCRQ1 positions itself as a highly integrated microprocessor for embedded and automotive applications that require a mix of application performance, multimedia capability and extensive I/O. Its dual Cortex‑A15 cores combined with dedicated co-processors and a broad interface set make it suitable for systems where consolidation of functions reduces BOM and board complexity.

With AEC‑Q100 qualification, a wide operating temperature range and built-in security features, this device is suited to robust, long-lived designs in automotive and demanding embedded markets that prioritize integration, connectivity and secure operation.

Request a quote or submit an inquiry to get pricing and availability information for DRA744BJGABCRQ1. Our team can assist with lead times and order placement.
