DRA746PPIGABZQ1

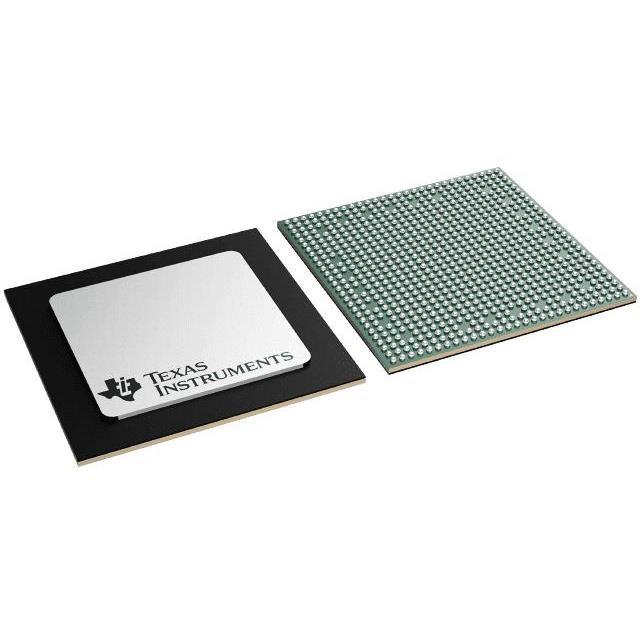

The DRA746PPIGABZQ1 is an ARM® Cortex®-A15 microprocessor IC from the Jacinto DRA74x series, configured as a dual-core, 32-bit processor running at 1.5 GHz in a 760-FCBGA (23×23) package. It integrates multiple co‑processor options and a broad set of peripheral controllers to address embedded system requirements.

Designed for embedded and automotive applications, this device combines performance, on-chip integration and automotive-grade qualification to support designs that require high processing throughput, rich I/O and extended operating temperature range.

Key Features

• Core Processor  Dual ARM® Cortex®-A15 cores at 1.5 GHz delivering 32-bit application processing for compute-intensive embedded workloads.
• Integrated Co‑processors  Supports additional on-chip co‑processors including ARM® Cortex®-M4, C66x and IVA, enabling offload of DSP, control and multimedia tasks.
• Memory Controllers  On-chip controllers for DDR2, DDR3 and DDR3L memory types to support a range of system memory configurations.
• Display and Graphics  Display interface controllers for HDMI and LCD plus graphics acceleration to support visual and human-machine interface applications.
• Connectivity and Storage  Multiple high-speed interfaces including one Gigabit Ethernet port, one 10/100 Ethernet port, SATA, three USB 2.0 ports and one USB 3.0 port for networking and storage connectivity.
• Peripheral Interfaces  Common peripheral support such as I2C for sensor and control interfacing.
• Security and Debug  Built-in Boot Security and Secure Debug features to support secure system bring-up and development workflows.
• Automotive Qualification and Temperature Range  Automotive grade with AEC‑Q100 qualification and an operating temperature range of -40 °C to 125 °C for reliability in demanding environments.
• Package and Mounting  760‑lead FCBGA package (760‑FCBGA, 23×23) and surface‑mount construction for compact board-level integration.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Automotive control and display systems  Automotive-grade qualification and display/graphics capabilities make this device suitable for control units and dashboard/infotainment displays operating across a wide temperature range.
• Embedded networking and gateways  Integrated Gigabit Ethernet, USB 3.0 and SATA provide the connectivity and storage interfaces needed for networking appliances and gateways.
• Industrial automation  Extended temperature range, secure boot features and rich I/O support enable use in industrial control and automation systems.

Unique Advantages

• High-performance dual-core processing: Dual ARM® Cortex®-A15 cores at 1.5 GHz provide headroom for compute-intensive embedded applications.
• Multi-domain integration: On-chip co‑processors (Cortex‑M4, C66x, IVA) reduce external component count by handling control, DSP and multimedia tasks.
• Comprehensive connectivity: Multiple Ethernet ports, SATA, USB 3.0/2.0 and display interfaces simplify system-level design for networking, storage and HMI functions.
• Automotive‑grade reliability: AEC‑Q100 qualification and -40 °C to 125 °C operating range support deployment in harsh and temperature‑critical environments.
• Security-ready boot and debug: Built-in Boot Security and Secure Debug features help protect system integrity during development and field operation.
• Compact, surface-mount package: 760‑FCBGA (23×23) packaging enables high I/O density in a compact board footprint.

Why Choose DRA746PPIGABZQ1?

The DRA746PPIGABZQ1 positions itself as a high-performance, highly integrated microprocessor solution for embedded and automotive applications that require robust processing, extensive peripheral support and automotive-grade qualification. Its combination of dual Cortex‑A15 cores, integrated co‑processors and a wide set of connectivity options addresses systems that need compute throughput, multimedia/display capability and reliable I/O.

This device is well suited to designers targeting systems that demand long-term operational reliability, secure boot capability and flexibility in memory and peripheral choices—delivering a balanced platform for compute, connectivity and secure system integration.

Request a quote or submit an inquiry to receive pricing and availability information for the DRA746PPIGABZQ1. Our team can provide the details needed to evaluate this part for your design and procurement process.
