DRA750BJGABCRQ1

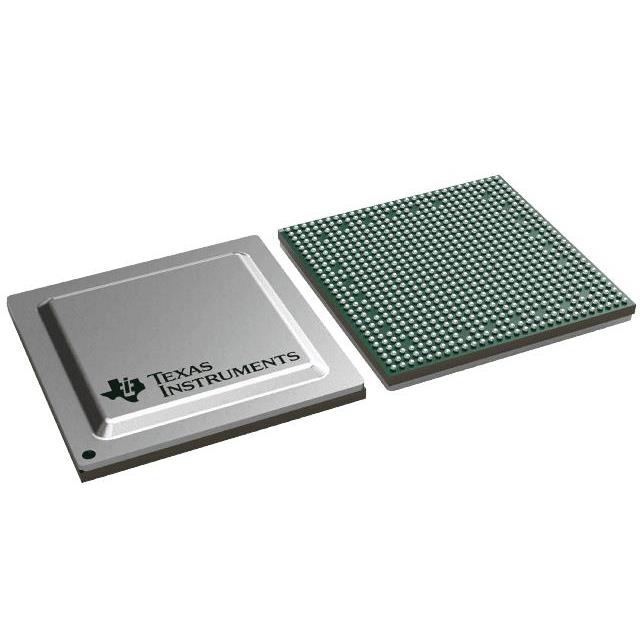

The DRA750BJGABCRQ1 is an ARM® Cortex®-A15 based microprocessor IC from Texas Instruments’ Jacinto DRA75x series. It features a dual 32-bit Cortex-A15 configuration running at 1 GHz and is supplied in a 760-FCBGA (23×23) package for surface-mount applications.

Designed for embedded and automotive-grade systems, the device integrates multiple co-processors and a wide range of interfaces to address display, networking and storage needs while meeting AEC-Q100 qualification and a –40 °C to 125 °C operating range.

Key Features

• CPU Core  Dual ARM® Cortex®-A15 cores, 32-bit, up to 1 GHz clock speed for multicore processing.
• On-chip Co-processors  Integrated co-processors including ARM® Cortex®-M4, BB2D, C66x, GPU and IVA to offload specialized compute tasks.
• Memory Controllers  Support for DDR2, DDR3 and DDR3L memory technologies to match system memory choices.
• Display and Graphics  Built-in graphics acceleration plus display interface controllers for HDMI and LCD outputs.
• High-speed I/O and Storage  Multiple USB ports (three USB 2.0 and one USB 3.0) and SATA connectivity for peripherals and storage.
• Ethernet Connectivity  One 10/100/1000 Mbps Ethernet port and two 1 Gbps Ethernet ports for flexible network topologies.
• Automotive-grade Qualification  AEC-Q100 qualified and specified for operation from –40 °C to 125 °C.
• Security Features  Includes cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection.
• Package and Mounting  760-FCBGA (23×23) package, surface mount for compact board-level integration.
• Additional Interfaces  DCANbus support and other I/O to integrate vehicle and industrial networks.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Automotive Infotainment  HDMI/LCD display controllers and GPU acceleration enable high-quality human-machine interfaces for in-vehicle entertainment and information systems.
• Telematics and Gateway Systems  Multiple GigE ports, USB and DCANbus make the device suitable for telematics units and in-vehicle gateways requiring diverse connectivity.
• Embedded Networking and Storage  Integrated SATA and multi-port Ethernet support networked storage and communication appliances in automotive and industrial environments.
• Industrial Embedded Control  Dual-core processing, co-processors and wide operating temperature range support demanding industrial control and HMI applications.

Unique Advantages

• Dual-core Cortex-A15 Performance: Two 32-bit Cortex-A15 cores at up to 1 GHz provide balanced multicore processing for control and application tasks.
• Integrated Heterogeneous Processing: On-chip Cortex-M4, BB2D, C66x, GPU and IVA co-processors enable task-specific acceleration without external accelerators.
• Comprehensive Connectivity: Gigabit Ethernet ports, multiple USB ports, SATA and DCANbus cover a broad set of vehicle and embedded interface requirements.
• Automotive-ready Reliability: AEC-Q100 qualification and an operating range of –40 °C to 125 °C support use in temperature-demanding automotive and industrial environments.
• Flexible Memory Support: DDR2/DDR3/DDR3L controllers allow designers to select memory technologies that match cost and performance targets.
• Security and System Protection: Built-in secure boot, secure storage, device identity and isolation firewalls help protect IP and device integrity.

Why Choose DRA750BJGABCRQ1?

DRA750BJGABCRQ1 positions itself as a highly integrated microprocessor for embedded and automotive applications that require multicore compute, diverse I/O and hardware-accelerated co-processing. Its combination of Cortex-A15 cores, multiple co-processors, extensive connectivity and automotive-grade qualification makes it suitable for designs where integration, thermal range and security are priorities.

This device is appropriate for engineers building infotainment, telematics, gateway, storage and industrial control systems who need a compact, surface-mount 760-FCBGA solution with verified automotive qualification and broad memory and I/O support.

Request a quote or submit a procurement inquiry to obtain pricing and availability for DRA750BJGABCRQ1.
