DRA756BPGABCQ1

The DRA756BPGABCQ1 from Texas Instruments is an ARM® Cortex®-A15 based microprocessor IC featuring two 32-bit cores running at 1.5 GHz. It combines application-class processing with a range of integrated peripherals and security features suitable for embedded and automotive-class designs.

With heterogeneous co-processors, multimedia acceleration and broad I/O support, this device targets systems requiring high compute density, robust connectivity and extended temperature capability for demanding environments.

Key Features

• Core and Performance Two ARM® Cortex®-A15 32-bit cores at 1.5 GHz provide application-class processing performance for compute-intensive embedded workloads.
• Heterogeneous Co‑Processing Integrated co-processors include ARM® Cortex®-M4, BB2D, C66x, GPU and IVA to offload specialized tasks and enable balanced system partitioning.
• Memory Support On-chip controllers for DDR2, DDR3 and DDR3L memory types to support a range of system memory configurations.
• Multimedia and Graphics Graphics acceleration plus display interface controllers for HDMI and LCD enable multimedia and display-driven applications.
• Connectivity and Storage Rich I/O set including 10/100/1000 Mbps Ethernet, additional 1 Gbps Ethernet, SATA, USB 3.0 (1) and USB 2.0 (3) for high-bandwidth networking and storage options.
• Automotive Interfaces DCANbus support and automotive-grade qualification make the device suitable for vehicle-focused embedded systems.
• Security Features Built-in cryptography, debug security, device identity, isolation firewalls, secure boot, secure storage and software IP protection for system integrity and data protection.

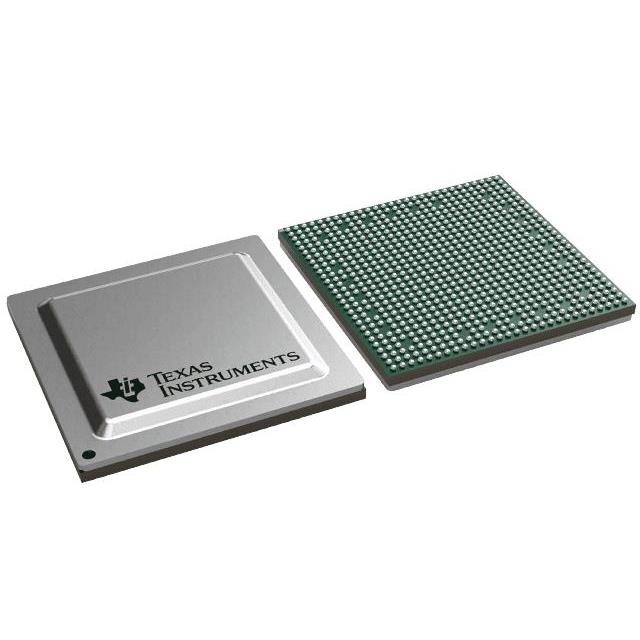

• Package and Thermal Available in a 760-FCBGA (23×23) package and specified for an operating temperature range of -40 °C to 125 °C.
• Qualification AEC-Q100 qualification and Automotive grade designation per product data.

Typical Applications

• Automotive Infotainment Leverages HDMI/LCD display controllers, GPU and multimedia accelerators to drive in-vehicle entertainment and display systems.
• Vehicle Gateway and Connectivity Multi-port Ethernet, USB and CAN support enable vehicle network gateways and communication modules.
• Embedded Multimedia Systems GPU, IVA and display interfaces make the device suitable for set-top, industrial HMI and media-rich embedded appliances.
• Storage and Networking Appliances Integrated SATA, USB 3.0 and gigabit Ethernet support storage gateways and networked embedded appliances.

Unique Advantages

• High computational throughput: Dual ARM® Cortex®-A15 cores at 1.5 GHz provide sustained application processing headroom for demanding tasks.
• Heterogeneous processing fabric: On-chip Cortex‑M4, C66x DSP, GPU and IVA co-processors enable task-specific acceleration and system partitioning.
• Comprehensive connectivity: Ethernet, USB 2.0/3.0, SATA and DCANbus deliver flexible high-bandwidth I/O for diverse system architectures.
• Automotive-grade reliability: AEC‑Q100 qualification and an operating range of -40 °C to 125 °C support deployment in temperature-critical environments.
• Integrated security suite: Cryptography, secure boot, secure storage and isolation firewalls help protect device identity and software IP.
• Flexible memory options: DDR2/DDR3/DDR3L controller support simplifies memory selection across performance and power trade-offs.

Why Choose DRA756BPGABCQ1?

The DRA756BPGABCQ1 positions itself as a highly integrated application processor for embedded and automotive-class systems that require a combination of CPU performance, heterogeneous acceleration and extensive I/O. Its automotive-grade qualification, broad temperature range and built-in security features make it suitable for designs where reliability and system integrity are required.

This device is well suited to engineers building infotainment, vehicle gateway, connectivity or multimedia-focused embedded systems who need a compact, feature-rich processor package with support for multiple memory types and high-speed interfaces.

Request a quote or submit an inquiry to get pricing and availability for the DRA756BPGABCQ1. Provide your project requirements to expedite lead time and procurement details.
