DRA756PPIGABZQ1

The DRA756PPIGABZQ1 is an ARM® Cortex®-A15 based microprocessor from the Jacinto DRA75x series by Texas Instruments. It implements a dual-core, 32-bit Cortex-A15 CPU running at 1.5 GHz and integrates multiple co-processors and I/O options for embedded system designs.

Designed for embedded and automotive-grade applications, this device delivers a balance of processing performance, peripheral integration, and system-level reliability suitable for infotainment, networking, and storage-capable platforms that require AEC‑Q100 qualification and extended temperature range.

Key Features

• Core & Performance Dual ARM® Cortex®-A15 cores, 32-bit, operating at 1.5 GHz for application processing and control tasks.
• Co-processors & Acceleration Integrated co-processors including ARM® Cortex®-M4, C66x, and IVA to offload DSP, real-time, and multimedia workloads.
• Memory & Storage Memory controller support for DDR2, DDR3, and DDR3L and integrated SATA for local storage and high-bandwidth memory interfaces.
• Connectivity & I/O Multiple high-speed and legacy interfaces including USB 3.0 (1), USB 2.0 (3), Ethernet (10/100 Mbps ×1, 10/100/1000 Mbps ×1), and I2C for system control and networking.
• Display & Graphics Display interface controllers for HDMI and LCD along with graphics acceleration to support advanced user interfaces and multimedia playback.
• Security & Debug Built-in Boot Security and Secure Debug features to support protected boot flows and controlled debug access.
• Automotive Qualification & Reliability Automotive grade with AEC‑Q100 qualification and RoHS compliance, targeted for designs requiring industry-recognized qualification.

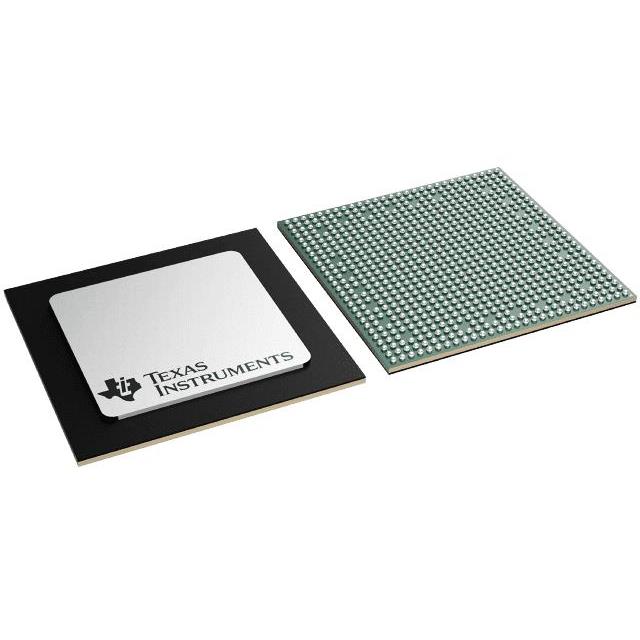

• Package & Environmental Range Supplied in a 760‑FCBGA (23×23) surface-mount package and specified for an operating temperature range of −40 °C to 125 °C.

Typical Applications

• Automotive Infotainment and Displays HDMI and LCD display controllers plus graphics acceleration enable multimedia interfaces and instrument cluster graphics.
• Networked Embedded Gateways Dual Ethernet ports and multiple USB interfaces support connected gateway, telematics, and networking functions.
• Storage‑Enabled Systems Integrated SATA and robust memory controller support make the device suitable for embedded storage and data-logging applications.
• Industrial HMI and Control Dual-core processing with co-processor acceleration and extended temperature range supports human-machine interfaces and control systems in harsh environments.

Unique Advantages

• Highly integrated processing Dual Cortex‑A15 cores plus Cortex‑M4, C66x and IVA co-processors consolidate application, real-time, and multimedia tasks on a single device.
• Comprehensive I/O mix USB, Ethernet, SATA, HDMI/LCD and I2C interfaces reduce external component count and simplify board-level integration.
• Automotive‑grade qualification AEC‑Q100 qualification and a −40 °C to 125 °C operating range address reliability requirements for automotive and demanding embedded applications.
• Flexible memory and storage options Support for DDR2/DDR3/DDR3L plus SATA enables a range of memory configurations for performance or power-optimized designs.
• Security primitives included Boot Security and Secure Debug features help establish trusted boot and controlled debug flows for production and field operation.

Why Choose DRA756PPIGABZQ1?

The DRA756PPIGABZQ1 positions itself as a performance-oriented, highly integrated MPU for embedded and automotive applications. Its dual Cortex‑A15 cores, multiple co-processors, wide array of I/O, and automotive qualification make it suitable for infotainment, networking gateways, storage-enabled systems, and industrial HMI designs that require sustained operation across a wide temperature range.

Backed by Texas Instruments as the manufacturer and featuring a compact 760‑FCBGA (23×23) package with RoHS compliance, the device offers a durable platform for designers seeking an integrated solution that balances processing capability, peripheral density, and industry qualification.

Request a quote or submit a purchase inquiry for the DRA756PPIGABZQ1 to initiate availability and pricing information tailored to your project requirements.
