DRA767PSGACDRQ1

The DRA767PSGACDRQ1 is an ARM® Cortex®-A15 based dual-core microprocessor from the Texas Instruments Jacinto DRA76x family. It operates at 1.8 GHz and integrates a rich set of processing engines, memory controllers and multimedia peripherals targeted at advanced embedded infotainment and human‑machine interface (HMI) designs.

Designed for high-integration applications, the device combines general-purpose application cores with dedicated DSPs, graphics accelerators and extensive I/O to deliver system-level performance, security features and automotive-grade qualification for demanding environments.

Key Features

• Core & processing  Dual ARM® Cortex®-A15 application cores at 1.8 GHz (32-bit). On-chip co-processors include ARM® Cortex®-M4, C66x DSP and IVA subsystems for heterogeneous processing.
• Memory subsystem  Up to 2.5 MB on-chip L3 RAM and two DDR2/DDR3/DDR3L memory controllers (EMIF) supporting up to DDR3‑1333 and up to 2 GB per EMIF.
• Graphics & video  Integrated graphics and video engines including dual-core PowerVR® SGX544 3D GPU, Vivante® GC320 2D accelerator, video processing engine (VPE) and HDMI/DVI display support for Full‑HD video.
• Multimedia & imaging  Imaging subsystem with dual ARM® Cortex®-M4 IPUs, image signal processor (ISP), Wide Dynamic Range and lens distortion correction, and multiple video input ports.
• High-speed interfaces  Rich I/O including two 1 Gbps Ethernet MACs, SATA 3 Gbps, USB 3.0 (SuperSpeed) dual-role device plus three USB 2.0 dual-role ports, PCIe 3.0 lanes, and multiple SD/MMC interfaces.
• Vehicle and control interfaces  CANbus support (DCAN and MCAN with available FD functionality), multiple UARTs, SPI, I2C and MIPI CSI‑2 camera interface for automotive and embedded control networks.
• Storage & DMA  Enhanced DMA controller, QSPI, GPMC and multiple MMC/SD interfaces for flexible storage and memory-mapped peripherals.
• Security  Device security features including hardware crypto accelerators and DMA, boot security, secure storage, device identity, isolation firewalls, secure debug and software IP protection.

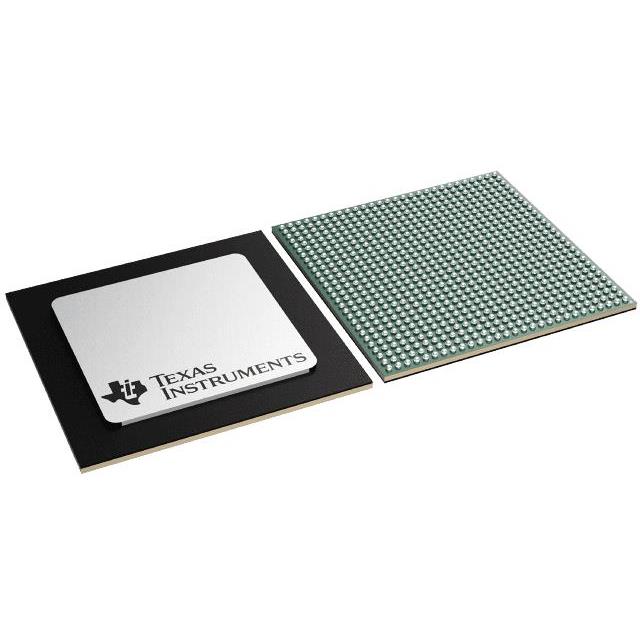

• Package & temperature  784‑pin FCBGA (23 × 23 mm, 0.8 mm pitch) package; operating temperature range −40 °C to 125 °C. Supplier device package: 784‑FCBGA (23x23).
• Automotive qualification & compliance  Grade: Automotive with AEC‑Q100 qualification and RoHS compliance.

Typical Applications

• Infotainment systems  High‑performance multimedia processing, display and audio for in‑vehicle entertainment and navigation systems.
• Human‑Machine Interface (HMI)  Responsive touch and graphical UIs enabled by integrated 2D/3D graphics and display controller pipelines.
• Advanced driver assistance integration (ADAS)  Image processing, camera interfaces and DSP resources for vision and sensor fusion tasks.
• Rear‑seat and multimedia playback  Multiple video inputs/outputs and codecs support robust passenger entertainment experiences.

Unique Advantages

• Highly integrated multimedia subsystem: Dual A15 cores plus dedicated GPUs, VPE, ISP and IPUs consolidate video, graphics and imaging workloads on a single device.
• Comprehensive I/O reduces BOM: Built‑in Gigabit Ethernet, SATA, USB 3.0/2.0, PCIe lanes, CAN and MIPI interfaces minimize external controller requirements.
• Automotive‑grade reliability: AEC‑Q100 qualification and −40 °C to 125 °C operating range meet demanding environmental requirements.
• Security and system protection: Hardware crypto, secure boot, isolation firewalls and secure storage provide layered device security for protected applications.
• Flexible memory and performance scaling: Dual EMIF controllers with support for DDR2/DDR3/DDR3L and substantial on‑chip L3 RAM enable scalable system memory configurations.
• Development and debug support: On‑chip debug with CTools technology and extensive peripheral visibility accelerate bring‑up and system validation.

Why Choose DRA767PSGACDRQ1?

The DRA767PSGACDRQ1 combines multicore application processing, DSP acceleration and dedicated graphics with broad multimedia and vehicle interfaces to deliver an integrated platform for infotainment, HMI and ADAS‑adjacent systems. Its combination of performance, extensive peripheral integration and automotive qualification makes it suitable for designs requiring durable operation across harsh temperature ranges.

As part of the Jacinto DRA76x family, this device offers a balanced mix of compute, imaging, and connectivity options for designers who need system consolidation, hardware security features, and flexible memory configurations in a 784‑pin FCBGA package.

Request a quote or submit a purchasing inquiry for pricing and availability of the DRA767PSGACDRQ1. Provide your requirements to receive a tailored response for lead time and volume pricing.
