DRA773PSGACDQ1

The DRA773PSGACDQ1 is a high-performance microprocessor from the Jacinto DRA77x family by Texas Instruments. It integrates a dual ARM® Cortex®-A15 32‑bit processor subsystem running at up to 1.8 GHz and a rich set of multimedia, imaging and connectivity blocks targeted at advanced embedded and infotainment applications.

Designed for systems requiring sustained compute, video and graphics capabilities alongside automotive-grade reliability, the device combines multi-core compute, DSP and GPU acceleration with extensive I/O and security features to support human‑machine interfaces, navigation, multimedia playback and ADAS integration.

Key Features

• Core and Performance  Dual ARM® Cortex®-A15 cores at up to 1.8 GHz delivering multi-threaded application processing for demanding embedded workloads.
• Co-Processors and DSP  Integrated ARM® Cortex®-M4, up to two C66x floating-point VLIW DSPs and IVA subsystems for audio, vision and signal-processing tasks.
• Memory Subsystem  Up to 2.5 MB on-chip L3 RAM with two DDR2/DDR3/DDR3L EMIF modules (supports DDR2-800 and DDR3-1333, up to 2 GB per EMIF).
• Graphics and Video  Dual-core PowerVR® SGX544 3D GPU and Vivante® GC320 2D accelerator with a Video Processing Engine (VPE) supporting Full‑HD (1920 × 1080p, 60 fps), HDMI 1.4a and DVI 1.0 output.
• Imaging and Vision  Dual ARM® Cortex®-M4 Image Processing Units (IPU), Imaging Subsystem with Image Signal Processor (ISP), Wide Dynamic Range and Lens Distortion Correction, plus Embedded Vision Engines (EVEs).
• Connectivity and I/O  Extensive interfaces including PCIe 3.0 (two 5‑Gbps lanes), SuperSpeed USB 3.0 dual-role, three USB 2.0 dual-role ports, SATA 3 Gbps, two 1‑Gbps Ethernet ports, CAN (DCAN/MCAN), MIPI CSI-2 and up to 247 GPIOs.
• Storage and Peripherals  MultiMedia Card/SD/SDIO interfaces, Quad SPI (QSPI), GPMC and multiple McASP audio ports for broad peripheral support.
• Security  Hardware crypto accelerators, secure boot and secure storage, device identity, isolation firewalls, secure debug, secure ROM and customer-programmable keys/OTP.

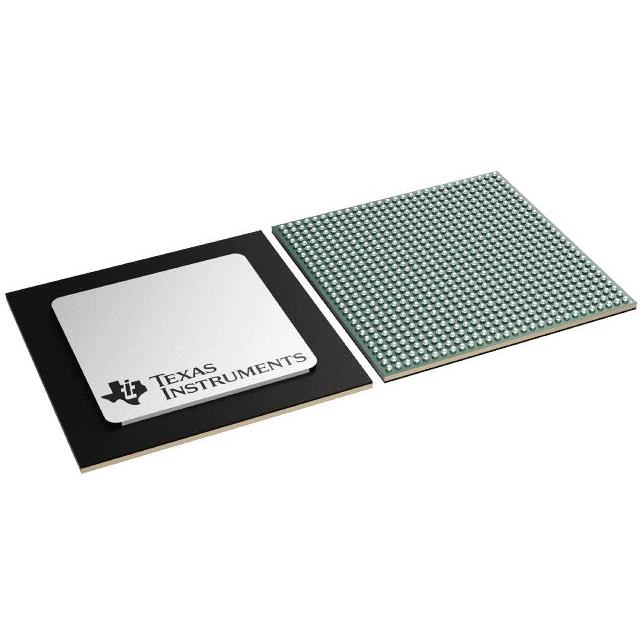

• Package and Reliability  23 mm × 23 mm, 0.8 mm pitch, 784‑pin FCBGA package; AEC‑Q100 qualification and an operating temperature range of −40 °C to 125 °C.

Typical Applications

• Human‑Machine Interface (HMI)  Drives rich, responsive in-vehicle or embedded user interfaces using multi-core CPU performance with 2D/3D graphics acceleration and display controller support.
• Navigation  Handles map rendering, route computation and multimedia overlays by combining Cortex‑A15 processing with GPU acceleration and multiple display outputs.
• Rear Seat Entertainment  Manages full‑HD video playback, multiple video inputs/outputs and audio transport using the VPE, HDMI/DVI encoder and integrated audio interfaces.
• Multimedia Playback  Supports high‑resolution video decode/encode paths, diverse storage and USB connectivity, and dedicated accelerators for efficient media processing.
• ADAS Integration  Enables camera input, image signal processing and vision acceleration for advanced driver‑assist features through IPUs, EVEs and ISP capabilities.

Unique Advantages

• Highly integrated multimedia platform: Combines multi-core CPUs, DSPs, GPUs and dedicated video/imaging blocks to minimize external components and simplify system design.
• Broad connectivity set: PCIe 3.0, USB 3.0, multiple USB 2.0 ports, SATA, Gigabit Ethernet and CAN enable versatile system-level integration and peripheral support.
• Automotive-grade reliability: AEC‑Q100 qualification and a −40 °C to 125 °C operating range address temperature and quality requirements for automotive and demanding embedded environments.
• Security and device protection: Hardware crypto accelerators, secure boot, firewalls and secure storage provide a layered approach to protect system software and keys.
• Scalable memory and performance: Dual EMIF interfaces with DDR2/DDR3/DDR3L support and on-chip L3 RAM allow designers to balance cost and memory bandwidth for target applications.

Why Choose DRA773PSGACDQ1?

The DRA773PSGACDQ1 delivers a balanced combination of compute, multimedia acceleration and automotive‑oriented reliability within the Jacinto DRA77x family from Texas Instruments. Its dual Cortex‑A15 cores, integrated DSPs and GPUs, and comprehensive I/O set make it suitable for advanced infotainment, HMI and vision‑enabled embedded designs that require sustained performance and robust security.

For teams developing feature-rich systems with demanding video, graphics and connectivity needs, this device offers a compact, qualified platform that reduces external component count while providing the interfaces and accelerators needed to implement modern automotive and embedded applications.

Request a quote or contact sales to discuss availability, lead times and how the DRA773PSGACDQ1 can fit your next infotainment or advanced embedded design.
