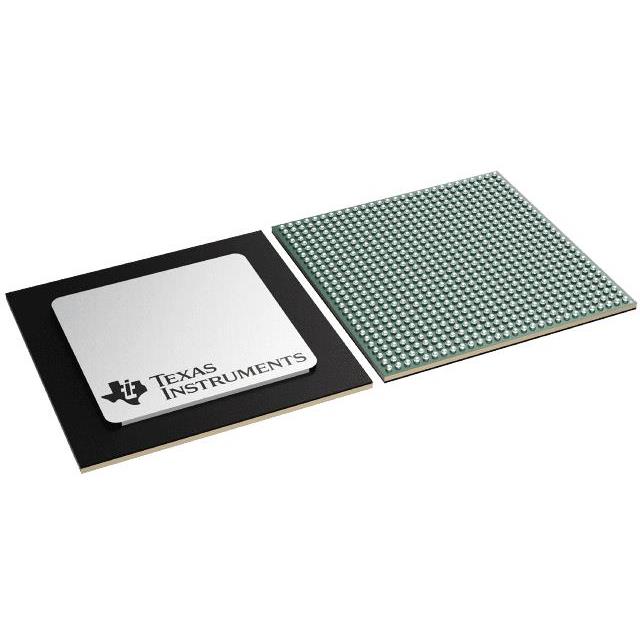

DRA776PPIGACDQ1

The DRA776PPIGACDQ1 is an ARM® Cortex®-A15 based microprocessor IC from the Jacinto DRA77x series, featuring a dual-core 32-bit Cortex-A15 subsystem running at 1.5 GHz. It is designed for automotive-grade infotainment and advanced embedded applications that require high-performance video, image and graphics processing combined with a broad set of on-chip peripherals and security features.

With integrated vision and multimedia subsystems, multiple memory interfaces, extensive I/O and hardware security accelerators, this device targets human‑machine interfaces, navigation, multimedia playback, rear‑seat entertainment and ADAS integration where integration, performance and automotive qualification are required.

Key Features

• CPU & Compute — Dual ARM® Cortex®-A15 microprocessor subsystem at 1.5 GHz (2 cores, 32-bit) for application processing and system control.
• Co‑processors & DSPs — Integrated ARM® Cortex®-M4 IPUs and support for C66x and IVA co-processors for image processing, DSP and video acceleration.
• Memory & On‑chip RAM — Two DDR2/DDR3/DDR3L EMIFs (supports up to DDR3-1333) with up to 2 GB per EMIF and up to 2.5 MB of on‑chip L3 RAM for low-latency buffering.
• Video, Graphics & Imaging — Full‑HD video support (1920×1080p, 60 fps), 2D and 3D graphics acceleration (Vivante® GC320 2D and dual-core PowerVR® SGX544 3D), video processing engine and display controller with HDMI/DVI support.
• Imaging & Vision — Dual ARM® Cortex®-M4 image processing units, embedded vision engines (EVEs), image signal processor (ISP) with WDR and mesh lens distortion correction and camera adaptation layer.
• Interfaces & Connectivity — Two 1 Gbps Ethernet MACs, PCI Express® 3.0 (two 5‑Gbps lanes), MIPI CSI‑2, multiple I2C, UART, McASP, McSPI, QSPI, MMC/SD/SDIO and CANbus (DCAN and MCAN with FD capability).
• Storage & USB — SATA 3 Gbps interface (1), SuperSpeed USB 3.0 dual‑role plus three High‑Speed USB 2.0 dual‑role ports.
• System & Peripheral — Enhanced DMA (EDMA), GPMC, display controller with DMA and multiple video input ports, up to 247 GPIOs and extensive timers and watchdog resources.
• Security Features — Hardware crypto accelerators and DMA, boot security, secure ROM and storage, device identity, isolation firewalls, secure debug and software IP protection.
• Package, Mounting & Environmental — 784‑pin FCBGA package (23 mm × 23 mm, 0.8 mm pitch), surface mount; operating temperature range −40 °C to 125 °C; RoHS compliant.
• Automotive Qualification — Grade: Automotive; Qualification: AEC‑Q100.

Typical Applications

• Infotainment & HMI — High‑performance multimedia and user‑interface processing for in‑vehicle displays, audio/video playback and touchscreen HMI.
• Navigation Systems — Map rendering, route calculation and multimedia integration leveraging the dual Cortex‑A15 cores and graphics acceleration.
• Rear‑Seat Entertainment — Multi‑stream video input/output, HDMI/DVI display support and audio interfaces for passenger entertainment systems.
• ADAS Integration — Imaging and vision processing with ISPs, EVEs and DSP resources to support camera inputs and vision algorithms in automotive environments.

Unique Advantages

• Highly integrated multimedia subsystem: Full‑HD video, multiple video inputs/outputs, 2D/3D acceleration and video processing engines reduce external ASIC/FPGA requirements.
• Scalable memory performance: Two independent EMIF controllers supporting DDR2/DDR3/DDR3L and up to 2 GB per EMIF enable large buffers and smooth multimedia performance.
• Broad peripheral set: Extensive I/O (Ethernet, PCIe, SATA, USB3.0/2.0, CAN, MIPI CSI‑2, MMC/SD) simplifies system design and connectivity to sensors, storage and displays.
• Automotive‑grade robustness: AEC‑Q100 qualification and −40 °C to 125 °C operating range support deployment in automotive environments.
• On‑chip security and IP protection: Hardware crypto, secure boot, secure storage and isolation firewalls help protect device identity and software IP.

Why Choose DRA776PPIGACDQ1?

The DRA776PPIGACDQ1 combines dual Cortex‑A15 performance with dedicated imaging, DSP and graphics subsystems to deliver a highly integrated platform for automotive infotainment, HMI and vision‑enabled applications. Its extensive peripheral mix, memory options and on‑chip security features make it suitable for designs that demand multimedia throughput, connectivity and system‑level protection.

This automotive‑grade device is positioned for engineers and system designers building robust, scalable in‑vehicle systems where integration reduces BOM complexity and accelerates time to market while maintaining qualification and environmental resilience.
