DRA776PPIGACDRQ1

The DRA776PPIGACDRQ1 is an ARM® Cortex®‑A15 based microprocessor IC from the Jacinto DRA77x series, delivering dual‑core 32‑bit processing at 1.5 GHz. It integrates high‑performance application cores with multiple co‑processors and a rich set of multimedia, imaging, and connectivity peripherals targeted at embedded infotainment and automotive applications.

Designed for systems requiring integrated video, graphics, networking and security, the device offers a mix of processing performance, on‑chip memory and extensive I/O to enable complex human‑machine interfaces, multimedia playback and advanced driver assistance system (ADAS) integration.

Key Features

• CPU Subsystem – Dual ARM® Cortex®‑A15 application cores at up to 1.5 GHz, supported by on‑chip L3 and L4 interconnects for low‑latency subsystem communication.
• Co‑processors – Integrated ARM® Cortex®‑M4 image processing units, optional C66x DSP engines and IVA subsystems for dedicated signal, image and vision processing tasks.
• On‑chip Memory – Up to 2.5 MB of on‑chip L3 RAM to support high‑throughput data buffering and real‑time processing.
• Memory Interfaces – Two EMIF memory controllers supporting DDR2, DDR3 and DDR3L; each EMIF supports up to 2 GB per interface and common DRAM speeds noted in the datasheet.
• Multimedia and Graphics – Full‑HD video support (1920 × 1080p, 60 fps), video input/output pipelines, 2D graphics accelerator (Vivante® GC320) and dual‑core PowerVR® SGX544 3D GPU for hardware‑accelerated rendering.
• Display and Imaging – Display controller with DMA engine and up to three pipelines, HDMI 1.4a / DVI 1.0 compliant encoder, integrated Image Signal Processor (ISP) with WDR and lens distortion correction, and camera interfaces including MIPI CSI‑2.
• Connectivity – Two 1 Gbps Ethernet ports, SATA 3 Gbps interface, USB 3.0 (SuperSpeed) dual‑role plus three USB 2.0 high‑speed dual‑role ports, multiple SPI/I2C/UART/MMC/SDIO ports and PCIe 3.0 support (two 5 Gbps lanes).
• Automotive Interfaces – CANbus support with DCAN and MCAN modules (CAN 2.0B, with FD capability available), suitable for integration into automotive networks.
• Security – Hardware crypto accelerators, secure boot and secure storage, device identity and isolation firewalls, secure debug and customer programmable keys/OTP data to support protected software and device authentication.

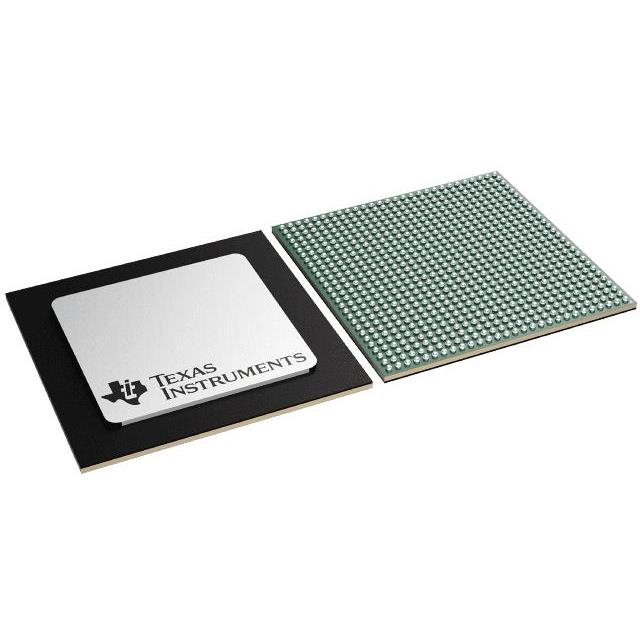

• Package & Temperature – 784‑pin FCBGA (23 × 23 mm, 0.8 mm pitch) package rated for operation from −40 °C to 125 °C. The device is AEC‑Q100 qualified and RoHS compliant.

Typical Applications

• In‑vehicle Infotainment (HMI): Drive rich graphical user interfaces, multimedia playback and touchscreen interactions using the dual A15 cores, GPUs and display pipelines.
• Navigation Systems: Combine high‑performance application processing with GPS/ADAS data handling and multiple connectivity options for map rendering and route computation.
• Rear Seat Entertainment & Multimedia: Support Full‑HD video decode/encode, multi‑stream video input and output, and high‑quality audio interfaces for passenger entertainment systems.
• ADAS Integration: Leverage dedicated vision processors, ISPs and DSP engines for camera processing, sensor fusion and pre‑processing of driving assistance algorithms.
• Automotive Networking & Storage: Use integrated Ethernet, CAN and SATA interfaces to connect vehicle subsystems, log data and provide high‑speed storage and network backhaul.

Unique Advantages

• Highly integrated multimedia platform: Combines application CPUs, DSPs, ISPs, GPUs and video pipelines to reduce external component count and simplify system design.
• Automotive‑grade qualification: AEC‑Q100 qualification and a −40 °C to 125 °C operating range enable deployment in automotive environments.
• Comprehensive connectivity: Multiple high‑speed interfaces (USB 3.0, PCIe 3.0, SATA, dual 1 Gbps Ethernet) and legacy/peripheral buses support diverse system architectures.
• Security and device protection: Built‑in secure boot, crypto accelerators, isolation firewalls and secure storage facilitate device identity protection and trusted execution.
• On‑chip memory and performance headroom: Up to 2.5 MB L3 RAM and a 1.5 GHz dual‑A15 core setup provide local bandwidth and compute capacity for real‑time multimedia workloads.
• Debug and integration support: On‑chip debug with CTools technology and comprehensive peripheral sets speed bring‑up and software development.

Why Choose DRA776PPIGACDRQ1?

The DRA776PPIGACDRQ1 positions itself as a performance‑oriented, highly integrated processor for automotive and embedded infotainment systems. Its combination of dual Cortex‑A15 cores, dedicated DSP/image processors, GPU acceleration and extensive I/O addresses the needs of complex HMI, multimedia and ADAS‑adjacent designs while preserving system integration and security.

With automotive qualification, broad memory and interface support, and on‑chip resources optimized for video, graphics and vision tasks, this device is suited for designers building scalable, rugged in‑vehicle systems that require real‑time media processing and robust connectivity.

Request a quote or submit a request for pricing and availability for the DRA776PPIGACDRQ1 to start evaluating it for your next embedded or automotive infotainment design.
