DRA746PPIGABZRQ1

The DRA746PPIGABZRQ1 is an ARM® Cortex®-A15 based microprocessor from Texas Instruments' Jacinto DRA74x series. It provides two 32‑bit Cortex‑A15 cores running at 1.5 GHz with integrated co‑processors and a broad set of peripherals for embedded designs.

Designed for embedded and automotive environments, the device combines multi‑core processing, multiple memory controller options, rich display and connectivity interfaces, hardware security features, and AEC‑Q100 qualification for automotive applications.

Key Features

• Core Dual ARM® Cortex®‑A15 cores, 32‑bit, up to 1.5 GHz for compute‑intensive embedded tasks.
• Co‑processors Integrated ARM® Cortex®‑M4 plus C66x and IVA co‑processor options for offloaded signal processing and real‑time functions.
• Memory Support for DDR2, DDR3 and DDR3L memory controllers to match multiple system memory architectures.
• Display HDMI and LCD display controllers plus graphics acceleration for driving display‑equipped platforms.
• Connectivity Dual Ethernet capability with one 10/100 Mbps port and one 10/100/1000 Mbps port, and I²C for board control and peripherals.
• Storage and USB Integrated SATA support and multiple USB ports (three USB 2.0 and one USB 3.0) for storage and high‑speed peripheral connectivity.
• Security and Debug Boot security and secure debug features to protect boot integrity and control debug access.
• Automotive Qualification & Temperature Range AEC‑Q100 qualified and rated for operation from −40 °C to 125 °C.

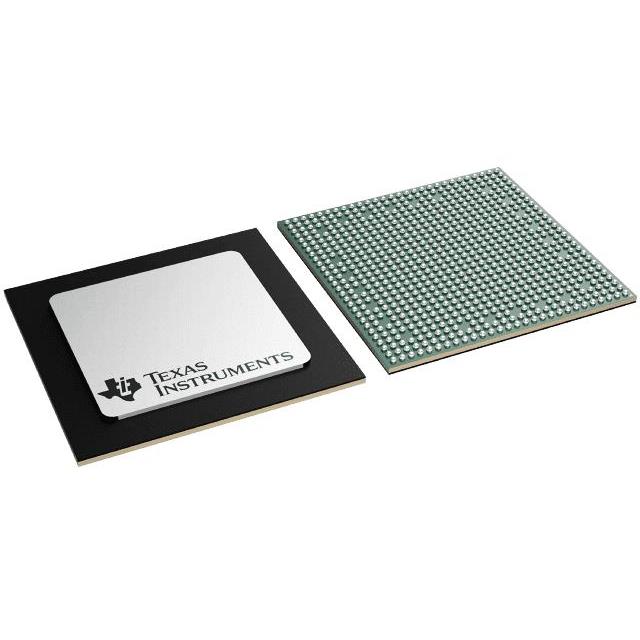

• Package & Mounting Available in a 760‑ball FCBGA package (760‑FCBGA, 23×23), surface‑mount for compact board designs.
• Compliance RoHS compliant.

Typical Applications

• Automotive systems AEC‑Q100 qualification and wide operating temperature make the device suitable for automotive embedded control and processing modules.
• Display‑centric embedded platforms HDMI and LCD controllers with graphics acceleration support systems that require integrated display output.
• Networked and storage‑enabled devices Integrated Gigabit Ethernet, 10/100 Ethernet, SATA and multiple USB ports support networked embedded appliances with local storage.
• Embedded control with offload On‑chip Cortex‑M4 and DSP/IVA co‑processors enable partitioning of real‑time control and media processing workloads.

Unique Advantages

• High single‑chip integration: Combines dual Cortex‑A15 cores with multiple co‑processors, memory controllers and peripheral interfaces to reduce BOM and board complexity.
• Automotive‑grade reliability: AEC‑Q100 qualification and −40 °C to 125 °C operating range support deployment in demanding automotive environments.
• Flexible memory support: DDR2/DDR3/DDR3L controller options allow designers to align memory choice with performance and cost targets.
• Comprehensive connectivity: Ethernet, SATA and USB 3.0 plus USB 2.0 ports provide a versatile set of interfaces for networking, storage and peripherals.
• Hardware security features: Boot security and secure debug help protect system integrity and control access during development and deployment.
• Compact surface‑mount package: 760‑FCBGA (23×23) packaging enables high‑density board designs while maintaining a broad I/O feature set.

Why Choose DRA746PPIGABZRQ1?

The DRA746PPIGABZRQ1 positions itself as a high‑integration microprocessor for embedded and automotive projects that require multi‑core Cortex‑A15 compute, extensive peripheral connectivity, and automotive qualification. Its combination of processing cores, co‑processors, display and networking interfaces, and security features makes it suitable for designs that demand both compute and I/O capability in a single device.

Supported by Texas Instruments' Jacinto DRA74x series lineage, the part is a fit for engineers and procurement teams seeking a robust, qualified MPU option with broad interface support and a wide operating temperature range.

Request a quote or submit a pricing inquiry to receive availability and lead‑time information for DRA746PPIGABZRQ1.
