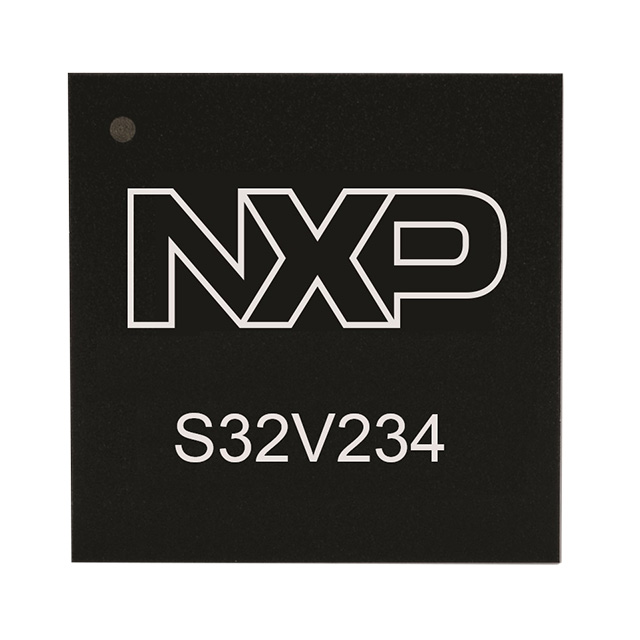

FS32V234BJN1VUB

The FS32V234BJN1VUB is a high-integration microprocessor IC from NXP Semiconductors' FS32V234 series, combining ARM® Cortex®-A53 application cores with an ARM® Cortex®-M4 companion core. This multi-core architecture is tailored for embedded systems that require mixed 64-bit application processing alongside a 32-bit real-time control domain.

Designed for industrial-grade applications, the device delivers a blend of compute, multimedia and I/O integration to support imaging, display and networked embedded systems while providing built-in security and safety features for robust system designs.

Key Features

• Cores and Performance  ARM® Cortex®-A53 64-bit quad-core cluster plus an ARM® Cortex®-M4 32-bit core, with the part specified at 800 MHz. The architecture separates application and real-time domains for flexible software partitioning.
• Memory and Storage  32-bit DRAM controller with support for DDR3, DDR3L and LPDDR2 memory types. QuadSPI with Execute-In-Place (XIP) and DDR error detection and correction schemes are provided.
• Graphics, Video and Imaging  Integrated graphics acceleration and GPU support, Display Control Unit (2D-ACE), dual VIU camera interfaces, 2x MIPI CSI-2 lanes and an Image Signal Processor (ISP) for video and image processing workflows.
• Connectivity and Peripherals  1 Gbps Ethernet with IEEE 1588 timers, PCI Express 2.0 endpoint/root complex support, FD‑CAN, FlexRay and standard serial interfaces including UART, SPI and I2C.
• Security and Boot  On-chip security features including AES, ARM TrustZone, Cryptographic Services Engine (CSE), secure boot support and an On-Chip One-Time Programmable controller (OCOTP_CTRL) for secure provisioning.
• Safety and Reliability  Series-level safety concept includes measures aligned with ISO 26262 and ASIL targets, memory fault detection and correction (ECC/parity), hardware CRC and watchdog support for system reliability.
• System and Power Management  Flexible run modes, peripheral clock gating and power gating of unused cores to optimize power consumption based on application needs.
• Analog and Timing  Includes a 12-bit SAR ADC and multiple timer resources (general purpose timers, periodic timers and IEEE 1588 timing support for networked timing).
• Package and Operating Range  Supplied in a 621-FCPBGA (17×17) surface-mount package; qualified for industrial operation across an operating temperature range of −40 °C to 105 °C.

Typical Applications

• Industrial Vision & Imaging  Use the dual MIPI CSI-2, VIUs and ISP to capture and process camera streams for machine vision, inspection and imaging tasks.
• Multimedia & Human-Machine Interfaces  Leverage the GPU, display controllers and 2D/3D graphics acceleration to drive high-resolution displays and responsive user interfaces.
• Networked Industrial Controllers  1 Gbps Ethernet with IEEE 1588 and robust peripheral set enables synchronized, high-throughput networking for industrial automation and control systems.
• Secure Embedded Systems  Integrated security engines, TrustZone and secure boot capabilities support designs that require hardware-backed encryption and secure provisioning.

Unique Advantages

• Heterogeneous Multi-Core Architecture: Combines 64-bit application cores with a 32-bit real-time core to isolate real-time control from high-level processing tasks.
• Integrated Imaging and Graphics: Built-in ISP, VIU, MIPI CSI-2 and GPU enable compact multimedia and vision systems with reduced external component count.
• Comprehensive Security Suite: On-chip AES, TrustZone, CSE and OCOTP_CTRL support secure boot and on-device key management for protected deployments.
• Industrial Qualification and Robust Operation: Industrial-grade qualification and an operating range of −40 °C to 105 °C suit demanding embedded environments.
• Memory Reliability Features: ECC/parity support for memories and DDR fault detection/correction schemes improve system availability and data integrity.

Why Choose FS32V234BJN1VUB?

The FS32V234BJN1VUB offers a balanced combination of application-level compute, real-time control and specialized multimedia capabilities in a single, industrial-qualified package. Its integrated security, safety-oriented design measures and extensive I/O make it well suited for embedded systems that require imaging, display and high-speed networking alongside robust operational reliability.

This part is ideal for engineering teams building complex industrial embedded products that demand mixed-domain processing, on-chip multimedia acceleration and hardware-backed security while minimizing external components and preserving design flexibility.

Request a quote or submit an inquiry to receive pricing and availability for FS32V234BJN1VUB.
