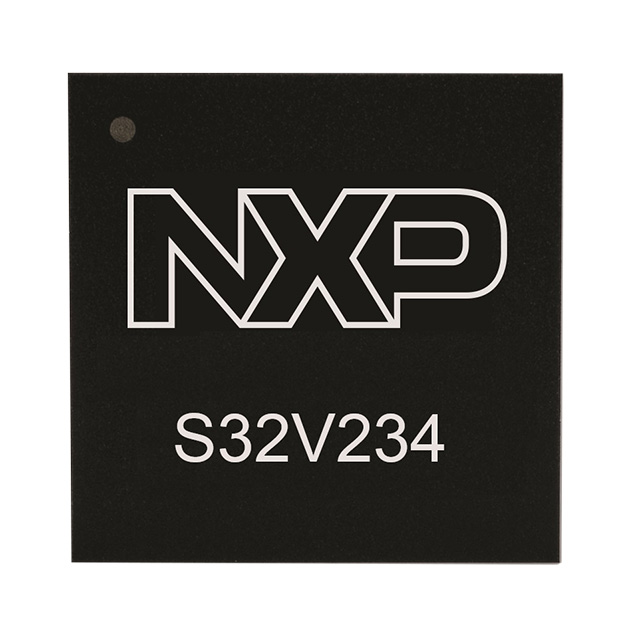

FS32V234BMN1VUB

The FS32V234BMN1VUB is a heterogeneous microprocessor IC featuring quad 64-bit ARM® Cortex®-A53 cores alongside a single 32-bit ARM® Cortex®-M4 core. Designed for industrial embedded systems, it combines compute performance, imaging/graphics capability and integrated security to support networked vision, HMI and control applications.

With a 621-FCPBGA (17×17) package, 1 Gbps Ethernet, multiple display and camera interfaces, and industrial temperature qualification, this device targets designs that require real-time control, multimedia processing and robust system-level protection.

Key Features

• Core Architecture Quad ARM® Cortex®-A53 64-bit cluster plus a single ARM® Cortex®-M4 32-bit core, providing a heterogeneous combination for application processing and real-time control.
• Performance Processor speed listed at 800 MHz for the part, with NEON™ MPE multimedia co-processor and DSP capabilities to accelerate signal and multimedia workloads.
• Memory Subsystem Integrated 32-bit DRAM controller supporting DDR3, DDR3L and LPDDR2 memory types; QuadSPI with Execute-In-Place (XIP) and DDR parity/ECC features documented for system integrity.
• Imaging & Graphics Display Control Unit (2D-ACE), GPU support and video input capability including MIPI CSI-2 and VIU units, plus ISP and APEX2-CL image cognition processors for camera and display pipelines.
• Communications & I/O 1 Gbps Ethernet, PCI Express 2.0 endpoint/root complex support, FD-CAN, FlexRay, UART, SPI and I2C interfaces for broad connectivity in embedded networks.
• Security & System Protection Hardware security elements including AES, ARM TrustZone, CSE, boot protection and OCOTP_CTRL; system JTAG and debug ports available for development and secure boot flows.
• Reliability & Diagnostics ECC/parity support for memories, hardware CRC, watchdog and fault detection/correction schemes for DRAM and boot flash to strengthen system robustness.
• Package & Environmental 621-FCPBGA surface-mount package (17×17 mm) rated for operating temperatures from −40 °C to 105 °C and listed as Industrial qualified.

Typical Applications

• Industrial Vision & Imaging Camera input, ISP and image cognition processors enable multi-camera capture and preprocessing for inspection and visual analytics.
• Human‑Machine Interfaces (HMI) Display control, GPU frame buffer support and rich I/O let the device drive advanced graphical interfaces and local user interaction.
• Networked Embedded Systems 1 Gbps Ethernet and PCIe support make the part suitable for connected controllers, gateways and industrial communication nodes.
• Robotics & Motion Control Heterogeneous cores with real-time M4 control and A53 application processing support coordinated sensor fusion, motor control and higher‑level decision functions.

Unique Advantages

• Heterogeneous processing Combines 64-bit application cores with a dedicated 32-bit real-time core, allowing separation of real-time control and high-level processing within one device.
• Integrated imaging and graphics On-chip ISP, MIPI CSI-2 inputs, VIU units and GPU support reduce external component count for camera-based systems and HMIs.
• Robust memory and data integrity DDR controller features and ECC/parity support help detect and mitigate memory errors to improve system uptime.
• Comprehensive security primitives AES, TrustZone, CSE and one-time programmable control provide building blocks for secure boot and protected execution environments.
• Industrial temperature range Operation from −40 °C to 105 °C suits demanding embedded environments where temperature resilience is required.
• Compact, manufacturable package 621-FCPBGA (17×17 mm) surface-mount package facilitates dense PCB layouts and automated assembly.

Why Choose FS32V234BMN1VUB?

The FS32V234BMN1VUB positions itself as a versatile, industrial-grade MPU that blends application-level performance with deterministic real-time control and on-chip multimedia subsystems. Its combination of ARM® Cortex®-A53 and Cortex®-M4 cores, memory interface flexibility and extensive I/O support makes it suitable for embedded systems that require imaging, networking and secure operation in a single device.

Designed and manufactured by NXP Semiconductors, the part provides a feature set aimed at reducing BOM complexity while offering diagnostics and security primitives that support long-term robustness and scalable deployments.

Request a quote or submit a product inquiry to receive pricing and availability for FS32V234BMN1VUB.
