LS1017AXE7HNA

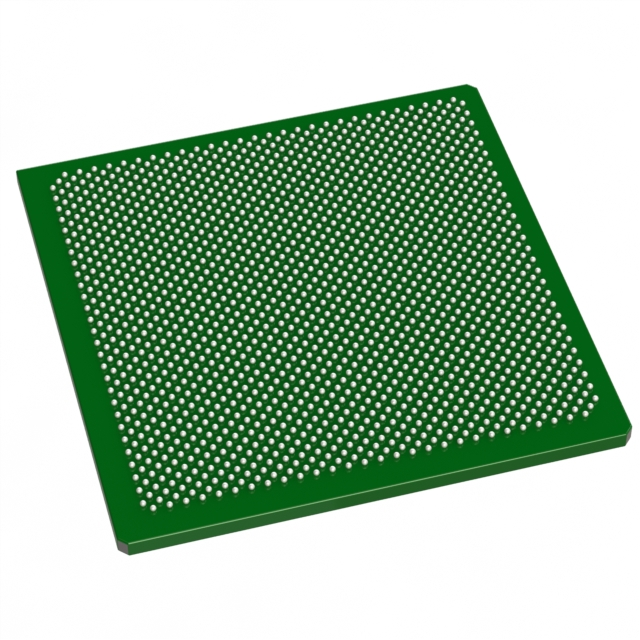

The LS1017AXE7HNA is an NXP QorIQ Layerscape microprocessor IC featuring a single ARM® Cortex®-A72 64‑bit core running at 800 MHz in a 448‑FBGA (17×17) surface‑mount package. It combines single‑core processing with a suite of high‑speed I/O and security capabilities targeted at embedded and industrial designs.

This device is suited for industrial and networking applications including gateways, controllers and embedded HMIs where a compact, industrial‑qualified processor with integrated interfaces and security features is required.

Key Features

• Core and Performance Single ARM® Cortex®‑A72 64‑bit core operating at 800 MHz for general‑purpose embedded processing.
• Memory Support Integrated controllers for DDR3L SDRAM and DDR4 SDRAM to support modern memory configurations.
• High‑Speed Networking Multiple Ethernet interfaces: one 1 Gbps port and five 2.5 Gbps ports for flexible wired connectivity options.
• Storage and USB One SATA 6 Gbps interface and two USB 3.0 ports for high‑throughput storage and peripheral connectivity.
• Security Hardware security features including Secure Boot and ARM TrustZone® for trusted platform implementations.
• Automotive/Industrial Interfaces Additional CANbus interface for industrial and vehicle network integration.
• Graphics Acceleration On‑chip graphics acceleration to support display and HMI tasks.
• Package and Mounting 448‑FBGA (17×17) supplier device package, surface mount.
• Qualification and Temperature Industrial qualification with operating temperature range from −40 °C to 105 °C.
• Environmental RoHS compliant.

Typical Applications

• Control and factory automation — Suitable for robotics controllers, I/O modules and motion controllers where deterministic embedded processing and industrial interfaces are needed.
• Transportation — Use in gateways, HMI and embedded controllers for mass transit and rail applications that require industrial qualification.
• IoT and networking gateways — Acts as a compact processing hub for edge gateways and networking appliances with multiple Ethernet ports and high‑speed I/O.
• Programmable logic controllers (PLCs) and industrial PCs — Integration into PLCs and industrial computers that need secure boot, CANbus and broad memory support.
• Avionics and embedded HMIs — Graphics acceleration and industrial temperature rating enable human‑machine interfaces and embedded displays in demanding environments.

Unique Advantages

• Industrial qualification and temperature rating: Designed for operation from −40 °C to 105 °C to meet long‑life industrial deployment requirements.
• Broad high‑speed I/O: Combined Ethernet (1×1 Gbps, 5×2.5 Gbps), SATA 6 Gbps and USB 3.0 provide versatile connectivity for networking and storage.
• Built‑in platform security: Secure Boot and TrustZone® support trusted platform implementation and secure firmware loading.
• Flexible memory options: Support for both DDR3L and DDR4 SDRAM enables designers to choose memory that matches performance and cost targets.
• Compact BGA package: 448‑FBGA (17×17) surface‑mount package provides a compact footprint for space‑constrained embedded boards.
• Graphics support for HMI: Graphics acceleration capability simplifies integration of displays and user interfaces.

Why Choose LS1017AXE7HNA?

The LS1017AXE7HNA positions itself as a compact, industrially qualified single‑core 64‑bit processor that brings together essential interfaces, security features and graphics acceleration for embedded and networking applications. Its combination of DDR3L/DDR4 memory support, multiple Ethernet ports, SATA and USB 3.0 provides a balanced platform for gateway, controller and HMI designs.

This part is well suited for engineers designing industrial automation, transportation systems, IoT and embedded networking equipment that require reliable operation across a wide temperature range and integrated security capabilities from a reputable semiconductor manufacturer.

Request a quote or submit an inquiry to receive pricing and availability information for LS1017AXE7HNA.
