LS1046ASE8Q1A
| Part Description |

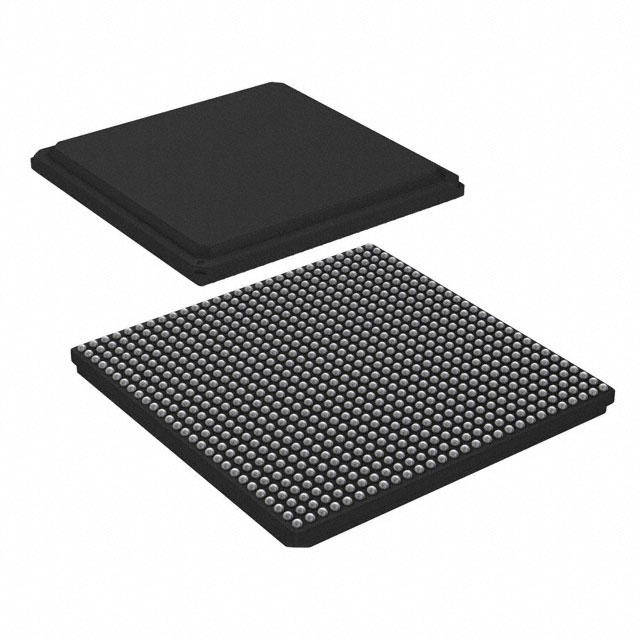

ARM® Cortex®-A72 Microprocessor IC QorIQ® Layerscape 4 Core, 64-Bit 1.6GHz 780-FCPBGA (23x23) |
|---|---|
| Quantity | 270 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | LS1046A |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Core Processor | ARM® Cortex®-A72 | Device Package | 780-FCPBGA (23x23) | ECCN | 5A002A1 NXP | ||
|---|---|---|---|---|---|---|---|
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 4 Core, 64-Bit | ||
| Operating Temperature | 0°C ~ 105°C | Package / Case | 780-FBGA, FCBGA | RAM Controllers | DDR4 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | SATA | SATA 6Gbps (1) | ||
| Security Features | Secure Boot, TrustZone® | Speed | 1.6GHz | Supplier Device Package | 780-FCPBGA (23×23) | ||
| USB | USB 3.0 (3) + PHY |
Overview of LS1046ASE8Q1A – IC MPU QORIQ 1.6GHZ 780FCPBGA
The LS1046ASE8Q1A is an NXP QorIQ Layerscape microprocessor featuring four ARM® Cortex®‑A72 64‑bit cores at 1.6 GHz in a 780‑FCPBGA (23 mm × 23 mm) package. It integrates high‑speed I/O, memory controllers and hardware acceleration to support embedded networking and communications applications.
Designed for embedded systems requiring multicore performance, extensive networking interfaces and on‑chip security, this device delivers a compact, surface‑mount solution with DDR4 support, multiple Ethernet options and hardware data‑path acceleration.
Key Features
- Core & cache — Four ARM® Cortex®‑A72 64‑bit cores with single‑threaded cores and a shared 2 MB L2 cache; per‑core L1 instruction and data caches as specified in the device datasheet.
- Performance — 1.6 GHz core frequency for multi‑threaded embedded workloads and system control tasks.
- Memory — DDR4 SDRAM controller with ECC and interleaving support; DDR4 interface details per datasheet (up to 2.1 GT/s listed in technical data).
- Network interfaces & acceleration — Multiple Ethernet options including two 10GbE, one 2.5GbE and four 1GbE ports; Data Path Acceleration Architecture (DPAA) for packet parsing/classification (FMan), queue management (QMan), buffer management (BMan), cryptography acceleration (SEC) and IEEE 1588 support.
- High‑speed I/O — Three PCIe 3.0 controllers, SATA 6 Gbps controller, three USB 3.0 controllers with integrated PHY and up to eight SerDes lanes supporting high‑speed peripheral connectivity (per datasheet).
- Storage & peripheral controllers — Integrated flash controller (IFC) for NAND/NOR, QSPI, SPI, enhanced SD host (SD 3.0 / eMMC 4.4/4.5) and multiple UARTs and I2C controllers for system integration.
- Security — Secure Boot and ARM TrustZone® support for platform integrity and trusted execution.
- Package & reliability — 780‑FBGA (780‑FCPBGA) 23 mm × 23 mm surface‑mount package; consumer qualification and RoHS compliance; operating temperature range 0 °C to 105 °C.
Typical Applications
- Network appliances — Routing, switching and edge compute devices that require multiple 10GbE/1GbE interfaces and packet processing acceleration.
- Security and firewall appliances — On‑chip cryptographic acceleration and Secure Boot/TrustZone® enable secure packet processing and trusted platform deployment.
- Industrial and edge gateways — DDR4 memory with ECC, diverse I/O (PCIe, SATA, USB, SD) and hardened thermal monitoring for embedded gateway functions.
- Storage and media controllers — SATA 6 Gbps plus integrated flash controllers and USB 3.0 ports for local storage and media handling.
Unique Advantages
- Highly integrated multicore processing: Four Cortex‑A72 cores and a shared 2 MB L2 cache provide a compact compute foundation for embedded workloads.
- Comprehensive networking and acceleration: Multiple 10GbE/2.5GbE/1GbE interfaces combined with DPAA offloads packet parsing, queuing and buffer management to improve data‑plane efficiency.
- Extensive high‑speed I/O: PCIe 3.0, SATA 6 Gbps and USB 3.0 with integrated PHY minimize external glue logic for peripheral expansion and storage connectivity.
- Built‑in platform security: Secure Boot and TrustZone® provide foundational mechanisms for device integrity and secure execution environments.
- Compact, standardized packaging: 780‑FCPBGA (23×23 mm) surface‑mount package simplifies board layout for space‑constrained embedded designs.
- Manufacturing and compliance: RoHS‑compliant construction and consumer qualification support typical embedded production requirements.
Why Choose LS1046ASE8Q1A?
The LS1046ASE8Q1A positions itself as a performance‑oriented, highly integrated Layerscape solution for embedded networking, security and gateway applications. The combination of four 64‑bit Cortex‑A72 cores at 1.6 GHz, DDR4 with ECC, extensive high‑speed I/O and DPAA hardware acceleration provides a balanced platform for data‑plane and control‑plane tasks.
Backed by NXP Semiconductors engineering and documented technical data, this device is suited to designers who need multicore processing, robust I/O options and built‑in security in a compact surface‑mount package for production‑grade embedded systems.
