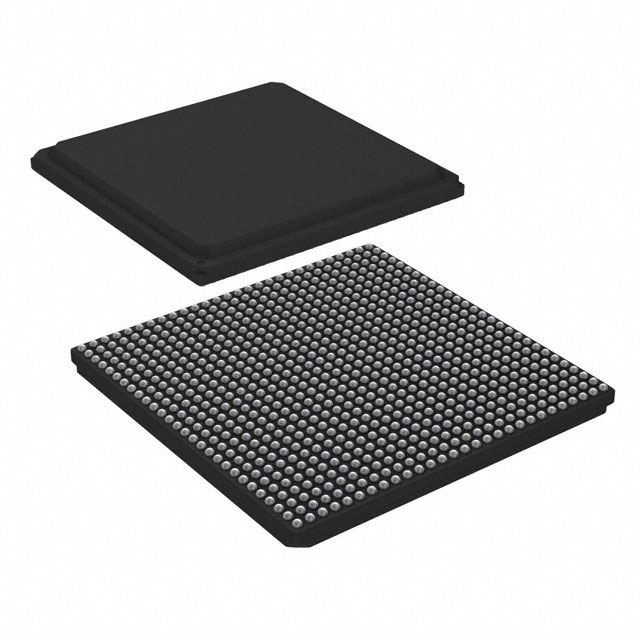

LS1048AXE7Q1A
| Part Description |
ARM® Cortex®-A53 Microprocessor IC QorIQ® Layerscape 4 Core, 64-Bit 1.6GHz 780-FBGA (23x23) |
|---|---|
| Quantity | 92 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | LS1048A |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Core Processor | ARM® Cortex®-A53 | Device Package | 780-FBGA (23x23) | ECCN | 5A002A1 FRE | ||
|---|---|---|---|---|---|---|---|
| Ethernet | 10GbE (2), 1GbE (8) | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 4 Core, 64-Bit | ||
| Operating Temperature | -40°C ~ 105°C | Package / Case | 780-BFBGA, FCBGA | RAM Controllers | DDR4 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | SATA | SATA 6Gbps (1) | ||
| Security Features | Secure Boot, TrustZone® | Speed | 1.6GHz | Supplier Device Package | 780-FBGA (23×23) | ||
| USB | USB 3.0 (2) + PHY |
Overview of LS1048AXE7Q1A – ARM® Cortex®-A53 Microprocessor IC QorIQ® Layerscape 4‑Core 1.6 GHz (780‑FBGA)
The LS1048AXE7Q1A is a QorIQ® Layerscape communications microprocessor featuring four ARM® Cortex®-A53 64‑bit cores running up to 1.6 GHz. It combines multicore compute with NXP’s DPAA2 datapath architecture and integrated networking peripherals to address intelligent edge, virtualized networking, and industrial communications use cases.
Designed for embedded and industrial applications, the device emphasizes system integration—on-chip DDR4 memory controller, multi-rate Ethernet, storage and high-speed I/O—together with platform security capabilities for protected boot and runtime isolation.
Key Features
- CPU — Four ARM® Cortex®-A53 64‑bit cores, up to 1.6 GHz; includes coherent interconnect and L2 cache per family specification.
- Memory — Integrated DDR4 memory controller for high-bandwidth system memory.
- Networking — Multiple Ethernet interfaces including two 10GbE and eight 1GbE ports for diverse connectivity and aggregation scenarios.
- Storage & USB — One SATA 6 Gbps port and two USB 3.0 ports with PHY for high-speed storage and peripheral connectivity.
- Security & Boot — Secure Boot and ARM® TrustZone® support to enable system integrity and trusted execution environments.
- Datapath Acceleration — Implements NXP’s DPAA2 datapath acceleration architecture to offload and share networking accelerators among CPU cores for efficient packet processing.
- Package & Mounting — 780‑FBGA (23 × 23 mm) FCBGA package; surface mount.
- Operating Range & Qualification — Industrial qualification with operating temperature range −40 °C to 105 °C.
Typical Applications
- Intelligent Edge Access — Handles protocol processing and control-plane tasks for edge access devices while enabling hardware offloads for data-plane acceleration.
- Network Function Virtualization (NFV) — Provides multicore general-purpose compute with datapath acceleration to support virtualized network functions.
- Wireless Access Point Control — Serves as a control and management processor for high-performance wireless access infrastructure.
- Virtual CPE and iNIC — Enables virtual customer premises equipment and intelligent NIC implementations with integrated networking and storage interfaces.
- Industrial Communications — Industrial-grade temperature range and connectivity for robust embedded networking and control applications.
Unique Advantages
- Quad-Core 64‑Bit Compute: Four Cortex‑A53 cores at up to 1.6 GHz deliver scalable general-purpose processing for control, management and application tasks.
- Integrated High‑Speed I/O: On-chip 10GbE/1GbE ports, SATA 6 Gbps and USB 3.0 with PHY reduce external interface components and simplify board design.
- Datapath Acceleration (DPAA2): Hardware acceleration and queue/buffer management support efficient packet processing and offload of networking workloads from CPUs.
- Security and Trusted Boot: Secure Boot and TrustZone® provide foundational platform security for trusted firmware and partitioned execution.
- Industrial Qualification: −40 °C to 105 °C operating range and industrial qualification support deployment in demanding embedded environments.
- Memory Performance: DDR4 memory controller on-chip enables higher system bandwidth for networking and data-plane tasks.
Why Choose LS1048AXE7Q1A?
The LS1048AXE7Q1A positions itself as a balanced, highly integrated communications processor for embedded and industrial networking designs. By pairing quad-core ARM® Cortex®-A53 performance with NXP’s DPAA2 datapath acceleration and a broad set of high-speed interfaces, it simplifies system architecture while enabling robust networking and control functionality.
This device is well suited to designers building intelligent edge systems, NFV platforms, wireless infrastructure control, virtual CPE and industrial communications equipment that require a combination of multicore compute, secure boot, integrated I/O and industrial-grade operation. Backed by NXP’s software toolkit and family-level support, it offers a scalable platform for long-term deployment and software ecosystem integration.
Request a quote or submit an inquiry to begin procurement of the LS1048AXE7Q1A for your design and get assistance with volume pricing and lead-time details.
