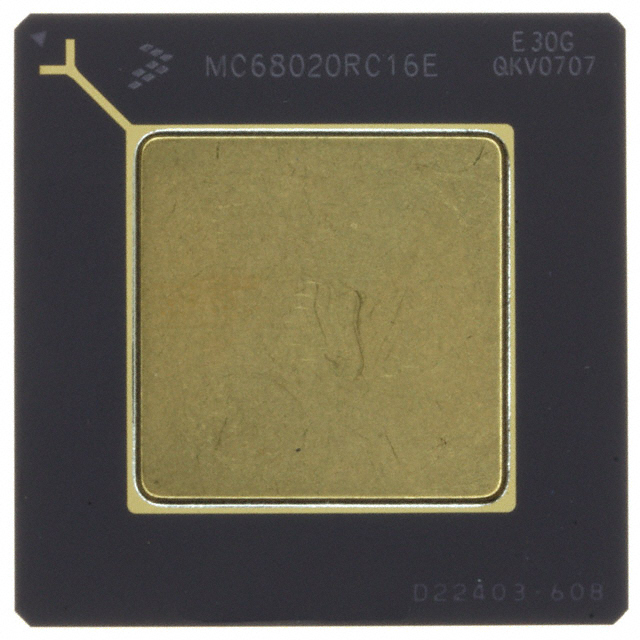

MC68020CRC16E

The MC68020CRC16E is a 32‑bit, second‑generation enhanced microprocessor core in the MC68020 series, manufactured by NXP Semiconductors. It implements a single 68020 core running at 166 MHz and is targeted at embedded and industrial applications that require a robust 32‑bit processing engine.

With 5 V I/O, a through‑hole 114‑PGA (34.55×34.55 mm) package and an industrial temperature rating, this device is suited to designs needing predictable electrical interfaces, mechanical serviceability and operation across –40 °C to 85 °C.

Key Features

• Core and Architecture Single 68020 core with a 32‑bit data path, delivered as a second‑generation enhanced MC68020 microprocessor.
• Performance 166 MHz operating frequency for compute‑intensive embedded tasks.
• On‑chip Enhancements Series documentation references on‑chip cache memory and a coprocessor interface, supporting improved instruction throughput and external coprocessor connectivity.
• Voltage and I/O 5 V I/O compatibility for systems designed around legacy TTL/5 V signaling.
• Package and Mounting 114‑PGA (34.55×34.55 mm) package in a through‑hole mounting style for board serviceability and mechanical robustness.
• Industrial Qualification Specified for industrial use with an operating temperature range of –40 °C to 85 °C.
• Environmental Compliance RoHS‑compliant material status.

Typical Applications

• Industrial Control Embedded controllers and automation equipment that require a stable 32‑bit processing core across industrial temperature ranges.
• Embedded Systems General embedded platforms benefiting from a 32‑bit architecture and a coprocessor interface for specialized processing expansion.
• Serviceable/Repairable Systems Designs where through‑hole 114‑PGA packaging simplifies replacement and maintenance.

Unique Advantages

• Proven 32‑bit Architecture: The 68020 core provides established 32‑bit processing capability suitable for a wide range of embedded workloads.
• 166 MHz Core Performance: Provides deterministic clocked performance for time‑sensitive embedded tasks.
• On‑Chip Cache and Coprocessor Interface: On‑chip cache memory and a documented coprocessor interface enable improved instruction throughput and options for hardware acceleration where required.
• Industrial Temperature Range: Rated from –40 °C to 85 °C to meet the demands of industrial environments.
• Through‑Hole 114‑PGA Package: The 114‑PGA (34.55×34.55 mm) form factor supports durable mechanical mounting and straightforward field replacement.
• 5 V I/O Compatibility: Maintains compatibility with legacy 5 V system designs and peripheral interfaces.

Why Choose MC68020CRC16E?

The MC68020CRC16E combines a second‑generation enhanced 68020 32‑bit core with 166 MHz performance, industrial qualification and a serviceable 114‑PGA through‑hole package, making it suitable for embedded and industrial designs that prioritize stability, maintainability and established interface compatibility. Backed by NXP Semiconductors' MC68020 series documentation, the device supports on‑chip cache and a coprocessor interface to help designers optimize performance and extend functionality.

This part is appropriate for customers building industrial embedded systems or equipment that require 5 V I/O, through‑hole packaging and operation across –40 °C to 85 °C, where proven 32‑bit processing and the option to add coprocessor functionality are important design considerations.

Request a quote or submit an inquiry for pricing and availability of the MC68020CRC16E to receive further procurement and lead‑time information.
