MC68EC040RC20A

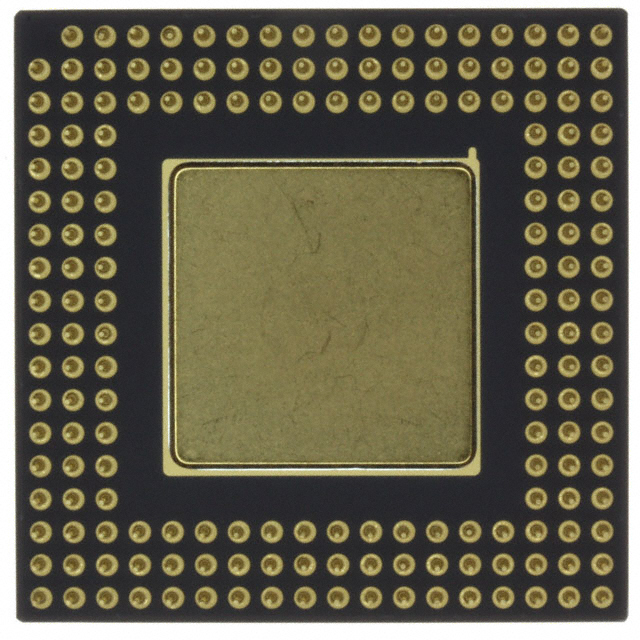

The MC68EC040RC20A is a 32‑bit microprocessor in the MC68EC040 family, implementing a single 68040 core running at 20 MHz. It is supplied in a 179‑PGA through‑hole package and is targeted at embedded designs requiring a compact, socketable 32‑bit MPU solution.

Designed for embedded and industrial applications, this device offers a 20 MHz core, 5 V I/O, and serial communication capability (SCI), providing a straightforward integration path where a 32‑bit processing core and through‑hole mounting are required. The part is RoHS compliant and specified for operation from 0 °C to 70 °C.

Key Features

• Core & Architecture  68040 core with a single 32‑bit processor core suitable for 32‑bit embedded computing.
• System Performance  Fixed 20 MHz clock rate providing deterministic processing performance for legacy and embedded workloads.
• Power & I/O  5 V I/O voltage level compatible with 5 V embedded systems.
• Interfaces  Includes SCI (Serial Communication Interface) for serial peripheral and communications integration.
• Package & Mounting  179‑PGA package (179‑PGA, 47.24x47.24) designed for through‑hole mounting and socketed board layouts.
• Operating Range  Specified operating temperature range of 0 °C to 70 °C for commercial‑grade embedded applications.
• Environmental Compliance  RoHS compliant.
• MC68EC040 Variant Notes  As a member of the MC68040 family, documentation indicates that floating‑point and memory management unit details do not apply to the MC68EC040 variant; refer to the family user manual for applicable device differences.

Typical Applications

• Embedded control systems  Use the 32‑bit 68040 core and SCI interface for control logic, protocol handling, and peripheral management in embedded products.
• Industrial equipment  Through‑hole 179‑PGA package simplifies replacement, prototyping, and board‑level serviceability in industrial assemblies.
• Legacy system maintenance  Drop‑in compatible form factor and 5 V signalling make it suitable for maintaining or upgrading legacy M68040‑based electronics.
• Development and prototyping  Socketable PGA package facilitates development, evaluation, and firmware iteration on bench systems and prototype boards.

Unique Advantages

• Socketable PGA package: 179‑PGA through‑hole format enables easy insertion, removal, and board‑level servicing for development and repair.
• Clear, constrained thermal range: Specification of 0 °C to 70 °C allows straightforward thermal planning for commercial embedded applications.
• Single 32‑bit processing core: Simple, deterministic 68040 core operation at 20 MHz fits applications that require predictable performance.
• Standard 5 V I/O: Compatibility with 5 V system logic reduces level‑shifting requirements in existing 5 V designs.
• Serial communication support: Integrated SCI simplifies connection to peripherals, modems, and serial devices without adding discrete UART components.
• RoHS compliant: Helps satisfy environmental and regulatory requirements for finished products.

Why Choose MC68EC040RC20A?

The MC68EC040RC20A positions itself as a practical, serviceable 32‑bit MPU solution for embedded and legacy applications that require a socketable PGA package, standard 5 V I/O, and a reliable 20 MHz 68040 core. Its combination of through‑hole mounting and documented variant behavior in the MC68040 family makes it well suited where maintainability and clear specification boundaries (such as floating‑point and MMU differences) matter.

Engineers and procurement teams selecting this part will find a compact, RoHS‑compliant microprocessor that integrates easily into existing 5 V boards, facilitates prototyping and field replacement, and aligns with commercial operating temperature requirements.

Request a quote or submit an inquiry to obtain availability and pricing for the MC68EC040RC20A for your next embedded project.
