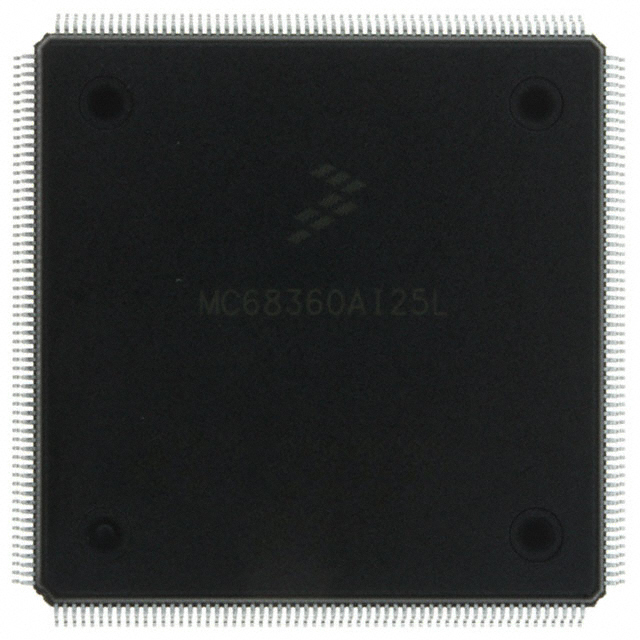

MC68MH360AI25L

The MC68MH360AI25L is a CPU32+ microprocessor in the MC68 series from NXP Semiconductors. It implements a single 32‑bit core running at 25 MHz with integrated communications and memory controller functionality targeted at embedded systems.

Designed for embedded communications and control applications, the device combines a CPU32+ core with on‑chip communications co‑processors and DRAM controller capability to simplify system design and reduce external component count.

Key Features

• Core  The MC68MH360AI25L integrates a CPU32+ single core with a 32‑bit bus width for deterministic embedded processing.
• Clock & I/O Voltage  Operates at a 25 MHz core clock frequency with 5 V I/O signaling for compatibility with legacy embedded systems.
• Communications Co‑processors  Includes communications and CPM co‑processor functionality to offload protocol and data‑movement tasks from the main CPU.
• Memory Controller  Built‑in DRAM controller to manage external dynamic memory interfaces and simplify board-level memory design.
• Network Interface  Integrated 10 Mbps Ethernet controller (1 port) for low‑speed network connectivity.
• Serial and Channel Interfaces  Additional serial channel controller (SCC) support and QMC (QUICC Multichannel Controller) features for multi‑channel serial routing and time‑slot assignment as documented in the series reference materials.
• Package & Mounting  Supplied in a 240‑lead FQFP package (32 × 32 mm) and specified for surface‑mount assembly.
• Operating Range & Compliance  Commercial temperature range of 0 °C to 70 °C and RoHS compliant.

Typical Applications

• Embedded Communications  Multi‑channel serial routing, protocol handling and low‑speed Ethernet enable deployment in communication interface modules and gateways.
• Network Equipment  Use in network control and peripheral functions where a dedicated communications co‑processor and 10 Mbps Ethernet are required.
• Industrial and Control Systems  On‑board DRAM controller and serial channel support make the device suitable for control logic, I/O aggregation and supervisory tasks.
• Legacy and Mixed‑Signal Systems  5 V I/O and a 240‑lead FQFP package support integration into existing embedded platforms and high‑pin‑count designs.

Unique Advantages

• Integrated Communications Co‑processing: On‑chip communications and CPM functionality reduce the need for external protocol processors and simplify firmware partitioning.
• Onboard DRAM Controller: Built‑in DRAM controller lowers board complexity and shortens development time for memory‑backed applications.
• Flexible Serial I/O (QMC/SCC): QMC and SCC features documented in the MC68 series provide multi‑channel serial routing and time‑slot assignment for telecom and data‑streaming use cases.
• High‑pin‑count FQFP Package: The 240‑lead (32 × 32 mm) FQFP enables extensive I/O breakdown and dense signal routing for complex embedded systems.
• Commercial Temperature and RoHS Compliance: Rated 0 °C to 70 °C and RoHS compliant for standard commercial embedded deployments.
• Standard 5 V I/O: Compatibility with 5 V signaling simplifies integration into existing boards and peripheral interfaces.

Why Choose MC68MH360AI25L?

The MC68MH360AI25L positions itself as a compact, integrated solution for embedded applications that require a CPU32+ core alongside dedicated communications functionality and memory control. Its combination of a 32‑bit core, communications co‑processors, DRAM controller and integrated 10 Mbps Ethernet supports endpoint designs where on‑chip integration reduces BOM and simplifies system firmware.

Manufactured by NXP Semiconductors as part of the MC68 family, the device is suited to engineers building communications modules, control systems and network peripherals that benefit from the series’ documented QMC features and serial interface capabilities.
