MC68SEC000AA10R2

The MC68SEC000AA10R2 is a static embedded microprocessor from NXP Semiconductors based on the EC000 core architecture. It provides a single 32-bit core running at 10 MHz in a 64-pin QFP (14 × 14 mm) surface-mount package.

Designed for low-power embedded applications, the MC68SEC000 series targets battery-operated and portable devices where power management, small footprint, and compatibility with existing M68000 family software are important.

Key Features

• Core & Architecture EC000 core with a single 32-bit processing core; architecture provides established M68000-family instruction and addressing capabilities as detailed in the MC68SEC000 product brief.
• Performance 10 MHz operating frequency suitable for cost-sensitive, low-power embedded control tasks.
• Power Management Static HCMOS design with low-power modes. The series documentation reports very low standby current and the ability to stop the processor clock for power savings.
• Voltage Operation Documented operation in both 3.3 V and 5.0 V systems (per series product brief).
• Memory and Bus 32-bit data/address architecture with support for DRAM controllers and a memory-mapped I/O approach; linear addressing range described in the series brief.
• Interfaces Includes a 10 Mbps Ethernet interface (1) as listed in the device specification set.

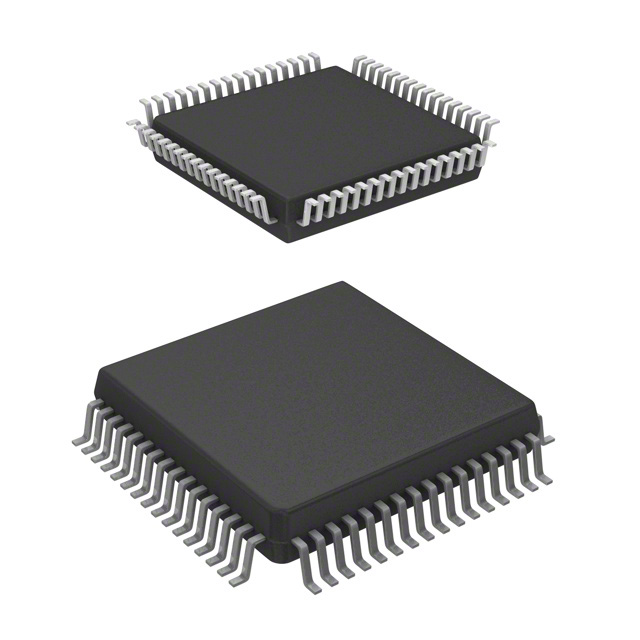

• Package & Mounting 64-pin Quad Flat Pack (QFP) 14 × 14 mm, surface mount.
• Operating Temperature Rated for 0 °C to 70 °C operation.
• Regulatory RoHS compliant.
• Graphics No graphics acceleration.

Typical Applications

• Portable Consumer Electronics — Low-power static operation and small package footprint suit battery-operated handheld devices and electronic games.
• Personal Digital Assistants & Handheld Instruments — Compact QFP package and low standby current support compact, battery-powered measuring equipment and PDAs.
• Embedded Control Systems — 32-bit EC000 core and memory-mapped I/O make the device suitable for general embedded control and interface tasks.

Unique Advantages

• Low-power static design: Static HCMOS architecture and the ability to stop the processor clock reduce power consumption in standby and active modes.
• Multi-voltage operation: Supports both 3.3 V and 5.0 V systems for flexible board-level integration.
• Compact surface-mount package: 64-pin QFP (14 × 14 mm) enables small PCB footprint for space-constrained designs.
• Established software ecosystem: Series documentation indicates compatibility with M68000-family code and existing development tools, easing software reuse and reducing development time.
• RoHS compliant: Meets lead-free requirements for modern electronics manufacturing processes.

Why Choose MC68SEC000AA10R2?

The MC68SEC000AA10R2 positions itself as a cost-effective, low-power 32-bit microprocessor option for designers of portable and battery-operated products. Its static EC000 core, multi-voltage operation, and small 64-QFP package make it a practical choice when board space and power consumption are primary concerns.

With documented compatibility across the M68000 family and support from established development tools, this device supports software reuse and predictable integration into existing embedded designs, delivering long-term value for projects that prioritize low power, compact form factor, and straightforward system-level integration.
