MC68SEC000AE10

The MC68SEC000AE10 is a static embedded microprocessor based on the EC000 core delivering a 32-bit architecture at a 10 MHz clock rate in a compact 64‑lead LQFP (10 × 10 mm) package. Designed for low-power embedded applications, this device supports both 3.3 V and 5.0 V operation and offers static standby and normal operating power modes for battery-conscious designs.

This part targets portable and space-constrained consumer and industrial products where low power consumption, small footprint, and existing software tool support reduce time to market and simplify system integration.

Key Features

• Core & Architecture  The EC000 single-core 32‑bit processor provides an internal 32‑bit architecture with eight 32‑bit address registers and eight 32‑bit data registers as documented for the MC68SEC000 series.
• Instruction Set & Addressing  Upward object-code compatibility with the M68000 family, supporting 56 instruction types, operations on five main data types, and 14 addressing modes with a 16‑Mbyte linear addressing range.
• Clock Speed  10 MHz operating frequency for this specific part number (MC68SEC000AE10).
• Power & Low‑Power Modes  Static design with the ability to stop the processor clock, typical 0.5 µA current consumption in static standby and approximately 15.0 mA in normal operation at 3.3 V (values from product brief).
• Voltage Support  Operates in either 3.3 V or 5.0 V systems as described in the product information.
• Memory & Bus  Includes DRAM controller support as indicated in the product specifications.
• Interfaces  Integrated 10 Mbps Ethernet interface (1) as listed in the device specifications.

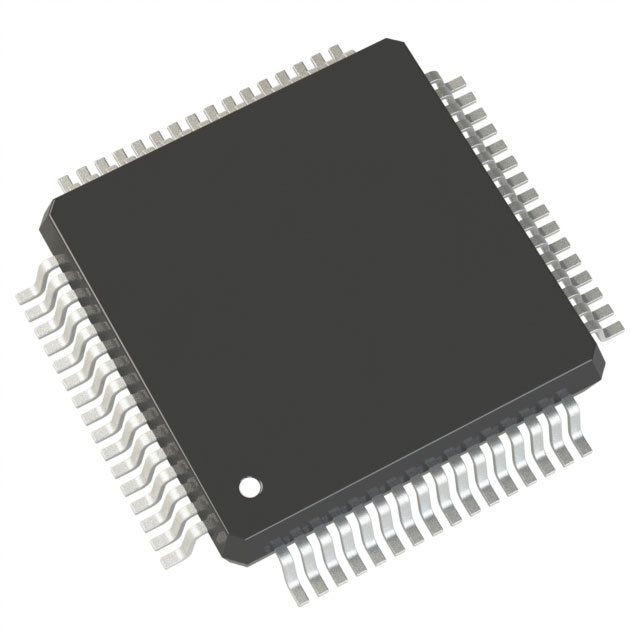

• Package & Mounting  64‑lead Low‑profile Quad Flat Package (64‑LQFP) 10 × 10 mm footprint; surface-mount package ideal for compact PCB layouts.
• Operating Range  Commercial temperature range: 0 °C to 70 °C.
• Compliance  RoHS compliant per supplier data.
• Graphics  No dedicated graphics acceleration (as specified).

Typical Applications

• Personal Digital Assistants  Low-power static architecture and small package make the MC68SEC000AE10 suitable for handheld PDAs and similar portable user devices.
• Portable Measuring Equipment  3.3 V/5.0 V operation and low standby current support battery‑operated measurement instruments requiring long idle times.
• Electronic Games  Compact footprint and 32‑bit processing enable control and user‑interface tasks in handheld and consumer game devices.
• Battery‑Operated Hand‑Held Devices  Static design and sleep-mode current characteristics help extend battery life in a range of handheld consumer products.

Unique Advantages

• Low‑power static operation: Typical 0.5 µA standby and ~15.0 mA normal current at 3.3 V enable energy-efficient designs and longer battery life.
• Compact package: 64‑LQFP (10 × 10 mm) surface‑mount package reduces PCB area for space‑constrained applications.
• Dual voltage flexibility: Support for 3.3 V or 5.0 V systems simplifies integration into existing power domains.
• Software and toolchain compatibility: Object‑code compatibility with the M68000 family and pin-for-pin compatibility with the MC68EC000 facilitate reuse of existing code and third‑party development tools.
• Integrated connectivity: On-chip 10 Mbps Ethernet interface provides a standard network option without adding external controller ICs.
• Static clock stop capability: Ability to stop the processor clock offers fine-grained power management for intermittent workloads.

Why Choose MC68SEC000AE10?

The MC68SEC000AE10 combines a proven 32‑bit EC000 architecture with low‑power operation and a compact 64‑LQFP footprint, making it a practical choice for designers of portable, battery‑sensitive embedded systems. Its dual‑voltage operation and static design provide flexibility for varied power architectures while minimizing standby drain.

Compatibility with the M68000 family and established third‑party development tools helps reduce development time and leverages existing software assets, delivering a cost‑effective path to deployment for consumer and industrial handheld products.

Request a quote or submit an inquiry to purchase MC68SEC000AE10 and discuss availability and pricing for your design needs.
