MC68SEC000AE20

The MC68SEC000AE20 is a static embedded microprocessor based on the EC000 core, delivering a single 32‑bit processing core at 20 MHz in a compact 64‑lead LQFP (10 × 10 mm) surface‑mount package. It targets low‑power embedded designs where small footprint and energy efficiency are primary requirements.

Designed for battery‑operated and portable consumer applications, the device combines a 32‑bit architecture, low standby and operating currents, and dual‑voltage operation to provide a balance of performance and power efficiency for embedded systems.

Key Features

• Core and Architecture EC000 core with a single 32‑bit processor; includes eight 32‑bit address registers and eight 32‑bit data registers, supporting the M68000 family instruction set and object‑code compatibility.
• Performance 20 MHz operating speed as specified for this part number, with the EC000 family offering multiple speed options in the series.
• Memory and Bus Supports DRAM controllers; 16‑Mbyte linear addressing range and memory‑mapped I/O for straightforward system integration.
• Low Power Static HCMOS design with typical 0.5 µA current in static standby and ~15.0 mA in normal 3.3 V operation; static implementation allows stopping the processor clock for power management.
• Voltage Operates in either 3.3 V or 5.0 V systems, enabling use in mixed‑voltage applications.
• Interfaces Includes support for 10 Mbps Ethernet (1) and standard memory‑mapped I/O connectivity; graphics acceleration is not included.

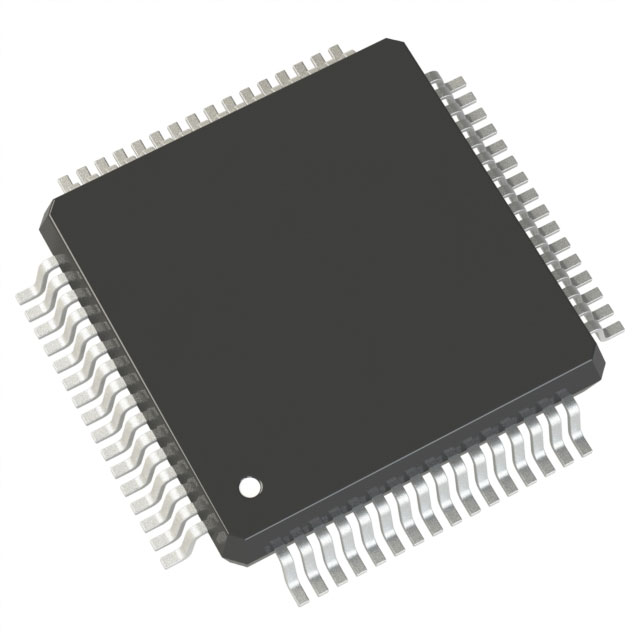

• Package and Mounting 64‑lead LQFP (10 × 10 mm) surface‑mount package, ideal for compact board layouts and portable product designs.
• Operating Range and Compliance Rated for 0 °C to 70 °C operation and RoHS compliant.

Typical Applications

• Portable Consumer Devices — Battery‑operated handheld products benefit from the device’s low standby current and compact package to extend runtime and save board space.
• Personal Digital Assistants and Handhelds — 32‑bit EC000 architecture and object‑code compatibility with the M68000 family enable reuse of established code and toolchains for PDAs and similar devices.
• Portable Measurement Equipment — Low power consumption and DRAM controller support suit portable test and measurement instruments requiring efficient processing.
• Electronic Games and Consumer Electronics — Small footprint and single‑chip 32‑bit processing provide a cost‑effective option for embedded game controllers and consumer applications.

Unique Advantages

• Very Low Standby Current: Typical 0.5 µA in static standby mode reduces battery drain for long shelf and standby life.
• Static Design with Clock Stop: Ability to stop the processor clock allows flexible power management strategies in software or system control.
• Dual‑Voltage Operation: Support for 3.3 V or 5.0 V systems eases integration into existing designs without extensive power‑rail redesign.
• Pin‑for‑Pin Replacement Compatibility: Direct replacement for the MC68EC000 in the plastic QFP package facilitates upgrades or redesigns with minimal hardware change.
• Code Compatibility with M68000 Family: Object‑code compatibility lets teams leverage existing codebases and third‑party development tools.
• Compact Surface‑Mount Package: 64‑lead LQFP (10 × 10 mm) minimizes PCB area while supporting standard SMT assembly.

Why Choose MC68SEC000AE20?

The MC68SEC000AE20 positions itself as a practical, low‑power 32‑bit microprocessor for embedded and portable designs that require a compact footprint and proven M68000 family software compatibility. Its static HCMOS architecture and low standby current make it well suited to battery‑sensitive applications while offering straightforward integration through dual‑voltage support and standard memory‑mapped I/O.

Designers seeking to reuse existing M68000 family code or leverage established third‑party development tools will find the MC68SEC000AE20 simplifies development and shortens time to market. The combination of small package size, low operating currents, and DRAM controller support provides a balanced platform for cost‑ and power‑conscious embedded systems.

Request a quote or submit an order inquiry to check availability and pricing for the MC68SEC000AE20 and to discuss lead times and purchase options.
