MC68SEC000FU20

The MC68SEC000FU20 is an MC68 series static embedded microprocessor featuring the EC000 core implemented as a single 32-bit processor running at 20 MHz. It is engineered for low-power, compact embedded systems and supports both 3.3V and 5.0V operation.

Typical use cases include portable and battery-powered consumer devices and handheld instruments where power efficiency, a small package footprint, and established software compatibility are important design drivers.

Key Features

• Core and Architecture — EC000 core with a single 32-bit processor; internal architecture includes eight 32-bit address registers and eight 32-bit data registers, supporting a 16 Mbyte linear addressing range.
• Performance — 20 MHz operating frequency for responsive control and processing in embedded applications; supports the established M68000 family instruction set and object-code compatibility with other M68000 Family products.
• Power Management — Static HCMOS design enabling the processor clock to be stopped for low-power operation; documented low-power behavior includes very low standby current and reduced normal-mode current at 3.3V.
• Memory & I/O — DRAM controller support and memory-mapped I/O capability; architecture implements 56 instruction types and 14 addressing modes for flexible software design.
• Connectivity — Ethernet capability listed as 10Mbps (1).

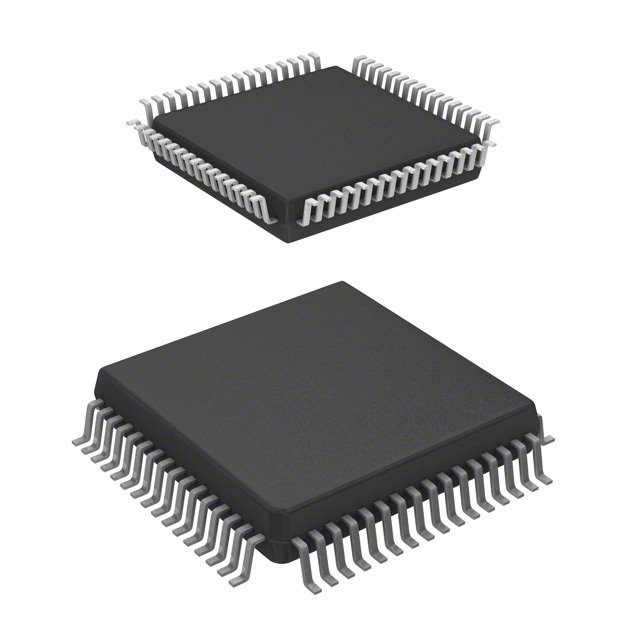

• Package & Mounting — 64-pin Quad Flat Pack (64-QFP) supplier package, 14 × 14 mm footprint; surface-mount mounting type optimized for compact PCB layouts.
• Operating Range — Specified operating temperature range of 0 °C to 70 °C for standard commercial environments.
• Software & Ecosystem — Object-code compatibility across the M68000 Family and pin-for-pin compatibility with MC68EC000 support reuse of existing development tools and software.

Typical Applications

• Handheld Consumer Electronics — Low-power static design and small 64-QFP footprint enable battery-operated electronic games and portable entertainment devices.
• Personal Digital Assistants & Portable Instruments — 3.3V/5.0V operation and low standby current make the device suitable for PDAs and portable measuring equipment where battery life matters.
• Battery-Operated Devices — Static implementation with the ability to stop the processor clock supports designs that require aggressive power management to extend battery life.

Unique Advantages

• Low-power static design: Static HCMOS architecture and the ability to stop the processor clock enable minimal standby current and improved power management for battery-powered products.
• Flexible voltage operation: Operates in either 3.3V or 5.0V systems, allowing integration into a range of existing power architectures.
• Established software compatibility: Object-code compatibility with the M68000 Family and pin-for-pin replacement for MC68EC000 reduce software redevelopment time and leverage existing toolchains.
• Compact surface-mount package: 64-QFP (14×14 mm) package supports compact PCB layouts while providing full access to the processor’s I/O and control features.
• Integrated system support: Built-in DRAM controller and memory-mapped I/O support simplify system-level design and reduce external component count.

Why Choose MC68SEC000FU20?

The MC68SEC000FU20 combines a 32-bit EC000 core, low-power static operation, and compact 64-QFP packaging to address embedded designs that require efficient processing in constrained power and space envelopes. Its compatibility with the M68000 Family and pin-for-pin continuity with related devices lets engineering teams reuse proven software and development tools to reduce time to market.

This microprocessor is well suited for designers of portable consumer products, handheld instruments, and other battery-sensitive applications who need a reliable, low-power 32-bit processing solution with established software support and a small surface-mount footprint.

Request a quote or submit a purchase inquiry to receive pricing and availability for the MC68SEC000FU20.
