MCIMX507CVK8BR2

The MCIMX507CVK8BR2 is an NXP Semiconductors i.MX 507 series single-core microprocessor featuring an ARM® Cortex®-A8 core running at 800 MHz. It is a multimedia-focused applications processor optimized for low power and integrates display and graphics acceleration capabilities for embedded and consumer designs.

Designed for portable multimedia and display-driven systems, this device combines a Cortex-A8 core, on-chip multimedia accelerators, flexible DRAM controller support, and security features in a 416-pin MAPBGA package suitable for surface-mount assembly.

Key Features

• Core Single ARM® Cortex®-A8 32-bit core operating at 800 MHz for responsive application processing.
• Multimedia and DSP Integrated multimedia support with NEON™ SIMD and graphics acceleration including a 2D GPU and Pixel Processing Pipeline (ePXP) for rich display pipelines.
• Memory Controllers Built-in controllers for LPDDR, LPDDR2 and DDR2 memories to support a range of performance and power trade-offs.
• Display and Graphics LCD display interface and on-chip pixel processing to drive advanced display applications, including electrophoretic display integration described in the device family documentation.
• Connectivity Single 10/100 Mbps Ethernet controller and two USB 2.0 ports with PHY, plus an additional 1-Wire interface for simple peripheral connections.
• Security Hardware features for Boot Security, Cryptography, and Secure JTAG to support protected boot and secure debug workflows.

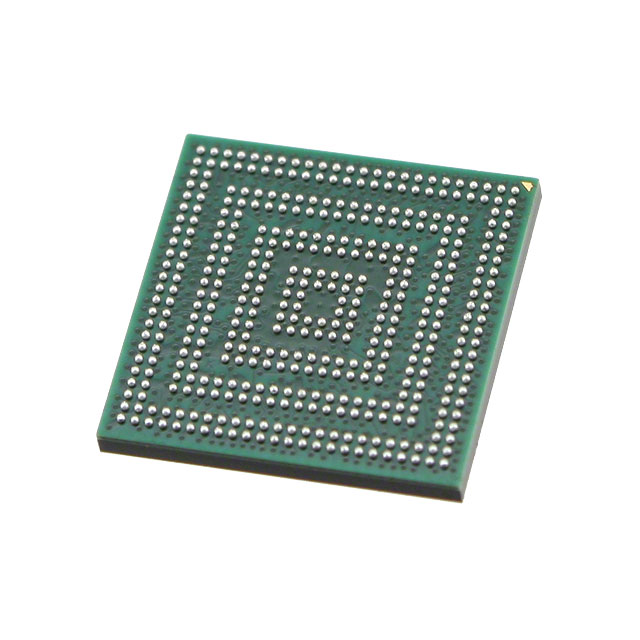

• Package and Mounting 416-pin MAPBGA package (13 × 13 mm, 0.5 mm pitch) optimized for surface-mount PCB assembly.
• Qualification and Operating Range Industrial qualification with an operating temperature range of 0 °C to 70 °C as specified for this part.
• Compliance RoHS-compliant construction.

Typical Applications

• Portable multimedia devices — Single-core Cortex-A8 processing with graphics acceleration and flexible DRAM support for handheld media players and similar devices.
• Display-driven consumer products — Integrated LCD and pixel-processing functionality for consumer displays and user-interface controllers.
• Electrophoretic / e‑ink applications — Device family documentation describes integrated electrophoretic display support suitable for low-power display designs.
• Industrial HMIs and instrumentation — Industrial qualification and built-in security features make this device suitable for embedded human‑machine interface designs.

Unique Advantages

• Highly integrated multimedia platform: On-chip GPU, ePXP and NEON SIMD deliver a compact solution for graphics and image processing without extensive external accelerators.
• Flexible memory options: Support for LPDDR, LPDDR2 and DDR2 lets designers trade off between power and performance according to system needs.
• Embedded connectivity: Integrated Ethernet and dual USB 2.0 with PHY reduce external component count and simplify board-level design.
• Hardware security primitives: Boot security, cryptography and Secure JTAG enhance device integrity and secure development workflows.
• Compact, manufacturable package: 416-pin MAPBGA (13 × 13 mm) provides a high pin-count solution in a small footprint for surface-mount production.

Why Choose MCIMX507CVK8BR2?

The MCIMX507CVK8BR2 combines an ARM® Cortex®-A8 core at 800 MHz with integrated multimedia acceleration, flexible DRAM support, and hardware security features, delivering a balanced platform for embedded designs that require display and multimedia capabilities. Its industrial qualification and 416-MAPBGA package make it suitable for space-constrained products needing a robust, integrated processor.

This part is a practical choice for engineers designing portable multimedia devices, consumer displays, electrophoretic/e‑ink systems, and industrial HMIs who want a single-chip solution that reduces BOM complexity while providing secure boot and connectivity options.

Request a quote or submit an inquiry to receive pricing and availability information for MCIMX507CVK8BR2.
