MPC8314EVRADDA

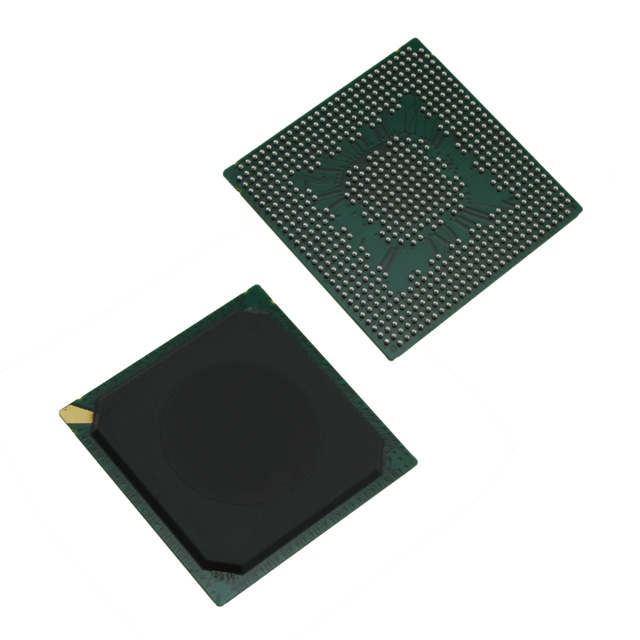

The MPC8314EVRADDA is a single-core PowerPC e300c3 32-bit microprocessor running at 266 MHz, supplied in a 620‑HBGA (29×29) surface-mount package with exposed pad. Designed as a cost-effective, low-power, highly integrated host processor, it targets storage, consumer and industrial embedded applications.

Typical roles include main CPU and I/O processing in networked and consumer devices where integration, on-chip security and multi‑interface connectivity are required.

Key Features

• Core  PowerPC e300c3 32-bit core at 266 MHz; core documentation indicates a 16 KB L1 instruction cache for responsive instruction throughput.
• Memory  Integrated memory controllers supporting DDR and DDR2 SDRAM for flexible system memory design.
• Security Subsystem  On-chip security co-processor (SEC 3.3) with cryptography support and a hardware random number generator for accelerated security operations.
• Ethernet  Two integrated three-speed Ethernet controllers (10/100/1000 Mbps) to simplify multi‑port networking designs.
• USB  Single USB 2.0 port with integrated PHY for host or device connectivity.
• Serial and Peripheral Interfaces  Includes DUART and multiple standard peripheral interfaces for console, control and I/O expansion.
• Package and Mounting  620‑HBGA (29×29) supplier device package with exposed pad; surface-mount mounting for compact board integration.
• Operating Range & Compliance  Consumer qualification with an operating temperature range of 0 °C to 105 °C; RoHS compliant.

Typical Applications

• Network Attached Storage (NAS)  Used as a main CPU and I/O processor for NAS appliances where integrated Ethernet and memory controllers streamline system design.
• VoIP Routers and Gateways  Provides host processing and onboard security acceleration for voice and data packet handling in gateway devices.
• Wireless LAN and Access Points  Serves as the control and data plane processor in WLAN equipment, leveraging integrated Ethernet and USB connectivity.
• Set‑Top Boxes and Consumer Devices  Delivers host processing for consumer multimedia and control applications requiring a compact, low‑power processor.
• Industrial Controllers  Applicable as an embedded controller for industrial systems that benefit from integrated interfaces and hardware security.

Unique Advantages

• Highly integrated networking: Dual 10/100/1000 Mbps Ethernet controllers reduce external PHY and switch requirements for multi‑port designs.
• On‑chip security acceleration: SEC 3.3 co-processor, cryptography support and a hardware RNG enable stronger security functions with lower software overhead.
• Memory flexibility: Built-in DDR and DDR2 controllers allow selection of memory technologies to match performance and cost targets.
• Compact thermal package: 620‑HBGA (29×29) with exposed pad supports dense board layouts and helps with thermal management in space-constrained designs.
• Documented architecture: Part of the PowerQUICC II Pro family with available technical datasheet material to support development and integration.
• Regulatory and environmental compliance: RoHS compliant to meet common environmental requirements for consumer and industrial products.

Why Choose MPC8314EVRADDA?

The MPC8314EVRADDA positions itself as a balanced solution for embedded designs that require a 32‑bit PowerPC core with integrated networking, memory controllers and on‑chip security. Its combination of a 266 MHz e300c3 core, dual gigabit Ethernet, USB 2.0 with PHY, and DDR/DDR2 support makes it suitable for storage, networking and consumer/industrial applications where integration and predictable performance matter.

Backed by the PowerQUICC II Pro family documentation, this device is a practical choice for system designers seeking a documented, RoHS‑compliant embedded processor that reduces external component count and supports a range of connectivity and security functions.
