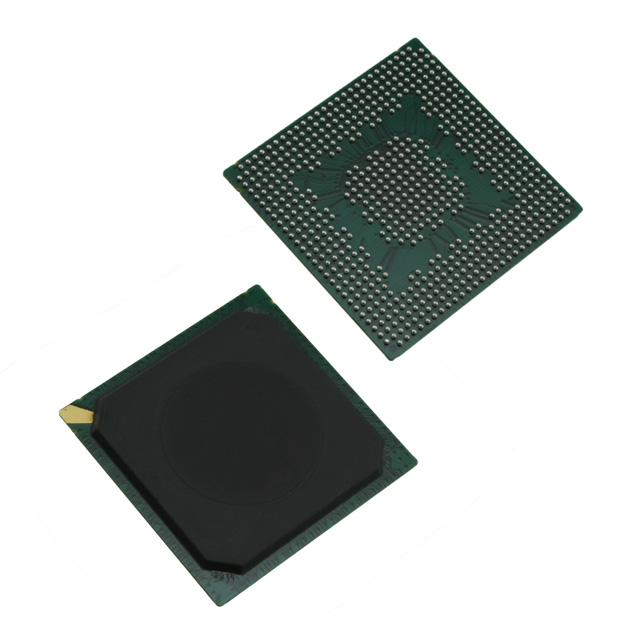

MPC8314ECVRADDA

The MPC8314ECVRADDA is a single‑core, 32‑bit microprocessor built on the PowerPC e300c3 core and rated at 266 MHz. It is a highly integrated host processor designed for industrial embedded applications that require deterministic control, robust connectivity and on‑chip security.

With integrated DDR/DDR2 memory controllers, dual three‑speed Ethernet ports, a USB 2.0 PHY, and hardware security features, this device addresses a range of networked storage, communications and industrial control use cases while supporting extended operating temperatures and industrial qualification.

Key Features

• Core PowerPC e300c3 core, single 32‑bit processor operating at 266 MHz; the series core includes an L1 instruction cache as specified in the product documentation.
• Memory Integrated memory controller support for DDR and DDR2 SDRAM for flexible system memory options.
• High‑Speed Networking Two three‑speed Ethernet controllers (10/100/1000 Mbps) to support robust wired network connectivity and high throughput I/O.
• USB Integrated USB 2.0 controller with PHY (1) for host or peripheral connectivity.
• Security On‑chip security engine (SEC 3.3) with cryptography and a hardware random number generator to support secure communications and data protection.
• Interfaces & Peripherals Additional interfaces include DUART and a range of peripheral controllers as documented for the MPC8314E family.
• Package & Mounting 620‑HBGA (29×29) package with exposed pad, surface‑mount mounting for compact board designs.
• Industrial Qualification & Temperature Qualified for industrial applications with an operating temperature range of −40 °C to 105 °C.
• Compliance RoHS compliant for environmental and manufacturing compatibility.

Typical Applications

• Network Attached Storage (NAS) Acts as a main CPU or I/O processor for storage appliances where integrated Ethernet and memory controllers are required.
• VoIP Routers and Gateways Provides host processing and networking interfaces for voice and data routing applications.
• Wireless LAN and Access Points Serves as an embedded processor for WLAN infrastructure with multi‑gigabit Ethernet and peripheral support.
• Set‑Top Boxes and Consumer Networking Delivers on‑chip I/O, USB and memory support for media and connectivity functions.
• Industrial Controllers Industrial‑qualified operation and wide temperature range meet environmental demands for control and automation systems.

Unique Advantages

• Highly integrated connectivity: Dual three‑speed Ethernet ports, USB 2.0 PHY and DDR/DDR2 memory controllers reduce external chipset needs.
• Built‑in security: SEC 3.3 security engine plus cryptography and a hardware random number generator provide hardware‑level security primitives.
• Industrial readiness: Industrial qualification and an operating range of −40 °C to 105 °C support deployment in demanding environments.
• Compact packaging: 620‑HBGA (29×29) with exposed pad enables high‑density board designs while supporting thermal management.
• Developer focus: PowerPC e300c3 core with documented L1 instruction cache characteristics provides deterministic performance for embedded software.

Why Choose MPC8314ECVRADDA?

The MPC8314ECVRADDA positions itself as a performance‑focused, integrated processor for embedded systems that require reliable networking, on‑chip memory interfaces and hardware security in an industrial‑grade package. Its combination of a PowerPC e300c3 core at 266 MHz, dual GigE capability, DDR/DDR2 support and SEC 3.3 security engine makes it suitable for applications where connectivity, security and temperature resilience matter.

This device is well suited for designers building storage appliances, communications equipment, wireless infrastructure and industrial controllers who need a single‑chip solution with verified industrial qualification and a compact HBGA footprint for space‑constrained boards.

If you would like pricing, availability or a formal quote for MPC8314ECVRADDA, please submit a request for a quote or inquiry to receive information tailored to your project needs.
