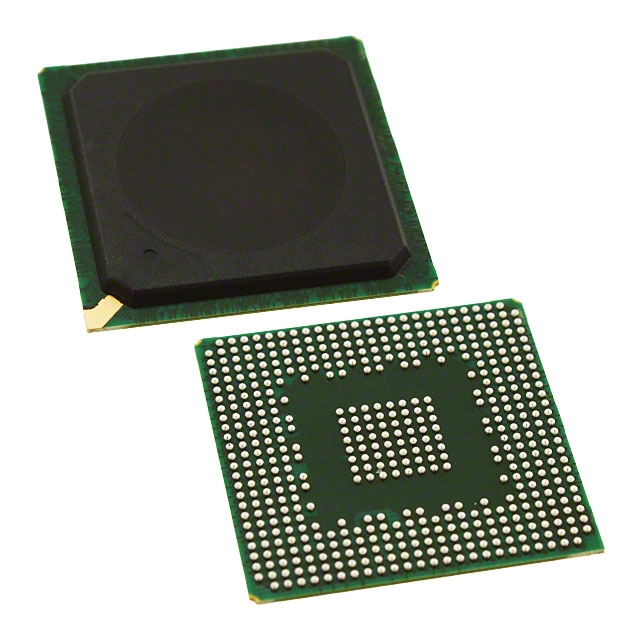

MPC8313ZQAGDC

The MPC8313ZQAGDC is a single‑core PowerPC e300c3 microprocessor running at 400 MHz, offered in a 516‑TEPBGA (27×27) package. It is a cost‑effective, low‑power, highly integrated host processor designed for embedded networking, printing and imaging, consumer, and industrial applications.

Built on the PowerQUICC II Pro family architecture, the device integrates an e300c3 core with on‑chip MMUs and 16 KB L1 instruction and data caches, dual three‑speed Ethernet controllers, DDR/DDR2 memory support, USB 2.0 with PHY, and hardware security (SEC 2.2) to address system integration and time‑to‑market requirements.

Key Features

• Core — PowerPC e300c3 single 32‑bit core at 400 MHz with 16 KB L1 instruction and 16 KB L1 data caches and on‑chip MMU functionality.
• Memory — Integrated DDR and DDR2 SDRAM controllers for system memory interfacing.
• Connectivity — Dual enhanced three‑speed 10/100/1000 Mbps Ethernet controllers for robust network I/O.
• USB and Serial I/O — USB 2.0 with on‑chip PHY (1) plus DUART and multiple serial interfaces referenced in the hardware specification set.
• Security — On‑chip security module (SEC 2.2) providing cryptographic functions.
• System Interfaces — Enhanced local bus, PCI, I2C, JTAG and other standard interfaces included in the processor family documentation.
• Package & Mounting — 516‑TEPBGA (27×27) exposed pad package, surface mount.
• Operating Range & Compliance — Rated for 0 °C to 105 °C operation and RoHS compliant.

Typical Applications

• Networking Equipment: Ideal for switches, line cards, VPN routers and intelligent NIC designs that require dual three‑speed Ethernet and integrated I/O.
• Storage & NAS: Suited for NAS and network access servers needing DDR/DDR2 memory support and high‑performance I/O.
• Wireless Infrastructure: Applicable to WLAN and wireless access devices leveraging integrated USB, serial interfaces, and security features.
• Printing & Imaging: Matches printing system and imaging controller requirements with integrated local bus and peripheral interfaces.
• Industrial Control: Fits industrial controller designs where integrated networking, cryptography, and a wide operating temperature are required.

Unique Advantages

• Integrated Networking: Dual enhanced 10/100/1000 Mbps Ethernet controllers reduce external component count for networked products.
• Memory Flexibility: On‑chip DDR/DDR2 controllers simplify memory subsystem design and support common system memory choices.
• Security Engine: SEC 2.2 cryptography support provides hardware acceleration for secure communications and data protection.
• Compact, High‑Density Package: 516‑TEPBGA (27×27) package offers a compact footprint for space‑constrained embedded boards.
• Family & Ecosystem: Part of the PowerQUICC II Pro processor family, easing migration within a proven architecture and leveraging available documentation and resources.
• Industrial Temperature Range: 0 °C to 105 °C rating supports deployment in a range of commercial and industrial environments.

Why Choose MPC8313ZQAGDC?

The MPC8313ZQAGDC combines a single PowerPC e300c3 core with integrated memory controllers, dual three‑speed Ethernet, USB 2.0 with PHY, and on‑chip security to deliver a compact, integrated processor well suited to networked embedded systems, printing and imaging hosts, and industrial controllers. Its inclusion in the PowerQUICC II Pro family ensures access to detailed hardware specifications and design guidance.

This part is targeted at designs that value integration and system‑level functionality—reducing board complexity and accelerating time to market—while providing verifiable operating range and RoHS compliance for long‑term deployment.

Request a quote or submit a sales inquiry to obtain pricing, availability, and technical support for the MPC8313ZQAGDC. Our team can provide volume pricing and assistance with lead times and qualification details.
