MPC8313VRAFFC

The MPC8313VRAFFC is a PowerPC e300c3-based microprocessor from the MPC8313 series, delivering a single 32-bit core at 333 MHz in a compact 516-TEPBGA (27×27) package. Designed as a cost-effective, low-power, highly integrated host processor, it targets printing and imaging, consumer and industrial systems, and networking applications that require integrated I/O and secure processing.

On-chip integration includes memory controllers and multi-gigabit networking and peripheral interfaces, making the device suitable for main CPU and I/O processor roles where performance, integration, and predictable thermal behavior are important.

Key Features

• Core: PowerPC e300c3 single 32-bit core running at 333 MHz, with on-chip instruction and data cache and MMU support as part of the MPC83xx architecture.
• Memory Controllers: Integrated DDR and DDR2 SDRAM controllers for flexible system memory choices and straightforward memory subsystem design.
• Ethernet: Dual three-speed 10/100/1000 Mbps Ethernet controllers to support differentiated networking and switching roles.
• USB: USB 2.0 controller with integrated PHY (1) for host/peripheral connectivity.
• Security: On-chip security engine (SEC 2.2) with cryptography features to support secure data handling and accelerated security operations.
• Peripheral Interfaces: DUART and other standard peripheral interfaces for serial control and system management.

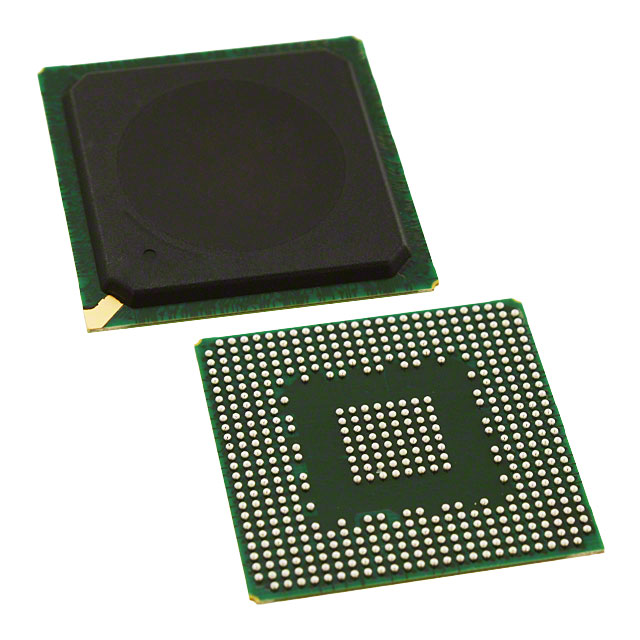

• Package & Mounting: 516-BBGA exposed pad, supplied in a 516-TEPBGA (27×27) surface-mount package suitable for compact, high-density boards.
• Operating Range: Rated for 0 °C to 105 °C operating temperature, suitable for many consumer and industrial environments.
• Compliance: RoHS compliant and qualified for consumer applications.

Typical Applications

• Networking Equipment: Ideal for switches, line cards, NAS units, VPN routers and intelligent NICs where dual Gigabit Ethernet and integrated I/O simplify system design.
• Printing and Imaging Systems: Suited for main CPU and I/O processor roles in printers and imaging devices that benefit from integrated memory controllers and peripheral interfaces.
• Wireless and Access Devices: Applicable to WLAN access points and network access servers requiring a compact, integrated processor with robust networking and USB support.
• Industrial Controllers: Useful in industrial control systems that require secure processing, serial interfaces, and operation across a broad temperature range.

Unique Advantages

• Highly integrated networking and I/O: Dual Gigabit Ethernet controllers plus USB 2.0 with PHY reduce external components and simplify board-level design.
• On-chip security engine (SEC 2.2): Built-in cryptography support accelerates secure communications and offloads security tasks from the CPU core.
• Flexible memory support: DDR and DDR2 SDRAM controller support enables designers to choose the memory technology that best fits cost and performance targets.
• Compact BGA package: 516-TEPBGA (27×27) with exposed pad enables high-density, thermally efficient board layouts for space-constrained designs.
• Designed for low-power, cost-sensitive systems: Described as a cost-effective, low-power option within the MPC83xx PowerQUICC II Pro family for embedded host and I/O roles.
• Consumer qualification and RoHS compliance: Streamlines regulatory and procurement requirements for consumer-focused products.

Why Choose MPC8313VRAFFC?

The MPC8313VRAFFC combines a proven PowerPC e300c3 core at 333 MHz with integrated memory, security, and multi-gigabit networking to deliver a balanced platform for embedded host and I/O processing. Its integration and package choices make it suited to compact, cost-sensitive designs in networking, imaging, wireless access, and industrial control.

As part of the MPC8313/MPC83xx family, the device offers a clear migration path and predictable system-level behavior for engineers building on the PowerQUICC II Pro architecture, delivering scalability and integration for long-term product plans.

Request a quote or submit an inquiry to receive pricing and availability for MPC8313VRAFFC and to discuss how this device fits your next embedded design.
