MPC8313VRAFFB

The MPC8313VRAFFB is a single-core PowerPC e300c3 microprocessor operating at 333 MHz, designed as a cost-effective, low-power, highly integrated host processor. It combines an on-chip CPU core with memory controllers, multi-speed Ethernet, USB connectivity and hardware security to address embedded designs.

Targeted use cases include printing and imaging, consumer and industrial applications, and networking systems such as switches, line cards, NAS and VPN routers that require integrated I/O, memory interfaces, and security functionality in a compact package.

Key Features

• Core and Performance  PowerPC e300c3 core with a single 32-bit processor operating at 333 MHz; includes on-chip MMU and 16 KB instruction and 16 KB data L1 caches as described in the product documentation.
• Memory  Integrated DDR and DDR2 SDRAM memory controller support for flexible system memory options.
• Ethernet  Dual enhanced three-speed Ethernet controllers supporting 10/100/1000 Mbps operation (2 ports) for embedded networking applications.
• USB  USB 2.0 controller with integrated PHY (1) for host/device connectivity.
• Security  On-chip security co-processor functionality (SEC 2.2) providing cryptography acceleration.
• Integrated Peripherals  Rich peripheral set documented for the MPC8313E family including Enhanced Local Bus, PCI, I2C, SPI, GPIO, timers, JTAG, DUART and HSSI interfaces.

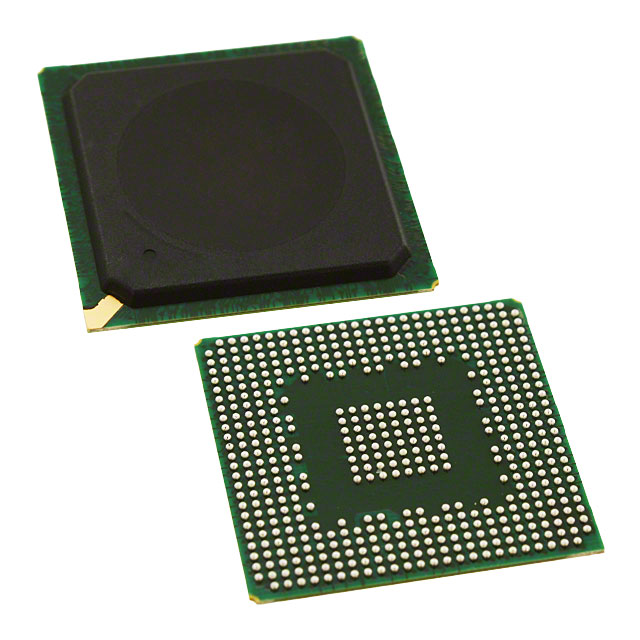

• Package and Mounting  Supplied in a 516-TEPBGA (27 × 27 mm) surface-mount package suitable for compact system boards; packaged as tray.
• Qualification  Consumer-grade qualification as listed in the product specifications.
• Graphics  No graphics acceleration—designed for compute and I/O-centric embedded applications.

Typical Applications

• Printing and Imaging  Acts as a host CPU and I/O processor in printers and imaging systems where integrated interfaces and memory support simplify board design.
• Networking Equipment  Suitable for switches, line cards, intelligent NICs and VPN routers that require multi‑speed Ethernet and hardware security.
• Storage and NAS  Embedded NAS devices benefit from the integrated DDR/DDR2 memory controller and Ethernet connectivity.
• Consumer and Industrial Controllers  Fits consumer and industrial control applications that need a compact, integrated microprocessor with multiple peripheral interfaces.

Unique Advantages

• Highly integrated design: Combines CPU, memory controllers, multi-speed Ethernet, USB and security co-processor in one device to reduce BOM and board complexity.
• Cost-effective, low-power operation: Described in the product documentation as a low-power, cost-effective solution for embedded hosts and I/O processors.
• Hardware security acceleration: SEC 2.2 cryptography support reduces CPU load for secure communications and data protection.
• Flexible memory support: On-chip DDR and DDR2 SDRAM controllers enable adaptable system memory configurations.
• Compact package: 516-TEPBGA (27×27 mm) surface-mount package supports high-density board layouts while providing a broad set of I/O.
• Broad peripheral set: Integrated interfaces including PCI, Enhanced Local Bus, I2C, SPI, GPIO, timers, JTAG and serial ports support diverse system requirements.

Why Choose MPC8313VRAFFB?

The MPC8313VRAFFB positions itself as a balanced solution for embedded systems that need integrated networking, memory and security in a single 333 MHz PowerPC e300c3 core. Its combination of on-chip peripherals and memory interfaces makes it well suited for designs where board space, integration and predictable performance are priorities.

This device is appropriate for developers of printing/imaging systems, networking equipment, NAS devices and industrial controllers who require an integrated, consumer‑qualified microprocessor with hardware security and multi-speed Ethernet connectivity.
