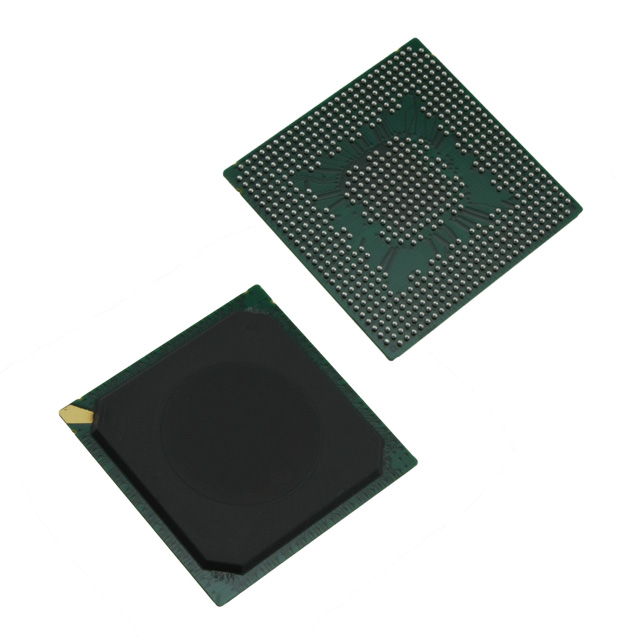

MPC8314CVRADDA

The MPC8314CVRADDA is a PowerPC-based microprocessor built on the e300c3 core and positioned in the MPC8314 series. It delivers a 266 MHz 32-bit single-core processing engine with integration targeted at industrial embedded applications.

Designed for networked and I/O-centric systems, the device combines the PowerQUICC II Pro family architecture with on-chip memory controller support and a broad set of peripheral interfaces to simplify board design and accelerate time-to-market.

Key Features

• Core PowerPC e300c3 single core, 32-bit architecture running at 266 MHz for predictable embedded processing performance.
• Memory Integrated controllers for DDR and DDR2 SDRAM, enabling flexible system memory configurations.
• Connectivity Dual three-speed Ethernet interfaces (10/100/1000 Mbps) and a USB 2.0 controller with PHY to support high-speed communications and peripheral connectivity.
• Security & Cryptography On-chip security features including cryptographic acceleration and a hardware random number generator to support secure communications and data protection functions.
• Peripheral Interfaces Includes DUART for legacy serial communications and additional on-chip I/O suitable for embedded control tasks.
• Package & Mounting 620-ball HBGA supplier package (29 × 29 mm) with exposed pad; surface-mount device for compact board integration.
• Qualification & Temperature Industrial qualification with an operating temperature range of −40 °C to 105 °C for demanding environmental conditions.
• Integration & Family Member of the PowerQUICC II Pro family, offering a balance of integration, low power, and interfaces commonly required in network and storage applications.

Typical Applications

• Network Appliances Processor and I/O offload in routers, gateways, and access points using integrated Gigabit Ethernet and USB connectivity.
• Storage and NAS Host CPU and I/O controller duties for network-attached storage where DDR/DDR2 memory support and robust Ethernet are required.
• Industrial Controllers Embedded control and communication tasks in industrial automation benefiting from industrial temperature qualification and onboard security features.
• Consumer and Set-Top Equipment Control and I/O management in consumer devices and set-top boxes that require a compact HBGA package and integrated connectivity.

Unique Advantages

• Integrated Communications Dual three-speed Ethernet plus USB 2.0 with PHY reduce external components and simplify board-level routing for connected designs.
• Built-in Security Cryptographic acceleration and a hardware RNG provide hardware-assisted security functions to support secure boot, encryption, and secure communications.
• Memory Flexibility Support for both DDR and DDR2 SDRAM enables designers to choose memory technology that matches cost and performance targets.
• Industrial Robustness Rated for −40 °C to 105 °C operation and industrial qualification for reliable operation in harsh environments.
• Compact Packaging 620-ball HBGA (29 × 29 mm) with exposed pad allows high pin-count integration in space-constrained systems.
• Proven Architecture PowerPC e300c3 core within the PowerQUICC II Pro family provides a familiar software and hardware ecosystem for embedded developers.

Why Choose MPC8314CVRADDA?

The MPC8314CVRADDA combines a PowerPC e300c3 core with integrated DDR/DDR2 memory controllers, multi-rate Ethernet, USB 2.0 with PHY, and hardware security features in a single industrial-grade package. This combination positions the device for embedded designs that require balanced processing, robust connectivity, and on-chip security while minimizing external components.

Engineers and procurement teams will find the MPC8314CVRADDA suited to networked storage, industrial control, and communications equipment where long-term availability, integration, and temperature-rated operation are key selection criteria.

Request a quote or submit a procurement inquiry to receive pricing, availability, and lead-time information for MPC8314CVRADDA. Our team can provide technical details and support to help integrate this device into your design.
