MPC8343CVRAGDB

The MPC8343CVRAGDB is an NXP Semiconductors PowerPC e300-based microprocessor IC designed for embedded networking, storage and general-purpose applications. It integrates a single 32-bit PowerPC e300 core running at 400 MHz with system logic intended for industrial-grade embedded designs.

Built with multiple high‑speed connectivity options, DDR/DDR2 memory controllers and on‑chip security features, this device targets applications that require integration, deterministic operation and extended temperature capability.

Key Features

• Processor Core – Single PowerPC e300 core, 32‑bit architecture operating at 400 MHz.
• Security Engine – Integrated security co‑processor (SEC) with cryptography functions and a hardware random number generator for secure communications and accelerated security tasks.
• Memory Support – On‑chip controllers for DDR and DDR2 memory to support system memory requirements.
• Ethernet – Three independent 10/100/1000 Mbps Ethernet interfaces for multi‑port networking designs.
• USB – Two USB 2.0 controllers with integrated PHY for host/device connectivity.
• Peripheral Interfaces – Rich peripheral set documented in the device hardware specification, including DUART, I2C, SPI, PCI, JTAG, timers and GPIO for flexible system integration.

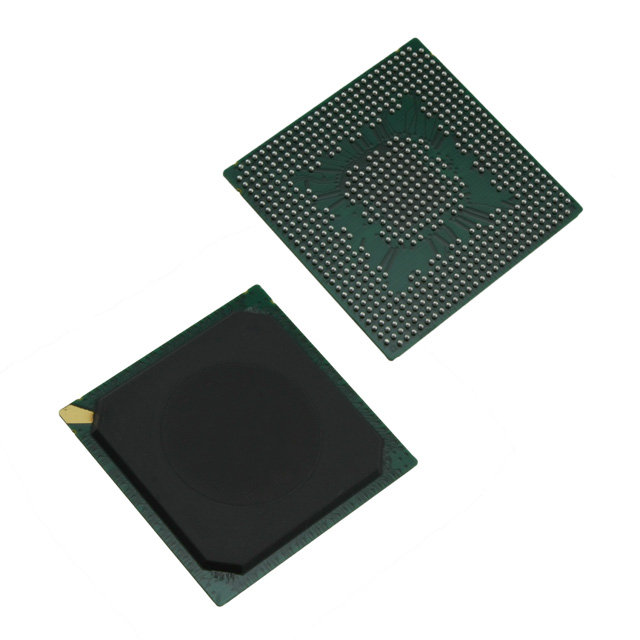

• Package and Mounting – 620‑HBGA supplier device package (29 × 29 mm) with exposed pad; surface‑mount mounting for compact board designs.
• Industrial Qualification & Thermal Range – Qualified for industrial applications with an operating temperature range of -40 °C to 105 °C.
• Compliance – RoHS compliant, supporting regulatory and environmental requirements.

Typical Applications

• Network Equipment – Multi‑port Ethernet capability and on‑chip system logic make it suitable for routers, switches and networking appliances.
• Storage Systems – Integrated host processor features and peripheral set support embedded storage controllers and NAS devices.
• Industrial Embedded Systems – Industrial qualification and extended temperature range enable deployment in factory automation, machine control and monitoring systems.
• General-Purpose Embedded Hosts – Combines processing, connectivity and security for a wide range of embedded host applications.

Unique Advantages

• Integrated host processor and system logic: Combines a PowerPC e300 core with peripheral and system blocks to reduce external component count and simplify board design.
• Multi‑port connectivity: Three Gigabit Ethernet ports and two USB 2.0 with PHY provide flexible I/O and connectivity options for diverse networking and peripheral requirements.
• Built‑in security acceleration: SEC co‑processor along with hardware cryptography and RNG support secure protocols and offload security processing from the CPU.
• Memory flexibility: DDR and DDR2 memory controller support enables designers to choose memory technology that fits performance and cost targets.
• Industrial readiness: -40 °C to 105 °C operating range and industrial qualification support deployment in demanding environments.
• Standards‑oriented documentation: Device is part of the PowerQUICC II Pro family with detailed hardware specifications and reference documentation to aid system development.

Why Choose MPC8343CVRAGDB?

The MPC8343CVRAGDB is positioned as an integrated, industrial‑qualified host processor for embedded designs that require multi‑port networking, secure communications and flexible memory support. Its combination of a PowerPC e300 core, on‑chip security engine, multiple Ethernet interfaces and comprehensive peripheral set provides a balanced platform for networking, storage and general embedded applications.

Designers and procurement teams seeking a robust, documented solution for industrial embedded systems will find the MPC8343CVRAGDB suited to projects that demand integration, connectivity and support for extended temperature operation within the PowerQUICC II Pro family.

Request a quote or submit an inquiry to receive pricing, availability and lead‑time information for the MPC8343CVRAGDB. Our team can provide volume pricing and order guidance to support your design and production needs.
