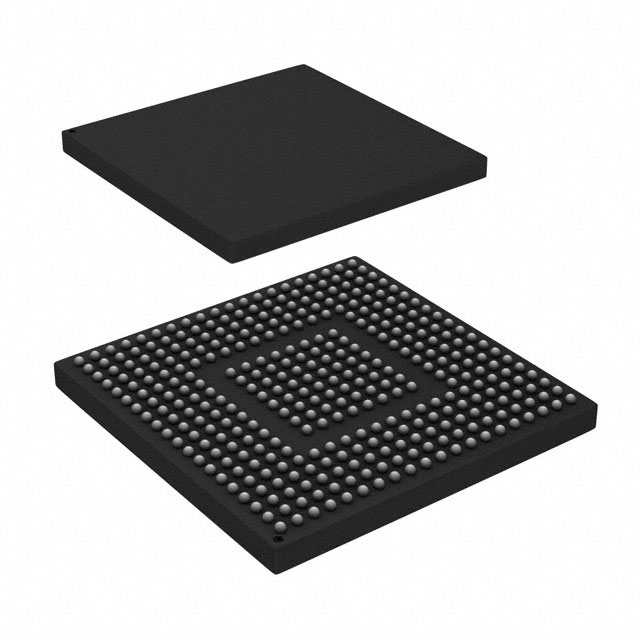

MVF60NS152CMK40

The MVF60NS152CMK40 is a Vybrid VF6xx series dual-core microprocessor from NXP Semiconductors combining an ARM® Cortex®-A5 primary core and an ARM® Cortex®-M4 secondary core. This device integrates a high-performance 32-bit application processor (400 MHz) with a deterministic microcontroller core (167 MHz) to support mixed-control and application workloads.

Designed for industrial-grade designs, the part delivers integrated connectivity, graphics and multimedia support, and extensive security features—making it suitable for embedded systems that require performance, connectivity, and hardware-enforced security.

Key Features

• Dual-Core Architecture — ARM® Cortex®-A5 plus ARM® Cortex®-M4 32-bit cores with nominal speeds of 400 MHz and 167 MHz respectively, enabling separation of application and real-time control tasks.
• Memory and Storage Interfaces — Support for LPDDR2, DDR3 and general DRAM through 8/16-bit DRAM controller, plus dual Quad SPI with XIP and 8/16-bit NAND flash controller with ECC for flexible system memory options.
• Graphics and Display — Integrated display controllers including Dual Display Control Unit (DCU), GPU, LCD support, Video Interface Unit (VIU) and VideoADC for camera and video applications.
• Connectivity & Peripherals — Dual 10/100 Mbps Ethernet, USB 2.0 OTG with PHY, dual FlexCAN3, multiple UART/SCI, DSPI, I2C, and SD host controllers provide broad peripheral connectivity.
• Security — Comprehensive hardware security including ARM TrustZone, Cryptographic Acceleration and Assurance Module (CAAM) with secure RAM, Secure Non-Volatile Storage (SNVS), High Assurance Boot (HAB), Secure JTAG, Real Time Integrity Checker (RTIC), Tamper detection and TrustZone watchdog features.
• Real-Time and Control — ARM Cortex‑M4 with integrated DSP capability, motor-control/general-purpose timers (FTM), multiple timers and dual DMA controllers support real-time control and motor-drive applications.
• Audio & Video Peripherals — SAI, ESAI, SPDIF, dual 12-bit SAR ADC and dual 12-bit DAC support audio capture/playback and mixed-signal conversion.
• System and Power — Multiple clock sources (24 MHz, 32 kHz, internal references), low-power modes and peripheral clock gating for power-managed embedded designs. Operating supply and I/O documented at 3.3 V and device voltage range 3.0 V–3.6 V.
• Industrial Qualification & Operating Range — Industrial qualification with operating temperature range of −40 °C to 85 °C and surface-mount 364-LFBGA (17 × 17 mm) package for compact board integration.

Typical Applications

• Industrial Control — Real-time motor control and machine automation using the Cortex‑M4 core, motor-control timers and deterministic peripherals.
• Human-Machine Interfaces (HMI) — Drive color TFT displays and touch interfaces with the integrated DCU, GPU and display controllers.
• Imaging & Video — Camera capture and video processing using the Video Interface Unit (VIU) and VideoADC capabilities.
• Connectivity Gateways — Protocol bridging and edge networking using dual 10/100 Ethernet, USB OTG, CAN and multiple serial interfaces.

Unique Advantages

• Heterogeneous Dual-Core Design: Separate Cortex‑A5 and Cortex‑M4 cores allow high-level application processing and real-time control to run concurrently without resource contention.
• Integrated Security Stack: On-chip TrustZone, CAAM, HAB, SNVS and tamper detection provide hardware-enforced security primitives for protected boot and secure storage.
• Flexible Memory Options: Support for LPDDR2, DDR3, NAND and Quad SPI XIP enables scalable memory configurations for performance and cost trade-offs.
• Broad Peripheral Integration: Dual Ethernet, USB OTG with PHY, CAN, multiple UART/SPI/I2C and audio interfaces reduce external component count and simplify system design.
• Industrial Robustness: Industrial-grade qualification and a −40 °C to 85 °C operating range suit deployment in demanding environments.

Why Choose MVF60NS152CMK40?

The MVF60NS152CMK40 combines application-level processing and real-time control in a single, industrial-grade package from NXP Semiconductors. Its integrated security features, extensive I/O and memory interface support make it well suited for embedded systems that require secure connectivity, multimedia or display capability, and precise control functions.

This part is aimed at designers building industrial controls, HMI, imaging and connectivity gateway products who require a compact surface-mount 364‑LFBGA solution with robust temperature performance and a wide set of on-chip peripherals.

Request a quote or submit an inquiry to receive pricing and availability for MVF60NS152CMK40 and discuss how it fits your next embedded design.
