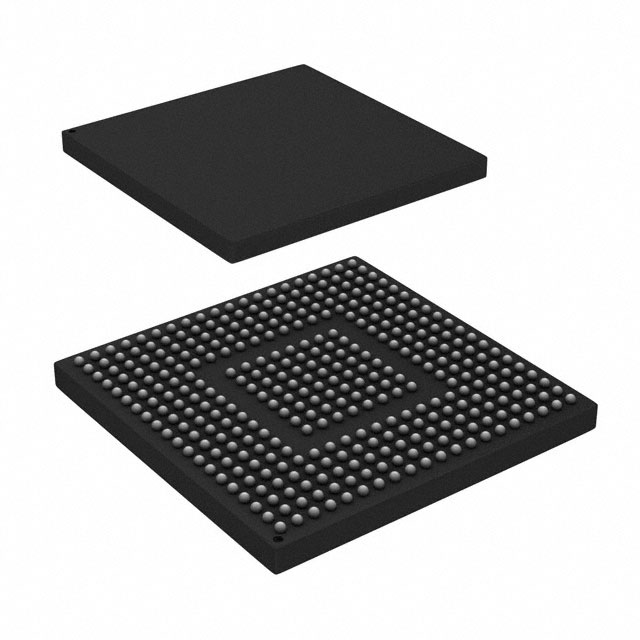

MVF61NN151CMK50

The MVF61NN151CMK50 is an NXP Vybrid VF6xx series dual-core microprocessor combining an ARM® Cortex®-A5 and an ARM® Cortex®-M4 core. It delivers up to 500 MHz on the Cortex‑A5 and up to 167 MHz on the Cortex‑M4, packaged in a 364‑LFBGA (17×17) surface-mount package for embedded and industrial designs.

Designed for embedded and industrial applications, this device integrates a wide set of interfaces, graphics/display and video support, and comprehensive security features to enable high‑performance, integrated system designs while supporting industrial operating conditions.

Key Features

• Core Architecture Dual-core heterogeneous design: ARM® Cortex®-A5 up to 500 MHz and ARM® Cortex®-M4 up to 167 MHz; 2-core, 32‑bit operation.
• Memory and Storage Supports LPDDR2, DDR3 and external DRAM via an 8/16‑bit DRAM controller (up to 400 MHz, ECC supported for 8‑bit). Includes 8/16‑bit NAND controller with ECC and dual Quad SPI with XIP capability.
• Graphics and Display Display and video support including DCU, GPU, LCD, VideoADC and a Video Interface Unit (VIU); dual DCU support for color TFT displays up to SVGA as detailed in the series documentation.
• Connectivity Dual 10/100 Mbps Ethernet interfaces, USB 2.0 OTG + PHY (1), CAN interface support, multiple UART/SCI, DSPI and I2C ports for broad peripheral connectivity.
• Security Comprehensive on‑chip security features including ARM TrustZone, CAAM (with 16 KB secure RAM per series documentation), High Assurance Boot (HAB), Secure JTAG, SNVS, RTIC, tamper detection, TrustZone address space controller and TrustZone watchdog.
• Analog, Timers and Audio Dual 12‑bit SAR ADC (1 MS/s), dual 12‑bit DAC, motor control/general purpose timers (FTM), periodic interrupt timers (PIT), low‑power timer and multiple audio interfaces (SAI, ESAI, SPDIF) as described for the series.
• System and Reliability Dual DMA controller with 32 channels (with DMAMUX), hardware CRC module, hardware watchdog and external watchdog monitor, 128‑bit unique chip identifier, JTAG and 16‑bit trace port, and multiple low‑power and clock management modes.
• Package and Environmental 364‑LFBGA (17×17) surface mount package, I/O voltage 3.3 V, operating voltage range 3.0 V to 3.6 V (series data), and industrial temperature range −40 °C to 85 °C. RoHS compliant.

Typical Applications

• Industrial Control & Automation Deterministic real‑time control tasks on the Cortex‑M4 with higher‑level management and HMI handled by the Cortex‑A5, suitable for motor control and machine control subsystems.
• Human Machine Interfaces (HMI) Integrated display controllers and graphics acceleration enable color TFT user interfaces and local visualization up to SVGA resolutions.
• Networking & Gateways Dual 10/100 Ethernet, CAN and USB connectivity make the device suitable for industrial gateways, protocol bridging and communications concentrators.
• Imaging & Video Capture Video Interface Unit (VIU) and VideoADC support camera input and local video preprocessing in embedded vision applications.

Unique Advantages

• Heterogeneous dual‑core design: Allows separation of real‑time control and application processing to simplify software partitioning and improve responsiveness.
• Integrated multimedia and display support: Reduces external component count for HMI and video designs by providing on‑chip DCU, GPU and VIU functionality.
• Extensive connectivity: Multiple Ethernet interfaces, USB OTG, CAN, UART, SPI and I2C reduce BOM and simplify system integration for networked embedded systems.
• Robust security foundation: Hardware security blocks including TrustZone, CAAM, HAB and secure JTAG support protected boot and runtime security functions.
• Industrial-ready operation: Specified operating temperature range of −40 °C to 85 °C and surface-mount 364‑LFBGA package support deployment in industrial environments.
• Flexible memory interface: Support for LPDDR2/DDR3 and external NAND/Quad SPI with XIP enables scalable memory configurations for diverse application needs.

Why Choose MVF61NN151CMK50?

The MVF61NN151CMK50 delivers a balanced combination of application processing and real‑time control through its ARM® Cortex®-A5 and Cortex®-M4 cores, comprehensive security features, rich peripheral set and multimedia/display capabilities. Its industrial temperature rating and flexible memory and I/O support make it suitable for embedded and industrial designs that require integration, performance and system‑level security.

This device is appropriate for engineers designing HMI systems, industrial controllers, networked gateways and vision-enabled embedded products that benefit from an integrated, dual‑core MPU with broad connectivity and on‑chip multimedia and security functionality.
