MVF62NN152CMK40

The MVF62NN152CMK40 is a dual-core Vybrid microprocessor IC featuring ARM® Cortex®-A5 and Cortex®-M4 cores in a 32-bit architecture with up to 400 MHz operation. It targets embedded and industrial applications that require combined application processing and real-time control.

With integrated display controllers, graphics acceleration, multiple memory controller options and a range of connectivity interfaces, this Industrial-qualified device delivers a compact, integrated building block for embedded HMI, industrial control and multimedia designs.

Key Features

• Core Architecture  Dual-core ARM® Cortex®-A5 + Cortex®-M4 configuration providing 2-core, 32-bit processing with up to 400 MHz core speed.
• Multimedia and DSP  Includes multimedia co-processors and NEON™ MPE for accelerated media and signal processing tasks.
• Memory Support  Built-in controllers for LPDDR2, DDR3 and general DRAM to accommodate a range of system memory configurations.
• Display & Graphics  On-chip display interface controllers (DCU, GPU, LCD, VideoADC, VIU) and graphics acceleration for HMI and video applications.
• Connectivity & I/O  Two 10/100 Mbps Ethernet ports, USB 2.0 OTG with PHY, and CAN interface provide flexible wired communications.
• Power and I/O  3.3 V I/O compatibility for common embedded system voltage domains.

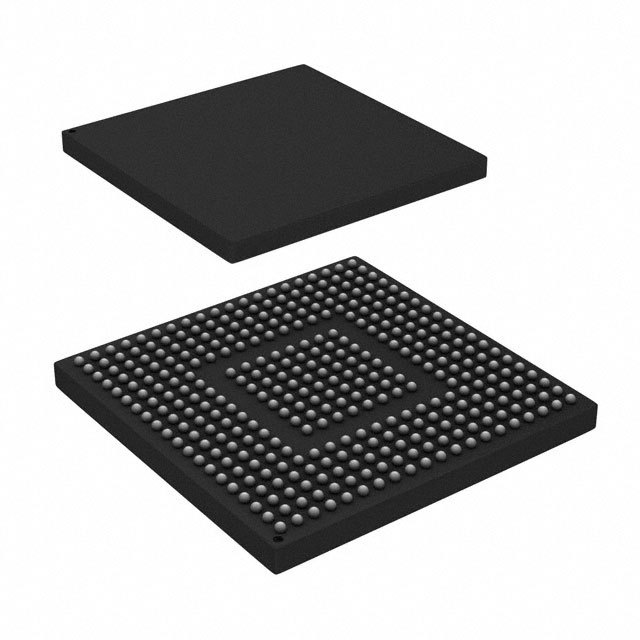

• Package & Mounting  364-LFBGA package (17x17) designed for surface-mount assembly.
• Industrial Qualification & Temperature  Industrial qualification with an operating temperature range of -40 °C to 85 °C.
• Regulatory Compliance  RoHS compliant.

Typical Applications

• Human-Machine Interfaces (HMI)  Use the integrated display controllers and GPU to drive graphical user interfaces and local visualization in embedded panels.
• Industrial Control  Leverage dual-core processing, CAN and Ethernet connectivity for motion control, data acquisition and real-time supervision in industrial systems.
• Multimedia Devices  Apply NEON MPE and multimedia co-processors for audio/video processing, decoding and display pipelines.
• Embedded Gateways & Communication Nodes  Combine Ethernet, USB OTG and CAN to build networked embedded nodes and protocol bridging devices.

Unique Advantages

• Dual-Core Processing:  ARM® Cortex®-A5 plus Cortex®-M4 provides a separation of application and real-time tasks, enabling responsive UIs alongside deterministic control.
• Integrated Display and Graphics:  On-chip DCU, GPU and video interfaces reduce external graphics hardware requirements for streamlined HMI designs.
• Flexible Memory Options:  Support for LPDDR2, DDR3 and DRAM controllers allows designers to choose memory solutions that match performance and cost targets.
• Broad Connectivity:  Dual 10/100 Ethernet, USB 2.0 OTG with PHY and CAN provide multiple wired communication paths for industrial and embedded networking.
• Industrial-Grade Operation:  Industrial qualification and −40 °C to 85 °C operating range support deployment in a wide range of environmental conditions.
• Compact Surface-Mount Package:  364-LFBGA (17x17) package supports high-density board designs while enabling robust assembly.

Why Choose MVF62NN152CMK40?

The MVF62NN152CMK40 balances application-level processing and real-time control by combining ARM® Cortex®-A5 and Cortex®-M4 cores with multimedia acceleration, display subsystems and multiple industrial interfaces. Its support for common DRAM types, 3.3 V I/O and a compact 364-LFBGA package make it suitable for embedded designs where integration and predictable operation across −40 °C to 85 °C are priorities.

Backed by NXP Semiconductors and offered in the MVF62 series, this device is positioned for engineers designing industrial HMI, control and multimedia-enabled embedded systems that require consolidated processing, graphics capability and robust connectivity.

Request a quote or submit inquiry to receive pricing and availability for the MVF62NN152CMK40 and to discuss how it fits your embedded design requirements.
