P1010NXE5HFA

The P1010NXE5HFA is a single-core PowerPC e500v2 microprocessor in NXP’s QorIQ P1 family, delivering a 32-bit 1.0 GHz processing engine in a compact 425-TEPBGA package. Built on a low-power 45 nm implementation, the device combines a trusted security platform with a broad set of high-bandwidth interfaces for cost-sensitive networking, storage and industrial applications.

Targeted use cases include wireless LAN access points, SOHO/SMB routers, Ethernet switch controllers, network attached storage, video surveillance and factory automation, where integration, security and predictable industrial temperature operation are required.

Key Features

• Core and Performance — PowerPC e500v2 single 32-bit core running at 1 GHz, designed for embedded networking and control tasks.
• Memory Subsystem — Integrated DDR3 / DDR3L memory controller supporting 16/32-bit configurations, enabling flexible system memory designs.
• Security Engine (SEC 4.4) — On-chip security coprocessor with multi-algorithm support, hardware accelerators (AES, DES, PKHA, MDHA), RNG and secure fusebox to support authenticated boot and runtime cryptography.
• Networking Interfaces — Three 10/100/1000 Mbps Ethernet ports for multi-port network designs and high-throughput connectivity.
• Storage and Peripheral Interfaces — Two SATA 3 Gbps channels for storage systems and a USB 2.0 controller with PHY for host or device connectivity.
• Additional Interfaces — CAN interface and PCIe/SerDes building blocks (as shown in product block diagram) to support diversified peripheral integration.

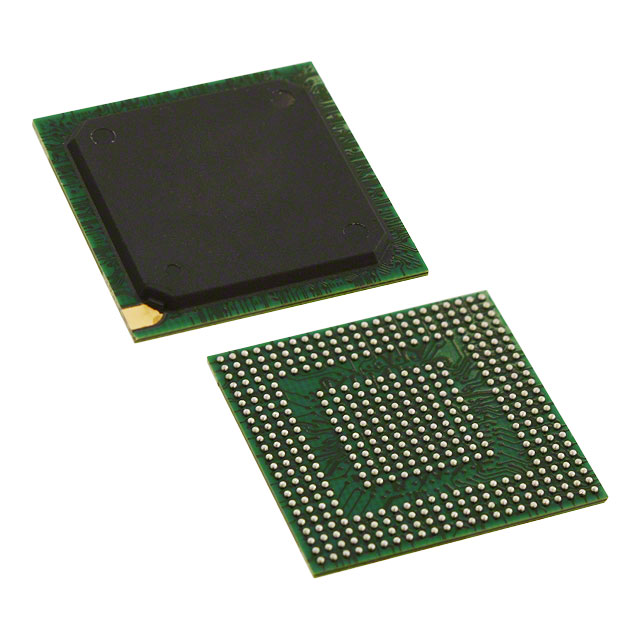

• Package and Temperature — 425-TEPBGA I (19×19 mm) surface-mount package (425-FBGA case) with industrial operating range of −40 °C to 105 °C.
• Compliance — RoHS compliant for environmental and manufacturing alignment.

Typical Applications

• Wireless LAN Access Points — Single-core processing with integrated security and multiple Ethernet ports for managed wireless gateway and access-point control.
• SOHO/SMB Routers and Switch Controllers — Multigate Ethernet and peripheral support suitable for routing, switching control and traffic management.
• Network Attached Storage (NAS) — Dual SATA 3 Gbps channels and RAID-related XOR engine in the security subsystem for secure, connected storage designs.
• Video Surveillance — Secure boot, cryptographic acceleration and multiple network interfaces support secure video distribution and storage.
• Factory Automation and Industrial Control — Industrial temperature rating, CAN interface and compact BGA package enable deployment in rugged control systems.

Unique Advantages

• Highly integrated connectivity: Multiple gigabit Ethernet ports, SATA, USB and CAN reduce external components and simplify board design.
• Dedicated security subsystem: SEC 4.4 with hardware crypto engines and RNG enables authenticated boot and high-throughput cryptography without loading the main CPU.
• Industrial temperature capability: −40 °C to 105 °C operation supports deployment in harsh and factory environments.
• Compact BGA package: 425-TEPBGA I (19×19 mm) surface-mount package minimizes PCB footprint for space-constrained systems.
• Low-power implementation: 45 nm design and single-core architecture deliver a balance of performance and power suitable for cost-sensitive embedded platforms.

Why Choose P1010NXE5HFA?

The P1010NXE5HFA positions itself as a single-core, tightly integrated microprocessor for embedded networking, storage and industrial control applications where security, connectivity and thermal range matter. Its combination of PowerPC e500v2 processing, comprehensive I/O, and a hardware security engine provides a practical platform for designs that require authenticated boot, cryptographic acceleration and multiple high-speed interfaces.

This device is suited to designers and procurement teams building cost-sensitive systems that demand a compact footprint, industrial temperature operation and supplier-backed silicon from NXP Semiconductors. The integrated features reduce BOM and ease system integration while providing deterministic capabilities for long-term deployment.

Request a quote or submit an inquiry to receive pricing, availability and technical support for P1010NXE5HFA. Our team can assist with lead times, volume discounts and design-in guidance.
