R80188-10

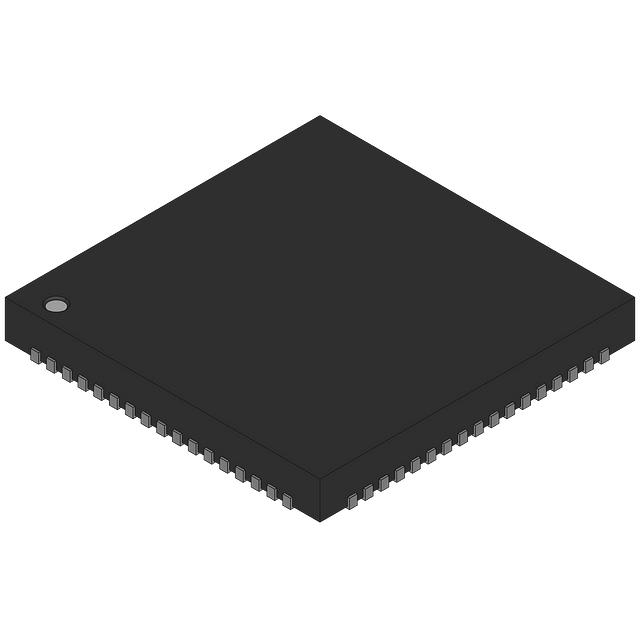

The R80188-10 is a single-core 80188 microprocessor IC from Advanced Micro Devices, designed for embedded applications. It implements a 16-bit core running at 10 MHz with on-chip DMA support and 5 V I/O, packaged in a surface-mount 68-CLCC (24.13×24.13 mm) case.

Targeted at commercial-grade designs, the R80188-10 provides a compact, RoHS-compliant processing option for embedded systems that require straightforward, low-frequency control and data-movement capability within an operating range of 0 °C to 70 °C.

Key Features

• Core and Architecture 80188 core implemented as a single 16-bit processing unit suitable for embedded control tasks.
• Performance 10 MHz operating speed for deterministic, low-frequency processing requirements.
• Power and I/O 5 V I/O signaling for compatibility with legacy and common commercial-level peripherals.
• Interfaces Integrated DMA support to offload direct memory transfers from the CPU core.
• Package and Mounting 68-CLCC surface-mount package with a 24.13×24.13 mm footprint for compact board implementation.
• Operating Range and Grade Commercial grade with an operating temperature range of 0 °C to 70 °C.
• Compliance RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• Embedded control systems — Suitable for designs that require a single 16-bit core running at 10 MHz for control and sequencing tasks.
• Legacy system maintenance — Fits applications needing a direct replacement or continuation of 80188-based boards in a 68-CLCC surface-mount package.
• Commercial electronics — Designed for commercial-grade products operating within 0 °C to 70 °C and using 5 V I/O signaling.

Unique Advantages

• Compact surface-mount package: 68-CLCC (24.13×24.13 mm) form factor minimizes board space while enabling surface-mount assembly.
• Single 16-bit core simplicity: Straightforward architecture reduces software and system complexity for embedded control tasks.
• DMA support: Built-in DMA interface allows efficient offloading of memory transfers from the CPU core.
• 5 V I/O compatibility: Matches common commercial peripheral voltage levels for easier system integration.
• Commercial temperature rating: 0 °C to 70 °C operating range suitable for standard commercial environments.
• RoHS compliant: Complies with common environmental standards for modern manufacturing processes.

Why Choose R80188-10?

The R80188-10 delivers a focused combination of a single 16-bit 80188 core running at 10 MHz, DMA capability, and 5 V I/O in a compact 68-CLCC surface-mount package. Its commercial-grade temperature range and RoHS compliance make it a practical choice for embedded designs that prioritize straightforward processing, reliable data transfer, and compatibility with existing 5 V systems.

This device is well suited to engineers and procurement teams implementing or maintaining embedded applications that require a modest-performance microprocessor with DMA support and a standardized surface-mount footprint.

Request a quote or contact our sales team to discuss availability, lead times, and pricing for the R80188-10. Submit your requirements and our team will respond promptly with a tailored quote.
