R9A06G034VGBA#AC1

The R9A06G034VGBA#AC1 is an ARM® Cortex®-M3 microprocessor IC from Renesas' R9A06G034 series, featuring a single 32‑bit core running at 125 MHz. Designed for industrial embedded applications, the device integrates memory interfaces, wired networking and USB connectivity along with hardware security engines to support connected, secure embedded systems.

Key Features

• Core ARM® Cortex®-M3 single core, 32‑bit architecture operating at 125 MHz for deterministic embedded processing.
• Memory Interfaces Integrated controllers for DDR2 and DDR3 memory to support external system memory configurations.
• Connectivity Gigabit Ethernet (10/100/1000 Mbps) plus two USB 2.0 ports provide wired networking and peripheral connectivity options.
• Display Built‑in LCD display interface controller for driving local user interfaces.
• Hardware Security On‑chip cryptographic support including AES, ARC4, DES, 3DES and hashing algorithms MD5, SHA‑1, SHA‑224, SHA‑256 for secure data handling and communications.

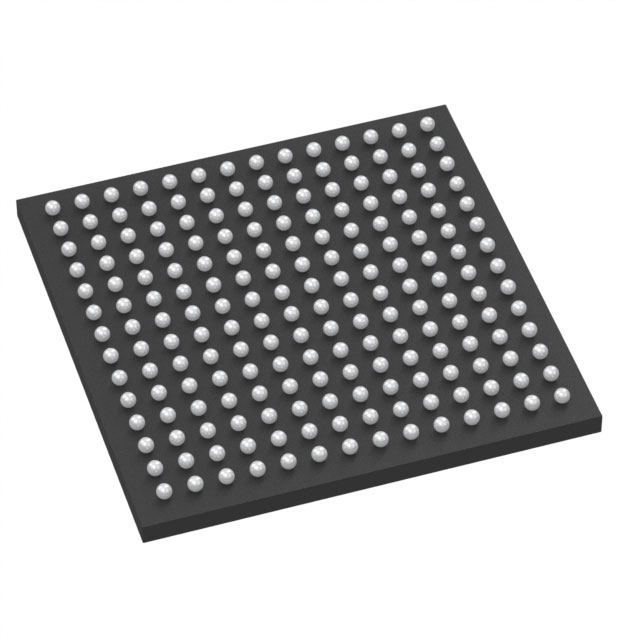

• Package & Mounting 196‑lead LFBGA package (12 × 12 mm) in a surface‑mount form factor for high‑density PCB designs.
• Industrial Qualification & Temperature Range Qualified for industrial applications with an operating temperature range of −40 °C to 85 °C.
• RoHS Compliance Environmentally compliant with RoHS status listed as Compliant.

Typical Applications

• Industrial Control — Real‑time control and monitoring systems leveraging the Cortex‑M3 core and industrial temperature qualification.
• Networked Embedded Devices — Edge devices and appliances that require Gigabit Ethernet and USB 2.0 connectivity.
• Human‑Machine Interfaces — Local display control using the integrated LCD controller for operator panels and display modules.
• Secure Embedded Systems — Applications that need onboard cryptographic functions for data protection and secure communication.

Unique Advantages

• Integrated Connectivity — Gigabit Ethernet and dual USB 2.0 ports reduce the need for external controllers, simplifying system design.
• Flexible Memory Support — DDR2/DDR3 memory controller support enables a range of memory performance and cost tradeoffs.
• Built‑in Security Engines — Multiple hardware cryptography and hashing algorithms provide a foundation for secure application development.
• Industrial‑Grade Reliability — Industrial qualification and a −40 °C to 85 °C operating range support deployment in demanding environments.
• Compact, High‑Density Package — 196‑LFBGA (12 × 12 mm) supports space‑constrained board layouts while providing extensive I/O.
• RoHS Compliant — Meets environmental compliance requirements for modern manufacturing workflows.

Why Choose R9A06G034VGBA#AC1?

The R9A06G034VGBA#AC1 positions itself as a balanced microprocessor solution for industrial embedded designs that require deterministic 32‑bit processing, robust wired connectivity and on‑chip security. Its combination of DDR2/DDR3 memory support, Gigabit Ethernet, dual USB 2.0 and an LCD controller enables integrated system designs with fewer external components.

Manufactured by Renesas and offered within the R9A06G034 series, this device is suited for developers and engineers building industrial control, networked edge devices, HMI modules and secure embedded systems that benefit from industrial qualification and broad connectivity options.

Request a quote or submit a purchase inquiry to start procurement of the R9A06G034VGBA#AC1.
