STM32MP151CAA3

The STM32MP151CAA3 is a microprocessor-class IC in the STM32MP151 series, featuring an ARM® Cortex®-A7 main core and an ARM® Cortex®-M4 coprocessor. It is targeted at embedded applications that require a combination of application processing, real-time control, and a wide set of integrated interfaces.

Designed for high integration, the device combines a 32-bit Cortex‑A7 core, multiple memory controller options and extensive peripheral support to simplify system design and reduce component count.

Key Features

• Core — ARM® Cortex®-A7 main processor, 1 core, 32-bit with a listed core speed of 209 MHz; includes an ARM® Cortex®-M4 coprocessor for real-time and control tasks.
• Memory Controllers — Supports DDR3, DDR3L, LPDDR2 and LPDDR3 memory types to match a range of system memory requirements.
• Display and Graphics — Integrated display interface controllers including HDMI-CEC and LCD; includes graphics acceleration.
• Connectivity — Ethernet support for 10/100 Mbps and Gigabit Ethernet, multiple USB options (USB 2.0 ports and USB 2.0 OTG with PHY), plus CAN interface for robust networked device designs.
• Security — Includes ARM TrustZone (ARM TZ) security feature for hardware-assisted isolation and secure execution.

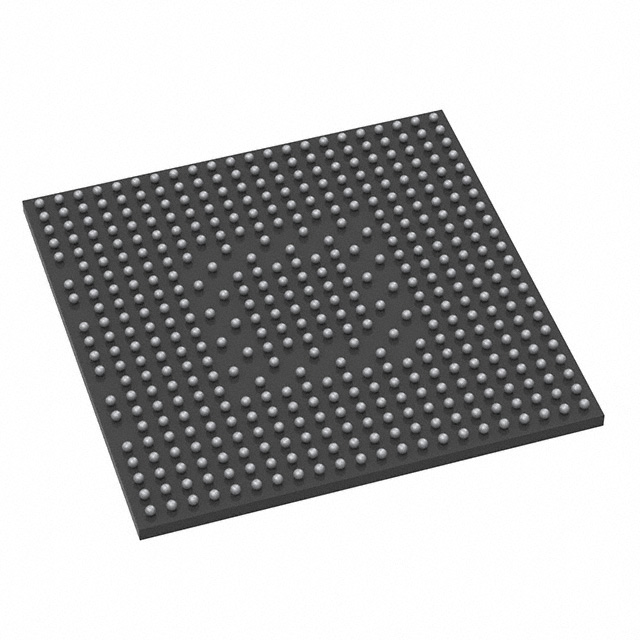

• Package and Mounting — 448-LFBGA (18×18) package in a surface-mount form factor for space-efficient board integration.
• Operating Range — Specified operating temperature range from -40 °C to 125 °C for use across wide-temperature environments.
• Compliance — RoHS compliant.

Typical Applications

• Embedded Systems — Acts as the main application processor in embedded designs that require both application-level processing and real-time control.
• Human-Machine Interfaces (HMI) — Drives LCD and HDMI-CEC display interfaces and leverages graphics acceleration for responsive user interfaces.
• Connectivity Gateways — Provides Ethernet, USB, and CAN interfaces for networked device and gateway applications.
• Control and Monitoring — Combines the Cortex‑A7 application core with the Cortex‑M4 coprocessor for segregated real-time control and monitoring tasks.

Unique Advantages

• Heterogeneous processing: ARM® Cortex®-A7 main core plus ARM® Cortex®-M4 coprocessor enables separation of application and real-time workloads on a single device.
• Flexible memory support: DDR3/DDR3L/LPDDR2/LPDDR3 compatibility allows designers to choose memory technology that fits performance and power targets.
• Rich peripheral set: Integrated Ethernet (10/100 Mbps and GbE), multiple USB ports including OTG with PHY, CAN, and display interfaces reduce external component requirements.
• Security foundation: ARM TrustZone support provides hardware-backed isolation for secure execution environments.
• Wide operating temperature: Rated from -40 °C to 125 °C to accommodate deployments across a broad thermal range.
• Compact package: 448-LFBGA (18×18) surface-mount package balances I/O density and PCB space efficiency.

Why Choose STM32MP151CAA3?

The STM32MP151CAA3 positions itself as a highly integrated microprocessor solution combining an ARM® Cortex®-A7 application core with an ARM® Cortex®-M4 coprocessor, broad memory support, and a comprehensive set of connectivity and display interfaces. Its feature set addresses designs that need both application-level processing and dedicated real-time control while minimizing external components.

This device suits engineering teams building embedded products that require on-chip security features, graphics/display support, and a wide operating temperature range. With standardized memory interfaces and extensive I/O, the STM32MP151CAA3 supports scalable designs and straightforward system integration.

If you would like pricing or availability for the STM32MP151CAA3, request a quote or submit an inquiry and our team will provide a personalized response.
